Electronic Engine Controls- Front

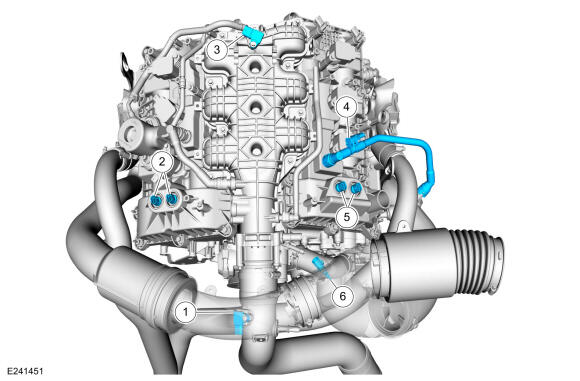

GFD860046Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger Boost Pressure (TCBP) Charge Air Cooler (CAC) Temperature sensor
2 Right hand VCT oil control solenoids
3 MAPT sensor
4 Crankcase Pressure Sensor
5 Left hand VCT oil control solenoids
6 IAT sensor

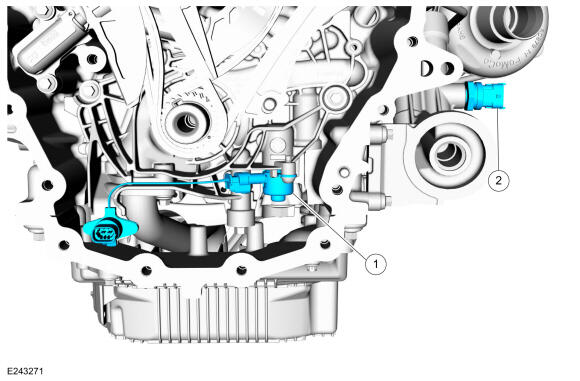

GFD860047Courtesy of FORD MOTOR COMPANY
Item Description
1 Oil Pressure Control Solenoid
2 EOP sensor
