Exhaust Gas Recirculation (EGR) Valve: Removal
- Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
- Remove the RH side air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
- Remove the RH side CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling And Bleeding .
- Remove the A/C compressor outlet line bracket retainer and position aside the A/C compressor outline bracket.

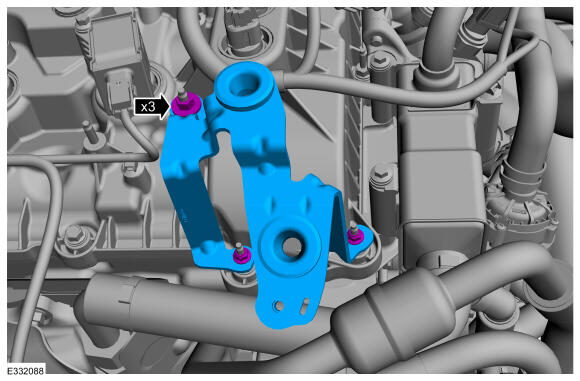

- Remove the CAC tube bracket retainers and remove the CAC tube bracket.
- Disconnect the electrical connectors and wiring harness retainer. Position aside the wiring harness.
- Disconnect the lower coolant hose from the EGR cooler assembly. Refer to: Quick Release Coupling
.
- Disconnect the upper coolant hose from the EGR cooler assembly. Refer to: Quick Release Coupling
.

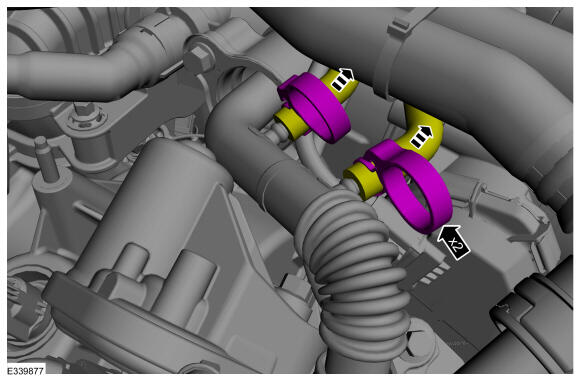

- Loosen the clamps and disconnect the differential pressure sensor hoses.

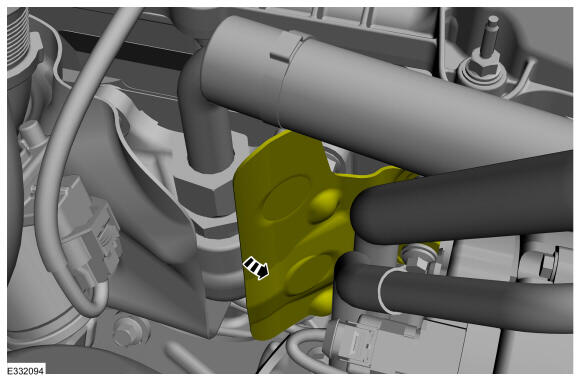

- Position aside the heat shield.

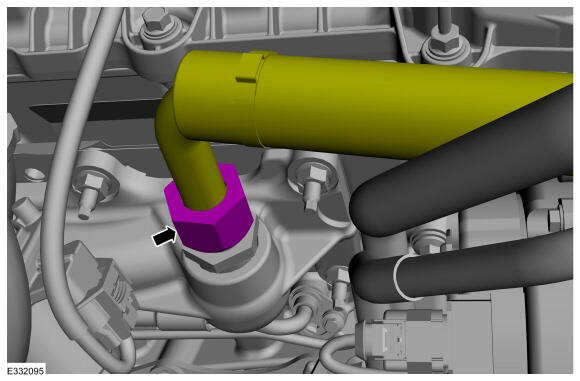

- Remove the EGR inlet tube nut.

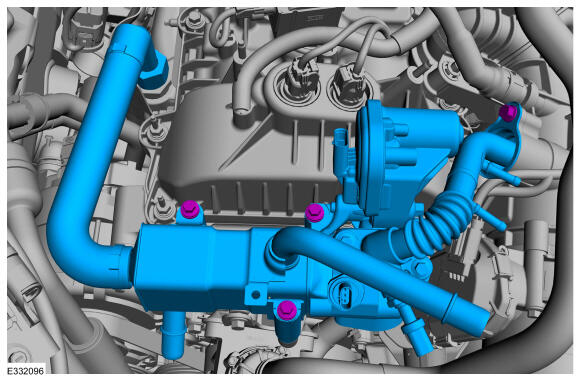

- Remove the EGR assembly.

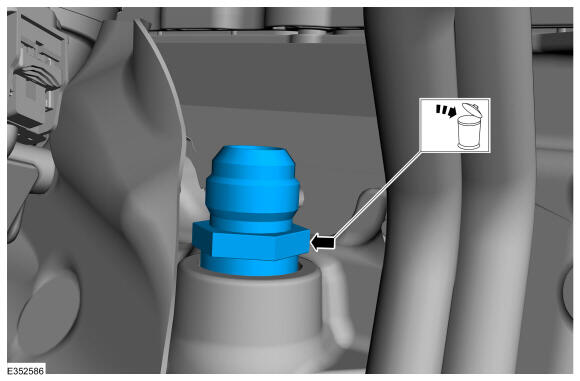

- Remove and discard the EGR to exhaust manifold connector.

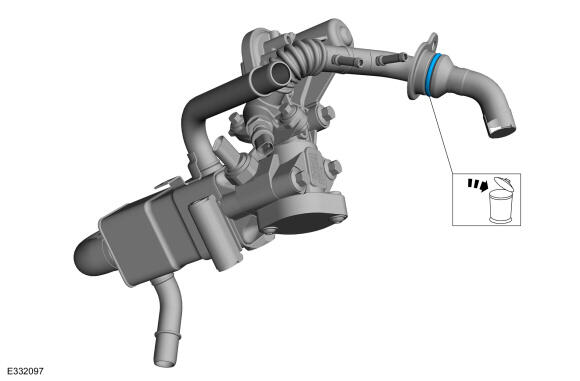

- Remove and discard the EGR outlet tube o-ring.
-

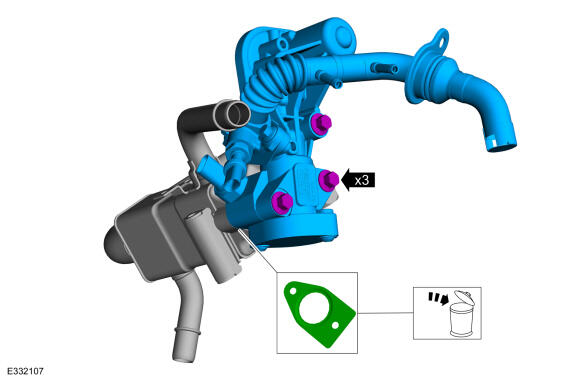

- Remove the bolts and EGR valve assembly.

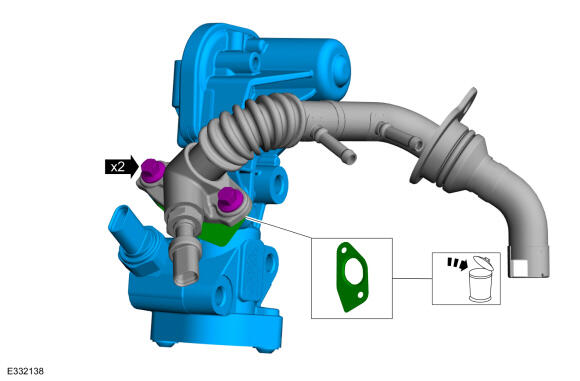

- Remove and discard the EGR valve gasket.
-
- Remove the EGR outlet tube retainers and EGR valve assembly.
- Remove and discard the EGR outlet tube gasket.
