Ignition Coil-On-Plug: Installation

Both sides

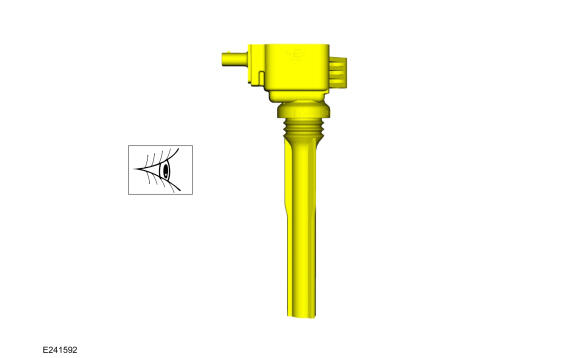

1. Inspect the ignition coil-on-plugs. Replace any damaged ignition coil-on-plugs. Replace any of the ignition coil-on-plug boots with cracks, rips or tears.

   Courtesy of FORD MOTOR COMPANY

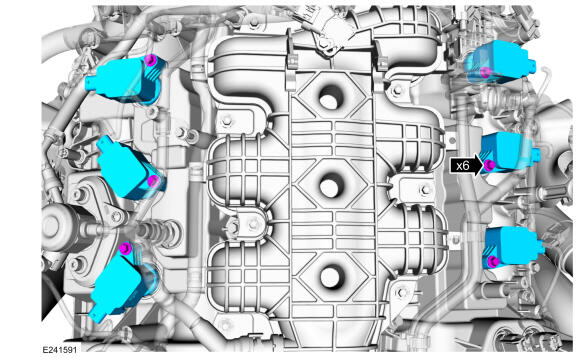

2. 1. Install the ignition coil-on-plugs.
   2. Install and tighten the ignition coil-on-plug retainers.

      Torque: Stage 1: 7 Nm Stage 2: 50°

   Courtesy of FORD MOTOR COMPANY

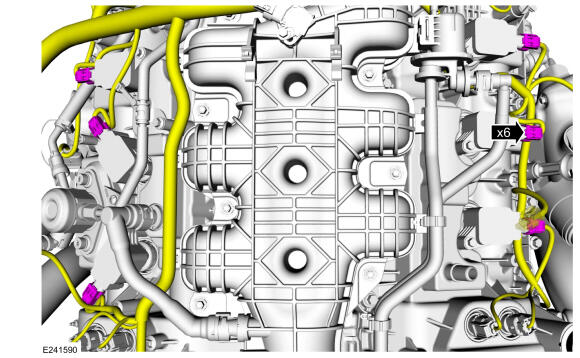

3. Connect the ignition coil-on-plug electrical connectors.

   Courtesy of FORD MOTOR COMPANY

   Left side

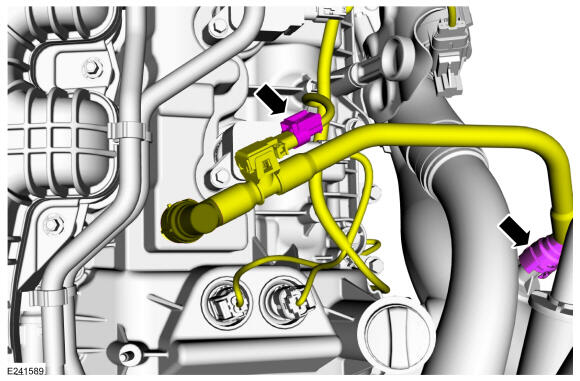

4. Connect the crankcase ventilation tube, then connect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

   Both sides

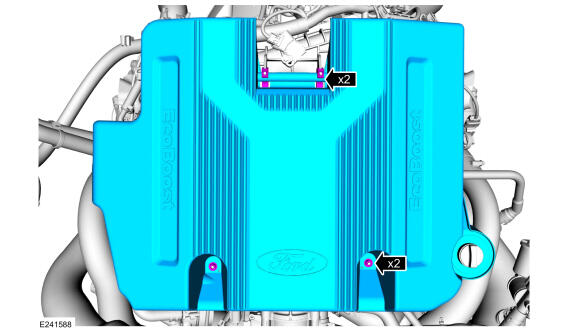

5. Install the engine appearance cover into the rear retainers, then install and tighten the engine appearance cover retainers.

   Torque: 11 Nm
