Transfer Case Control Module (TCCM): Removal

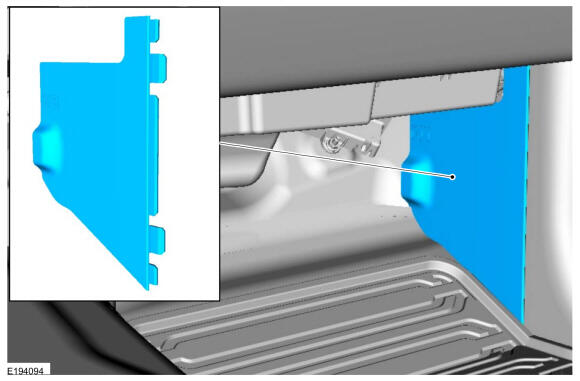

  1. Remove the CJB cover.
    GFD860746Courtesy of FORD MOTOR COMPANY

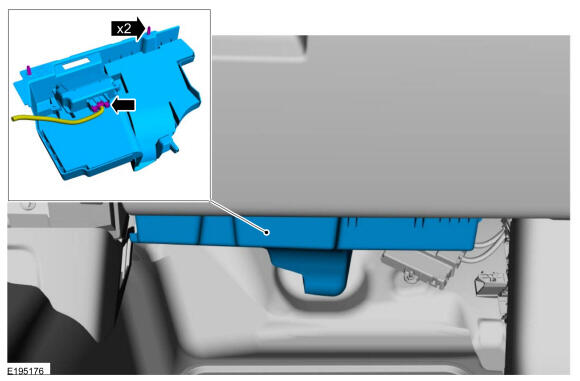

  2. Remove and disconnect the lower access panel.
    GFD860747Courtesy of FORD MOTOR COMPANY

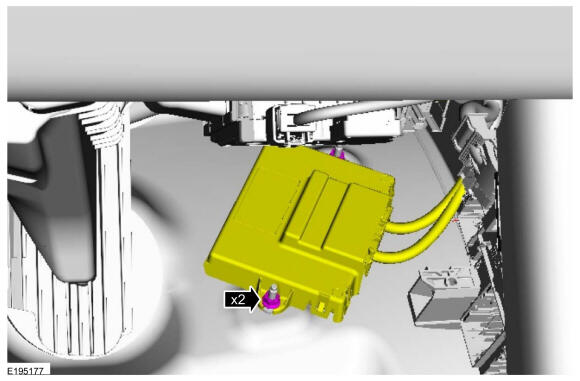

  3. NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LHTCCM nut when removing the TCCM.

    Loosen the LH (Left-hand) TCCM nut and remove the RH (right-hand) TCCM nut.

    Torque: 7 Nm

    GFD860748Courtesy of FORD MOTOR COMPANY

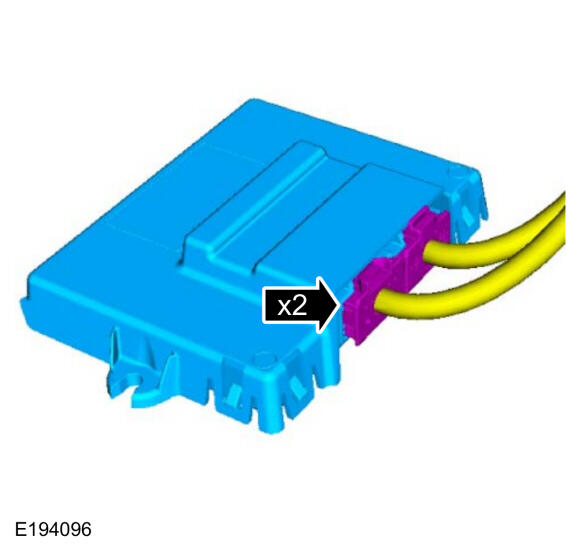

  4. Disconnect the electrical connectors and remove the TCCM.
GFD860749Courtesy of FORD MOTOR COMPANY
