Control Module HVAC

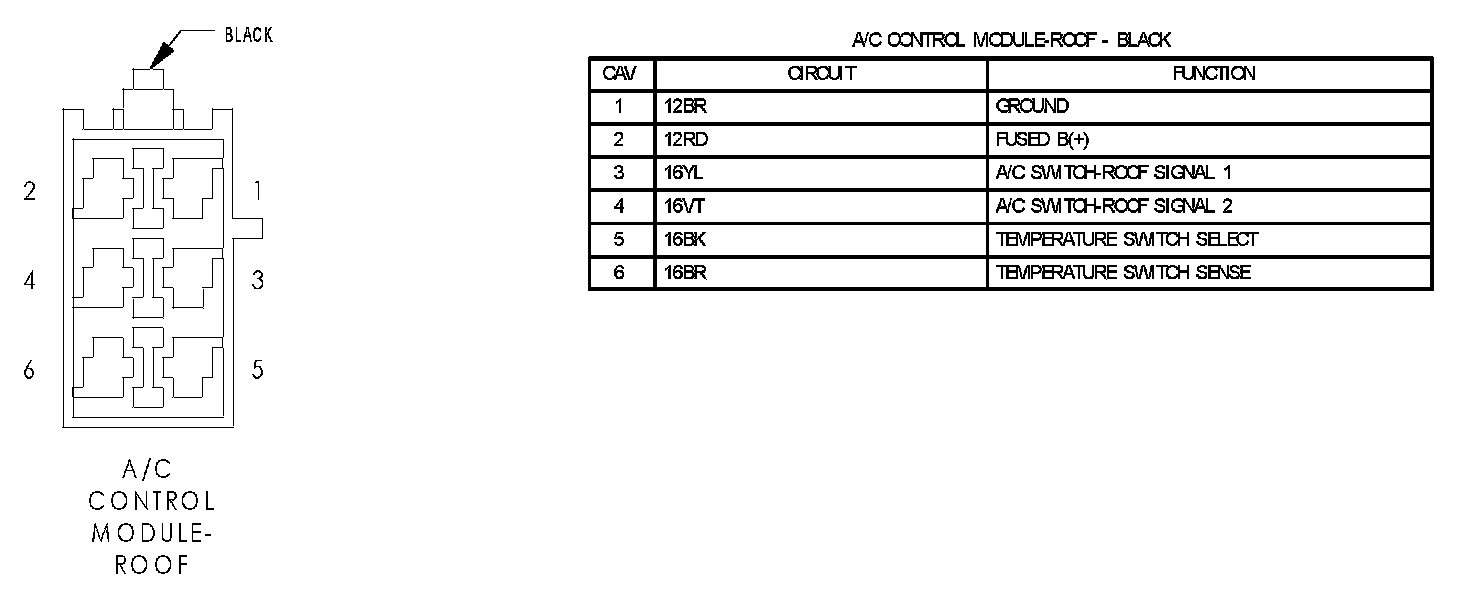

A/C Control Module Roof:

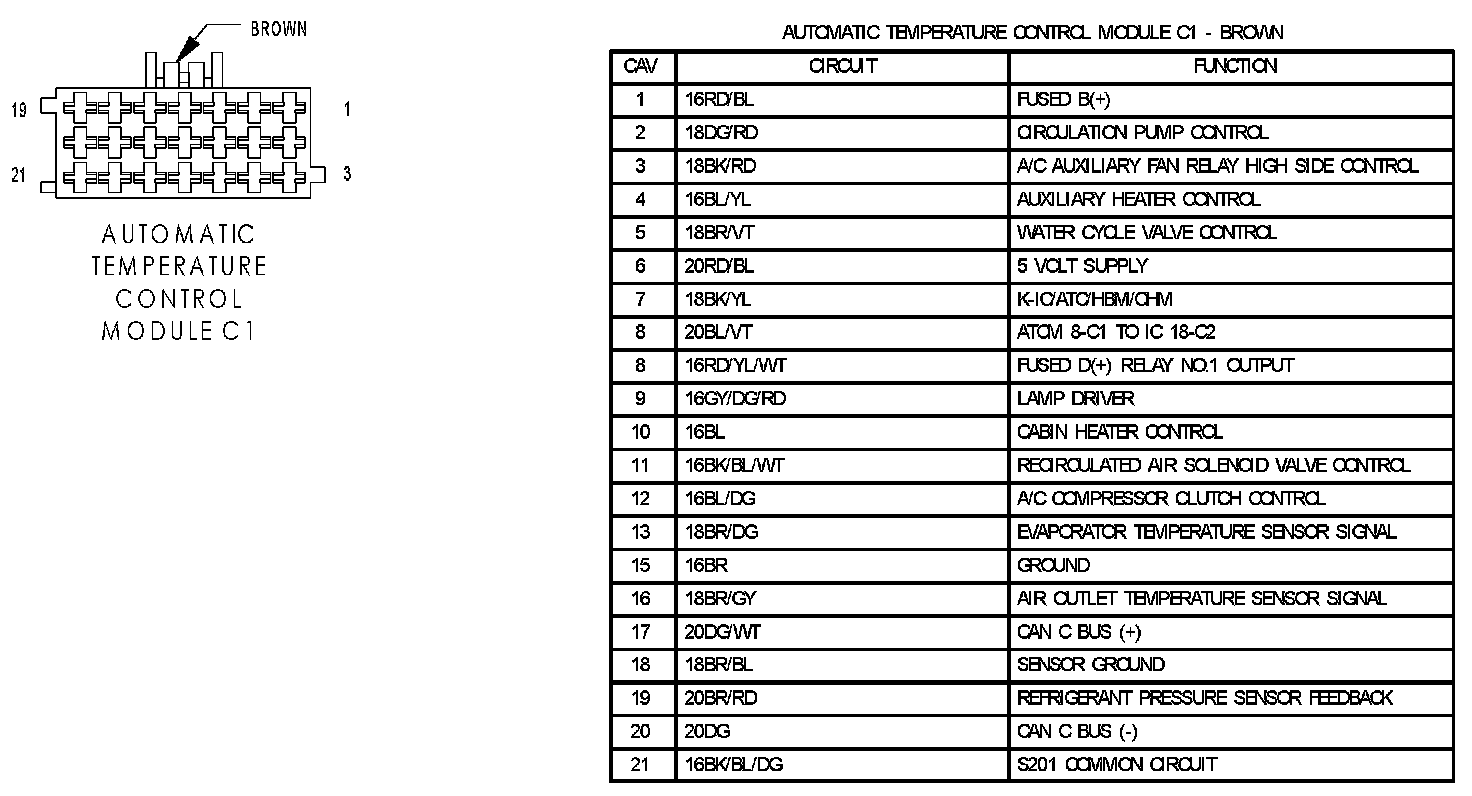

Automatic Temperature Control Module C1:

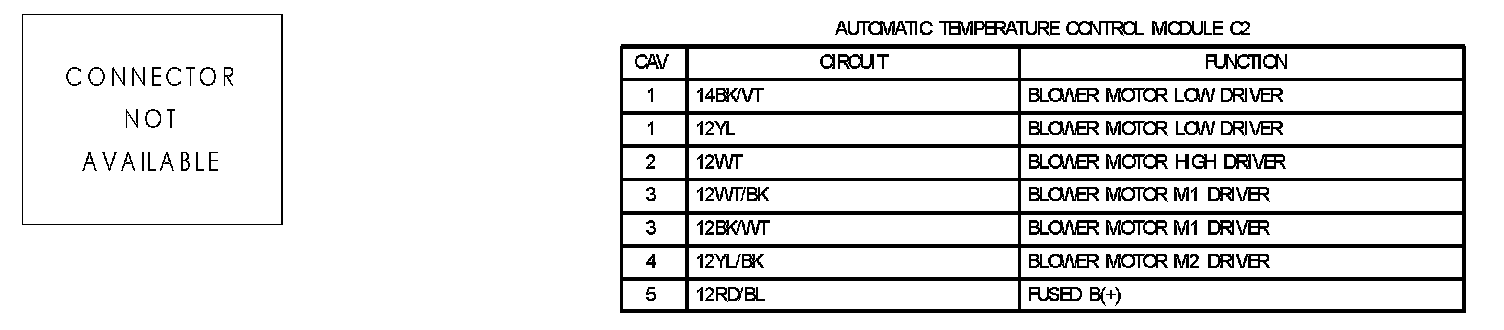

Automatic Temperature Control Module C2:
