Procedures

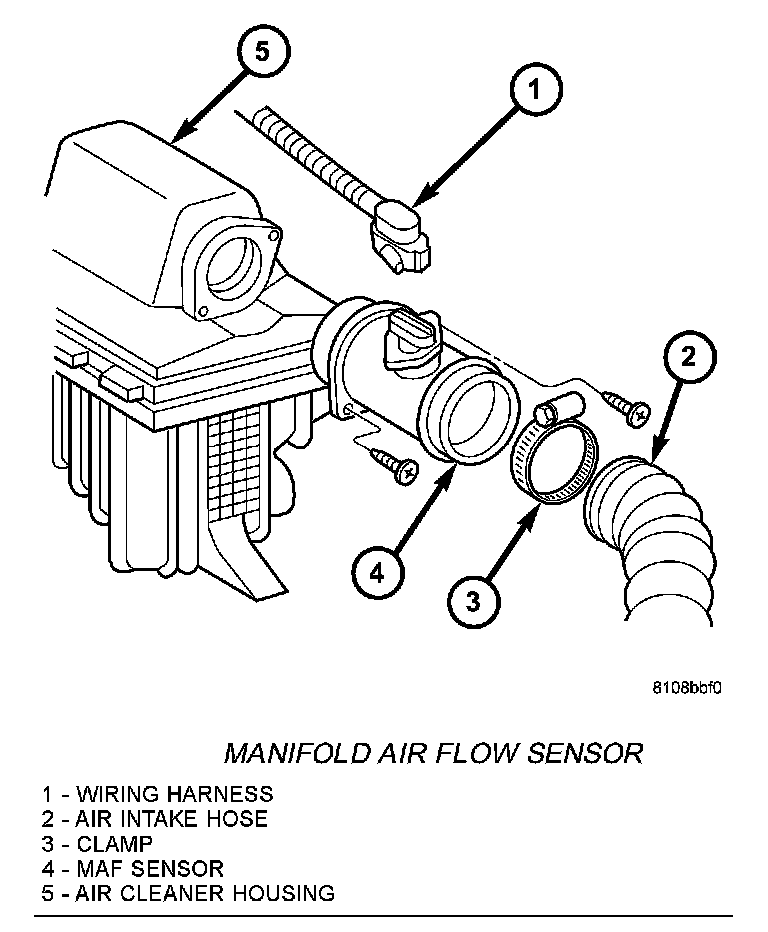

REMOVAL
1. Disconnect the negative battery cable.
2. Detach the air hose at the Manifold Air Flow (MAF) sensor
3. Unplug the MAF wiring harness connector.
4. Remove the screws retaining the MAF sensor to the air cleaner housing, and remove MAF sensor.

INSTALLATION

Manifold Air Flow Sensor:

1. Position the MAF sensor to air cleaner housing and install the retaining screws.
2. Connect the air intake hose to the MAF sensor and tighten clamp.
3. connect the MAF wiring harness connector.
4. Connect negative battery cable.
