Connector Views

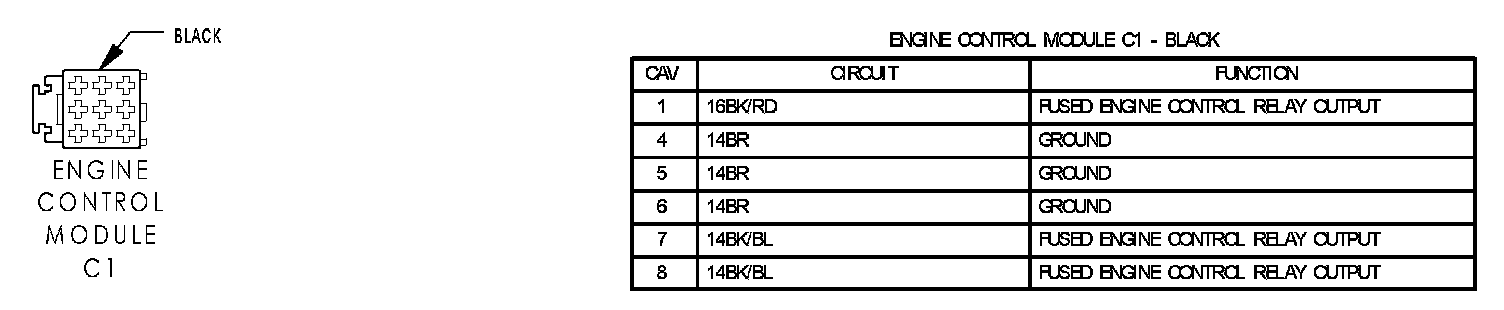

Engine Control Module C1:

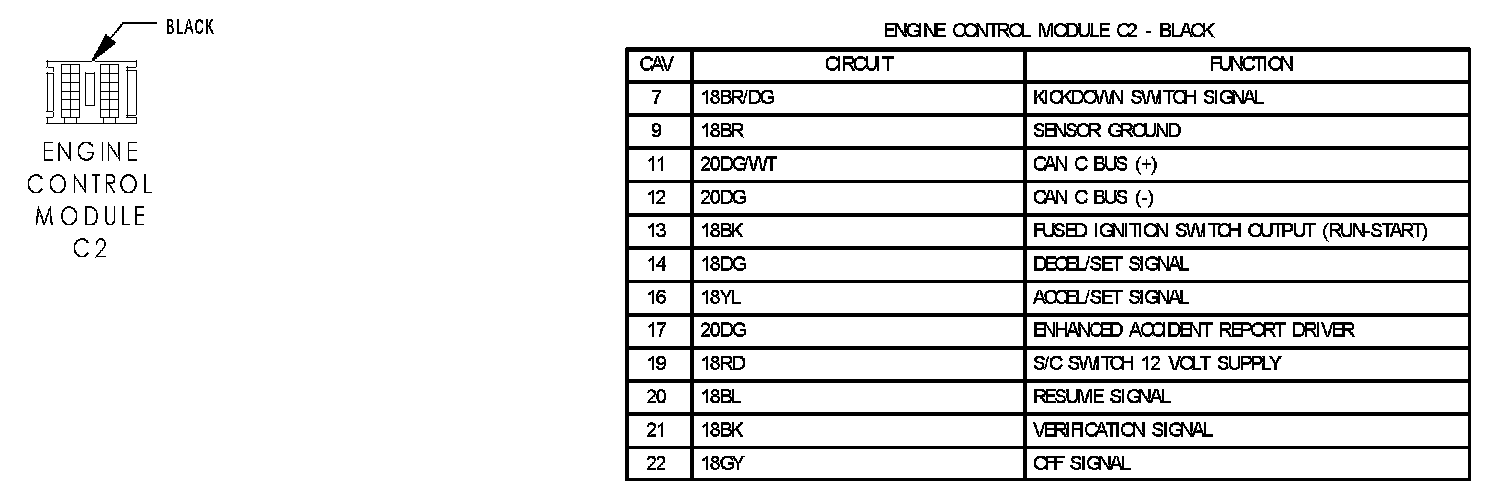

Engine Control Module C2:

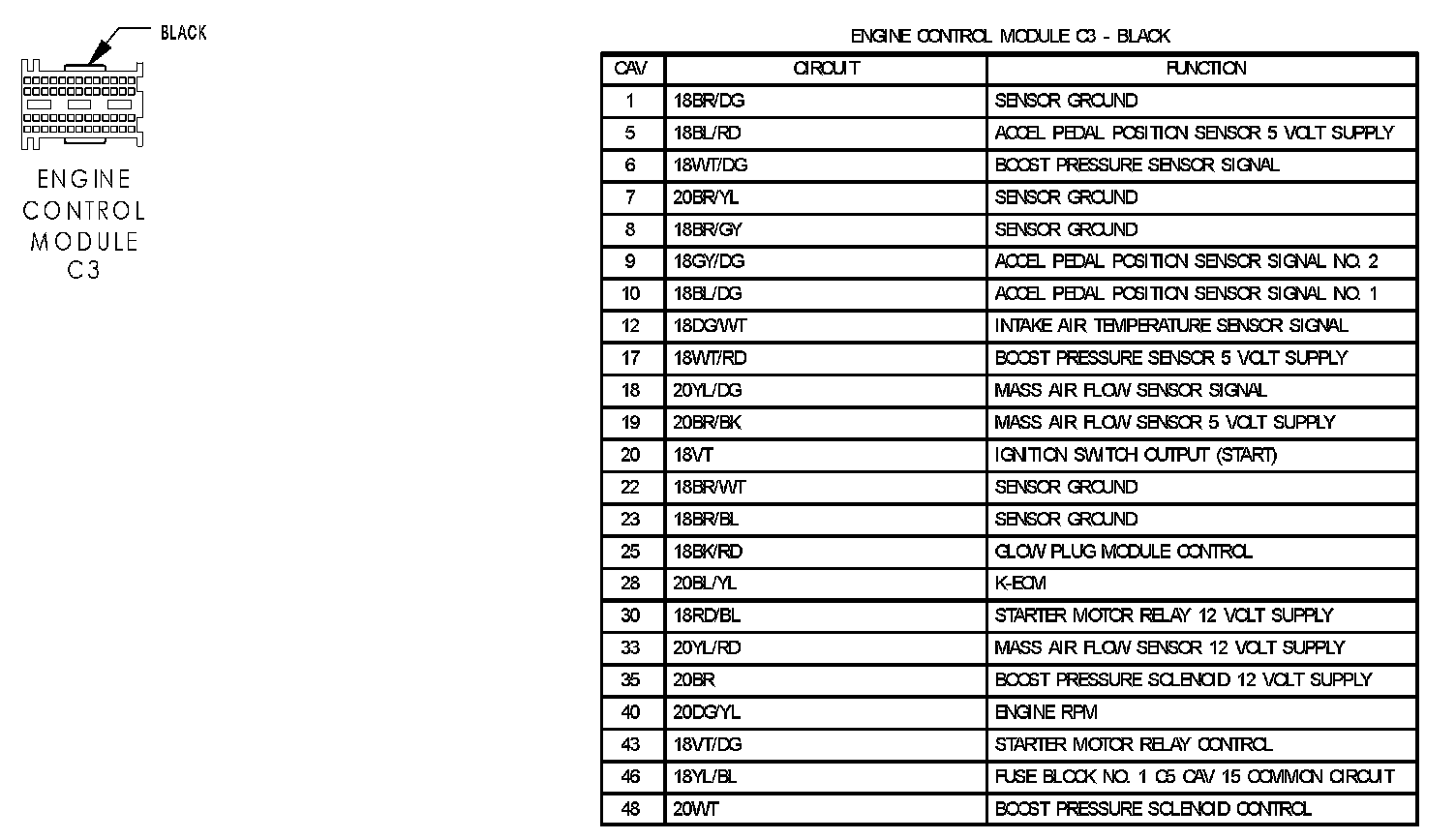

Engine Control Module C3:

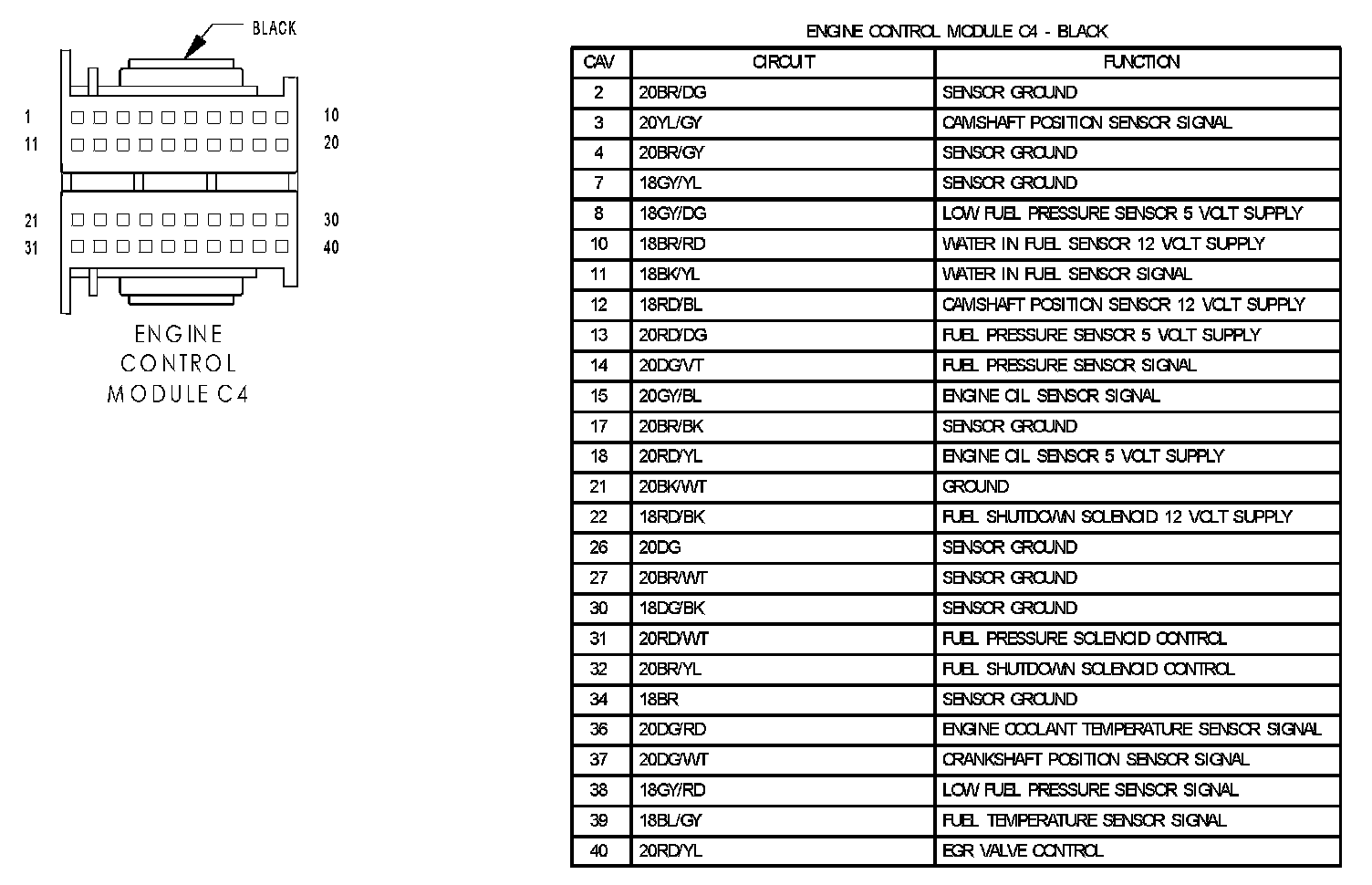

Engine Control Module C4:

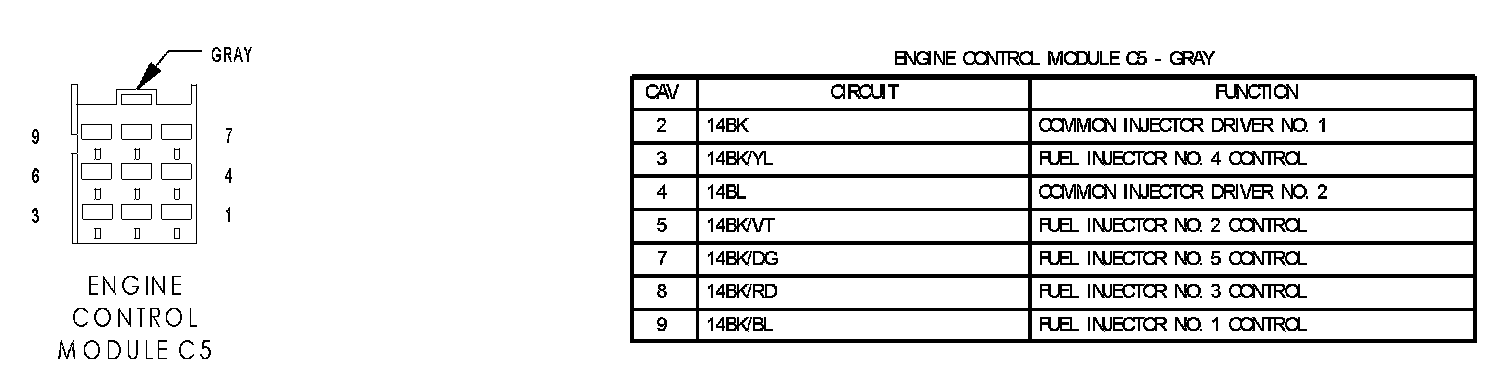

Engine Control Module C5:
