Fuel Level Sensor: Description and Operation

FUEL LEVEL SENDING UNIT/SENSOR

Fuel Gauge Sending Unit:

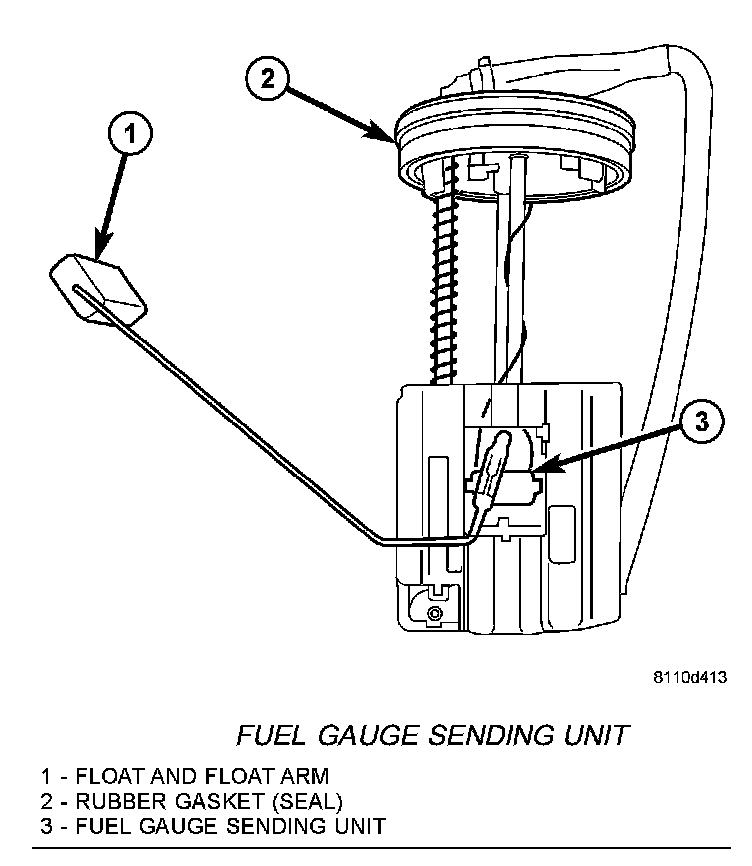

The fuel gauge sending unit (fuel level sensor) is attached to the side of the fuel tank module. The sending unit consists of a float, an arm, and a variable resistor track (card).
