Glow Plug: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Use special tool #9286 pliers to unplug the glow plug wiring harness connector(s).

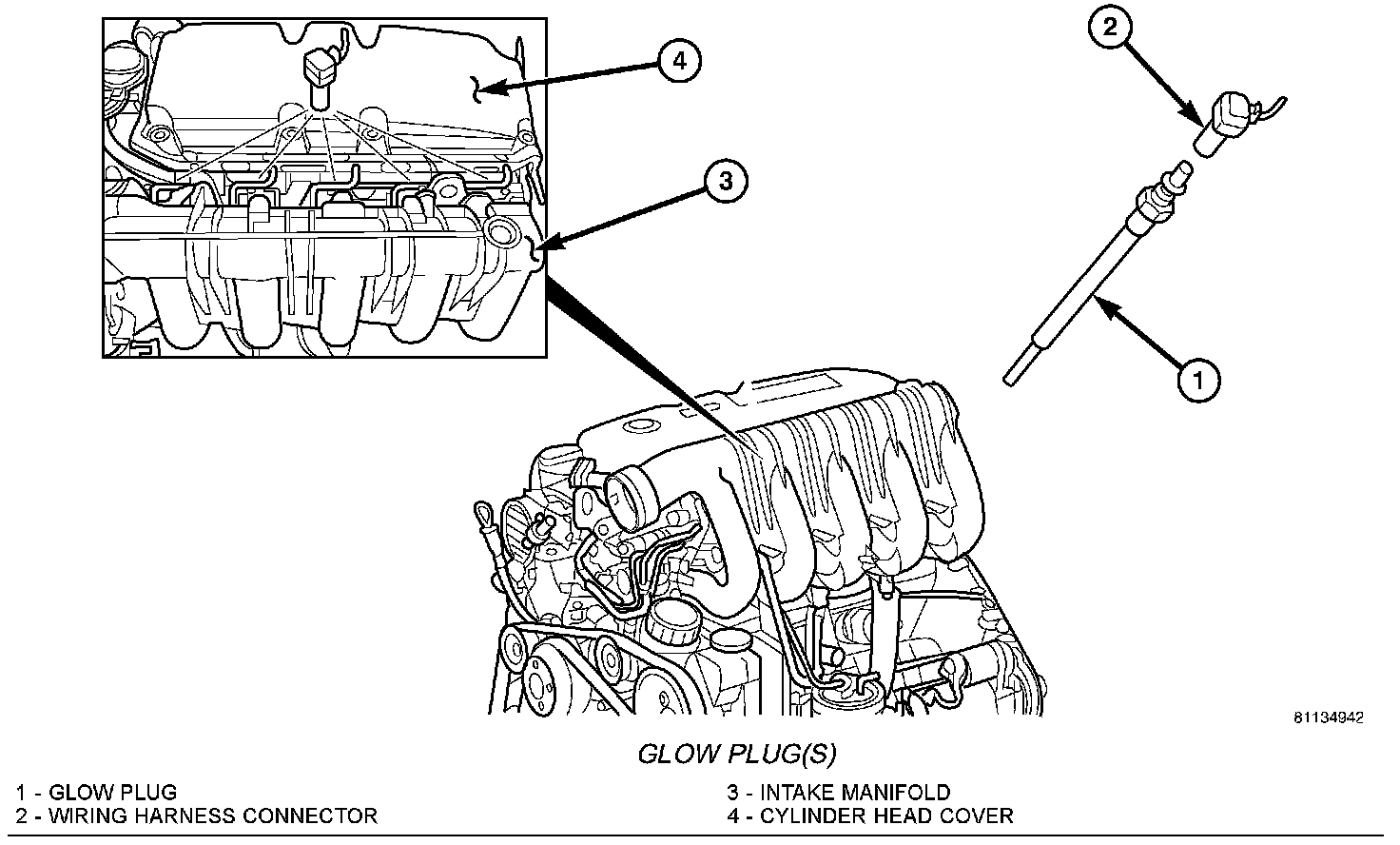

Glow Plug(s):

3. Remove the glow plug(s).

INSTALLATION
1. Screw glow plug(s) into cylinder head and tighten to 12 N.m (115 lbs. in).
2. Connect the glow plug wiring harness connector(s)
3. Connect negative battery cable.
