Timing Chain

Timing Chain, Chain Tensioner
Bolt-Camshaft Sprocket to Exhaust Camshaft 18 Nm (159 inch lbs.)
Bolt-Intermediate Gear of High Pressure Pump to Cylinder Head 40 Nm (29.5 ft. lbs.)
Timing Chain Tensioner to Timing Case Cover 80 Nm (59 ft. lbs.)




Timing Case Cover
Install the M8 bolts of cylinder head on timing case cover.

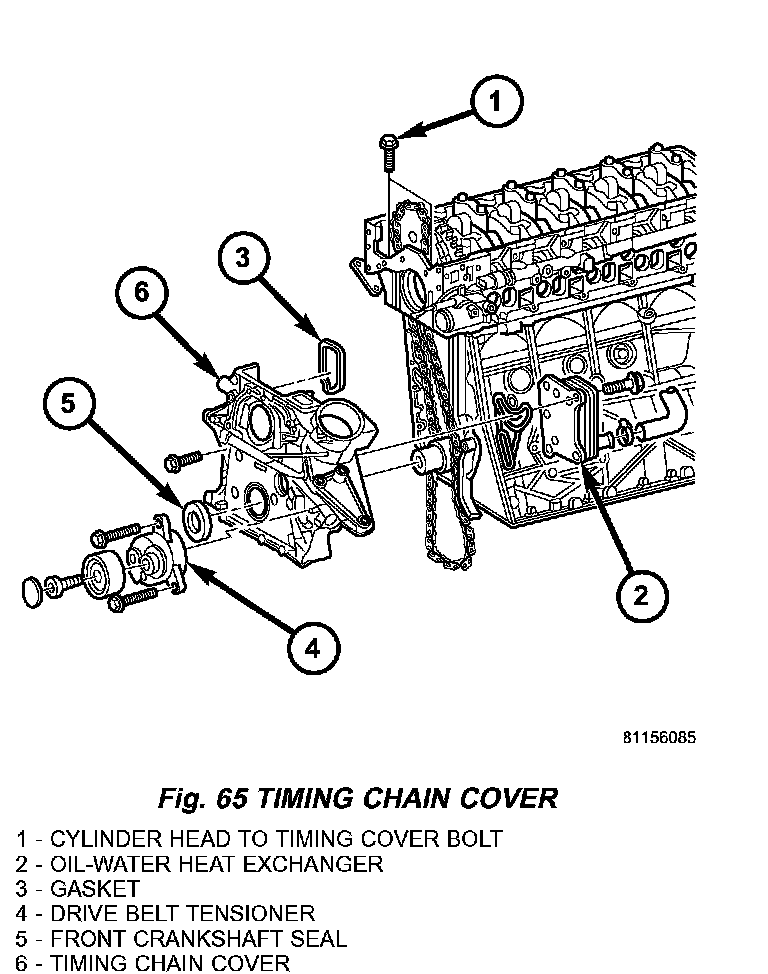

Tighten bolts to 20 Nm (177 inch lbs.) (Fig. 65).
