Fuse Block

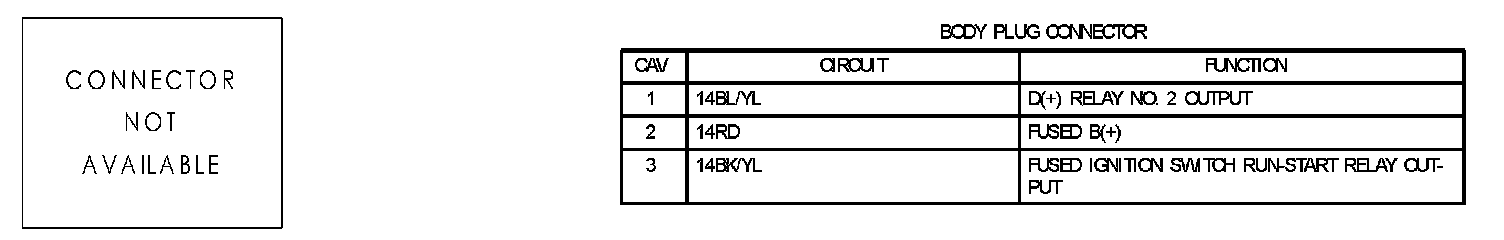

Body Plug Connector:

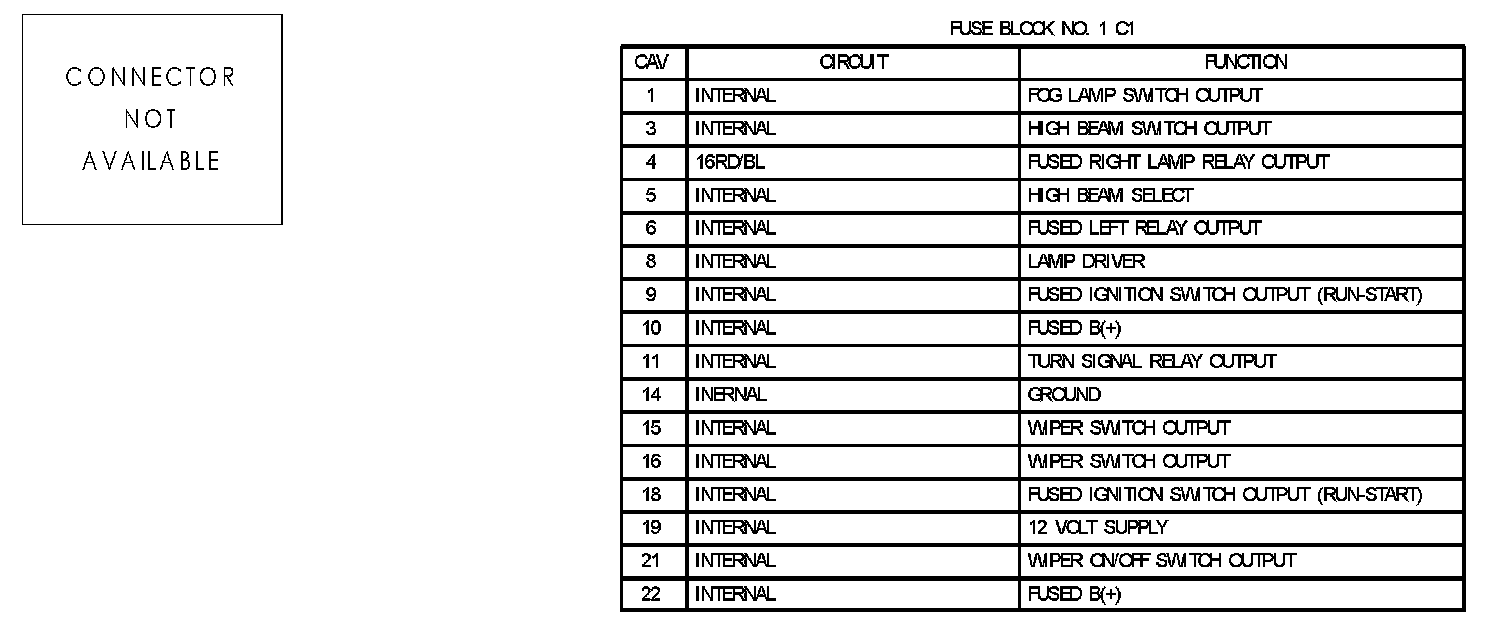

Fuse Block No.1 C1:

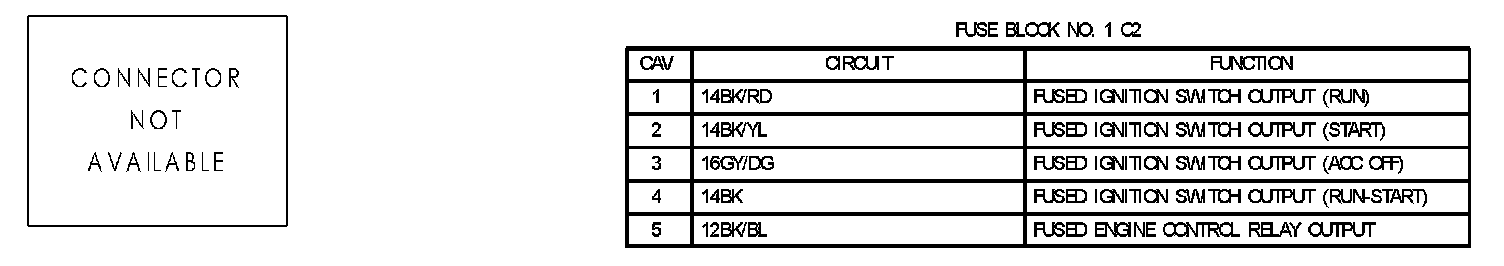

Fuse Block No.1 C2:

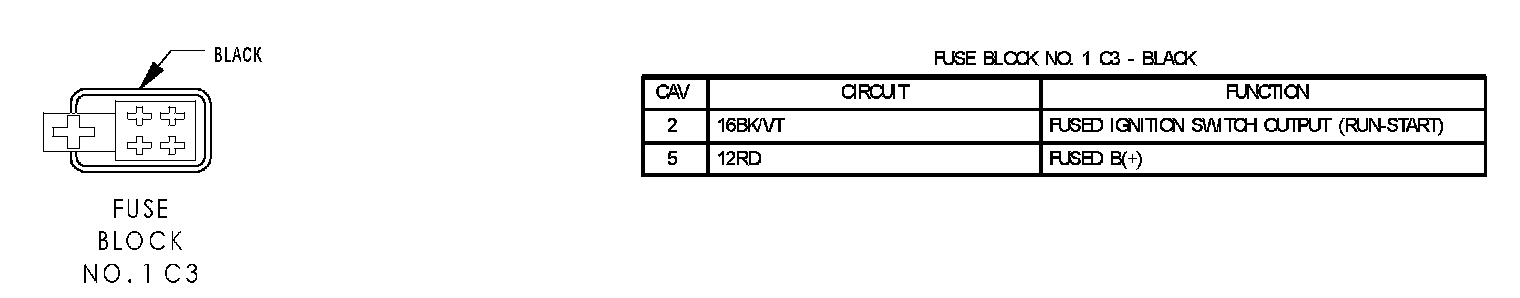

Fuse Block No.1 C3:

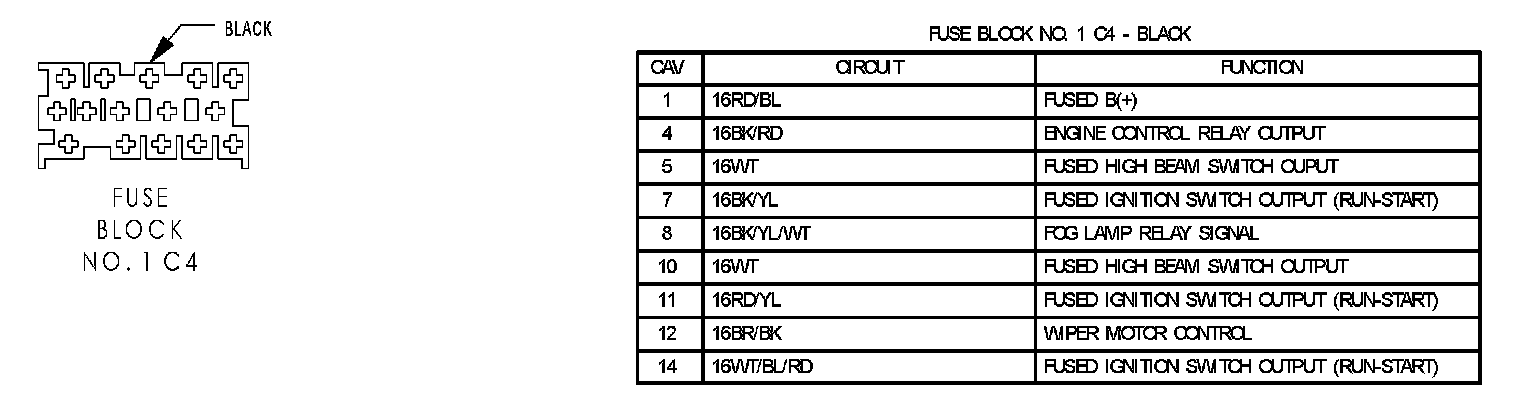

Fuse Block No.1 C4:

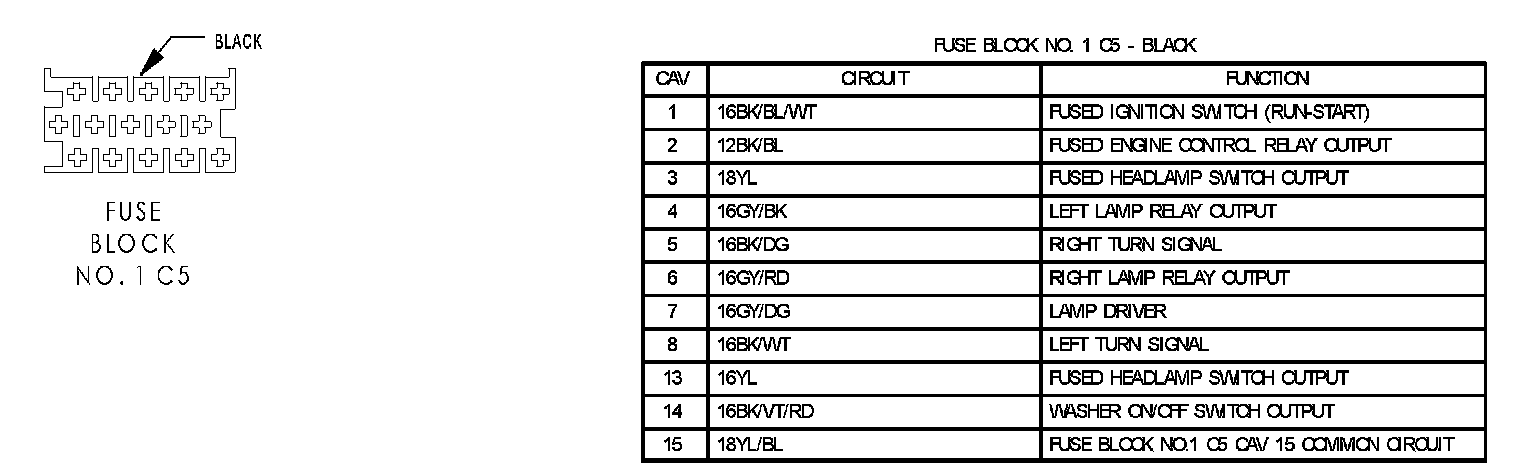

Fuse Block No.1 C5:
