Mechanical Specifications

A/C SYSTEM

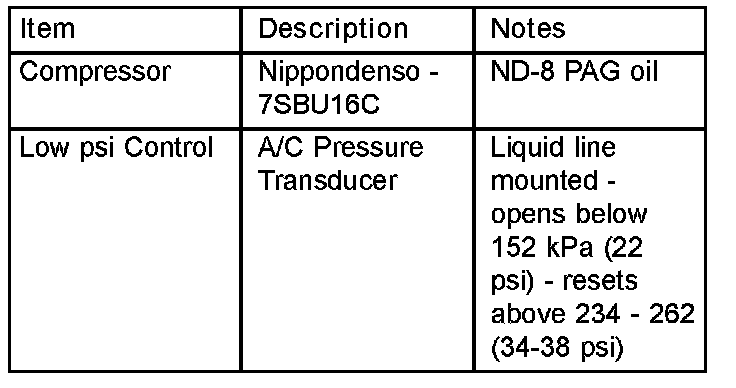

A/C System Part 1:

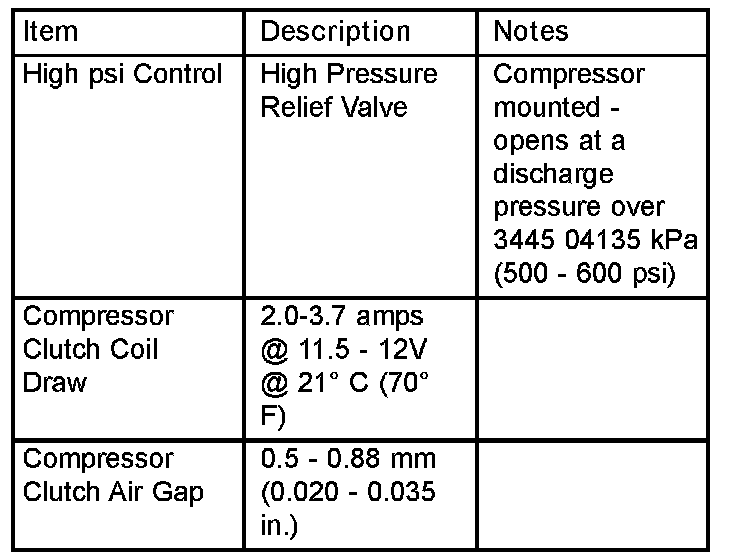

A/C System Part 2:

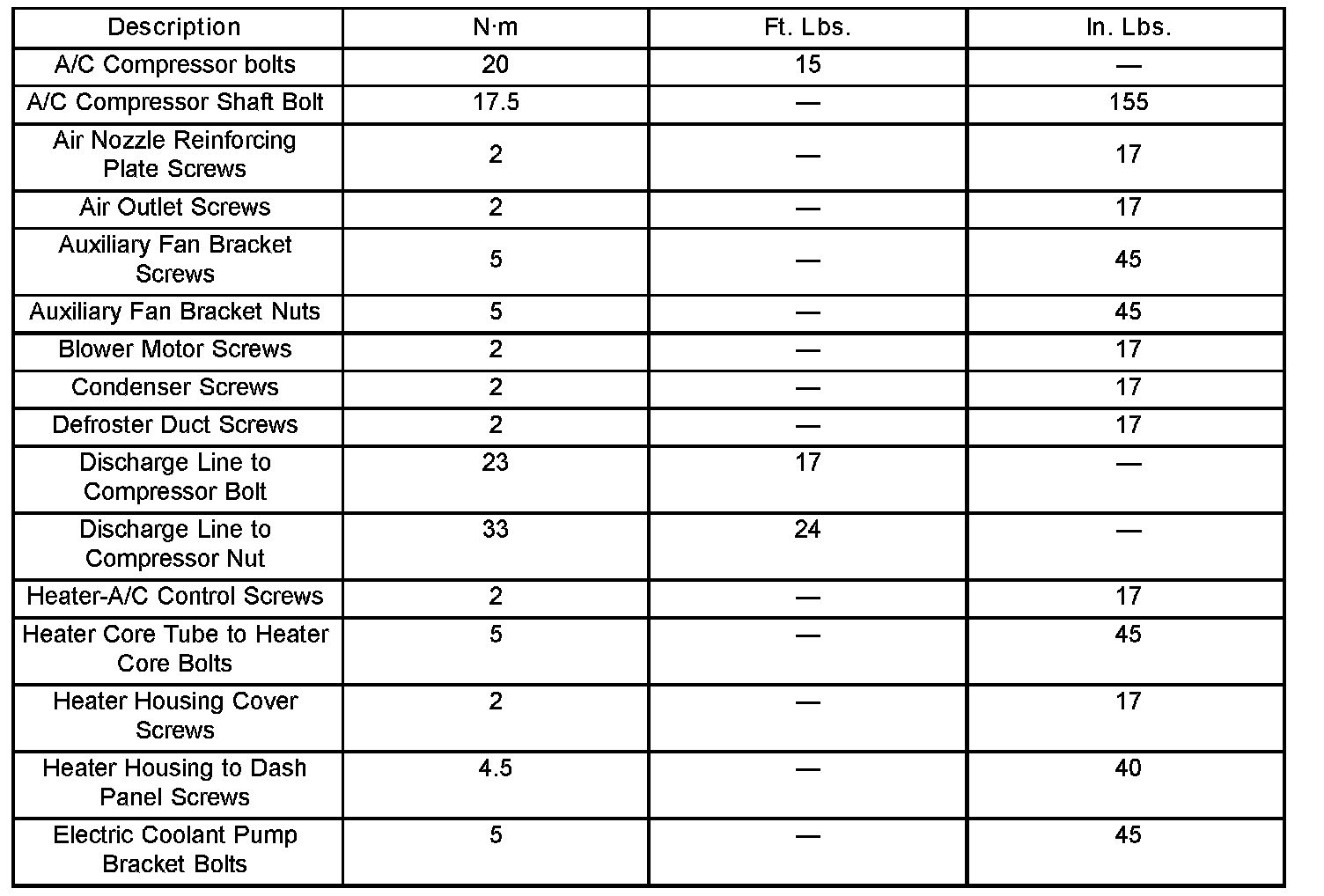

Torque Specifications Part 1:

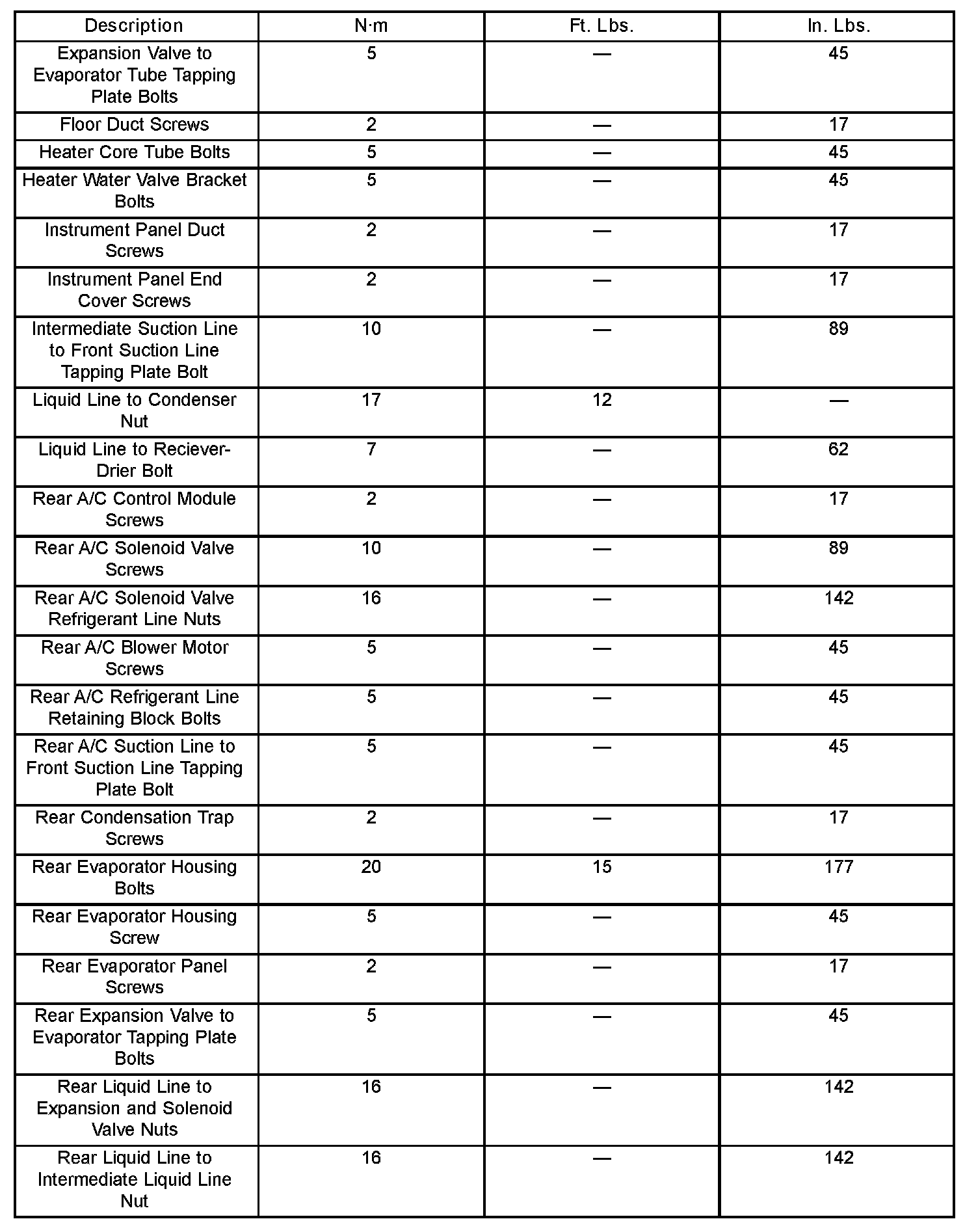

Torque Specifications Part 2:

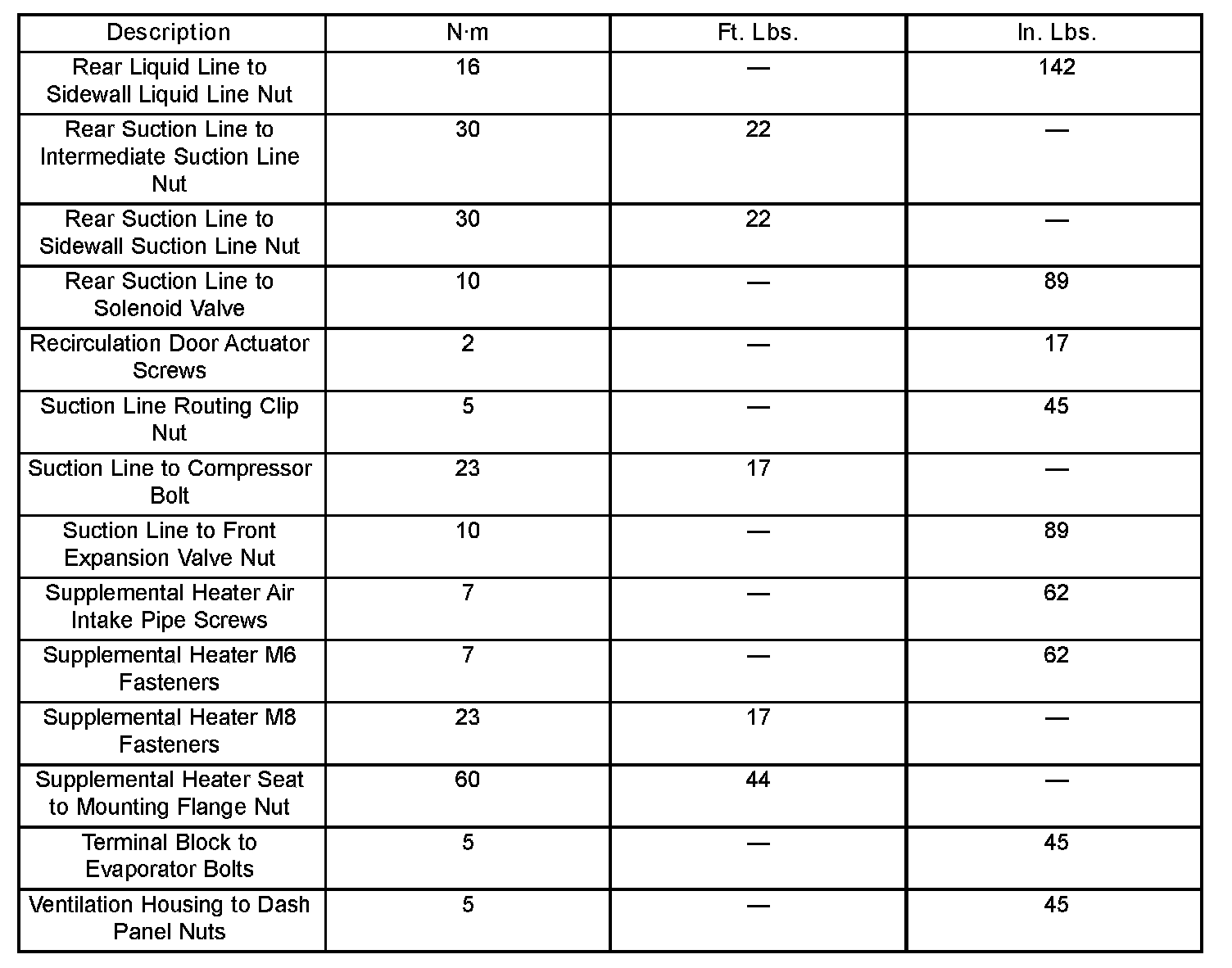

Torque Specifications Part 3:

The R-134a refrigerant system charge capacity for this vehicle can be found on the underhood specification label for the A/C unit.
