Power Distribution Center

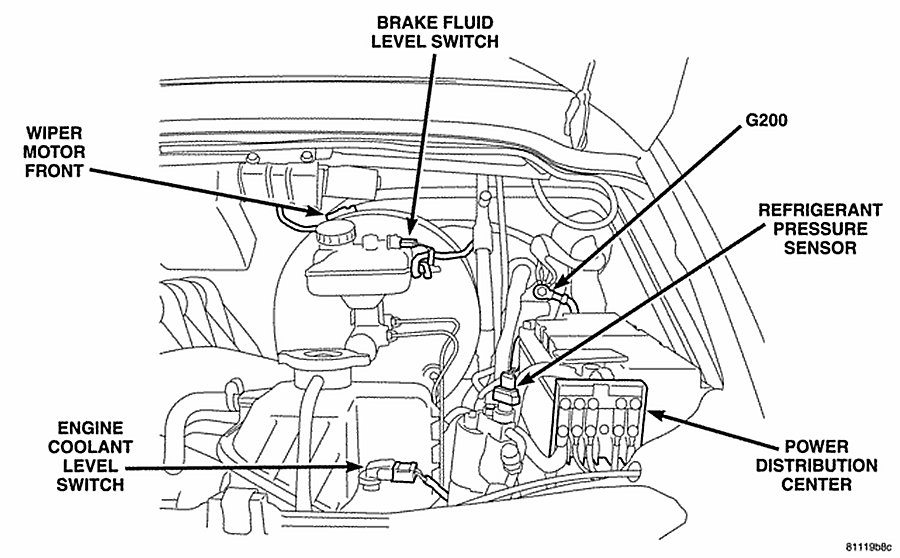

Power Distribution Center (PDC) is located in the left front corner of the engine compartment on the battery positive cable.
