Base Brake General Specifications

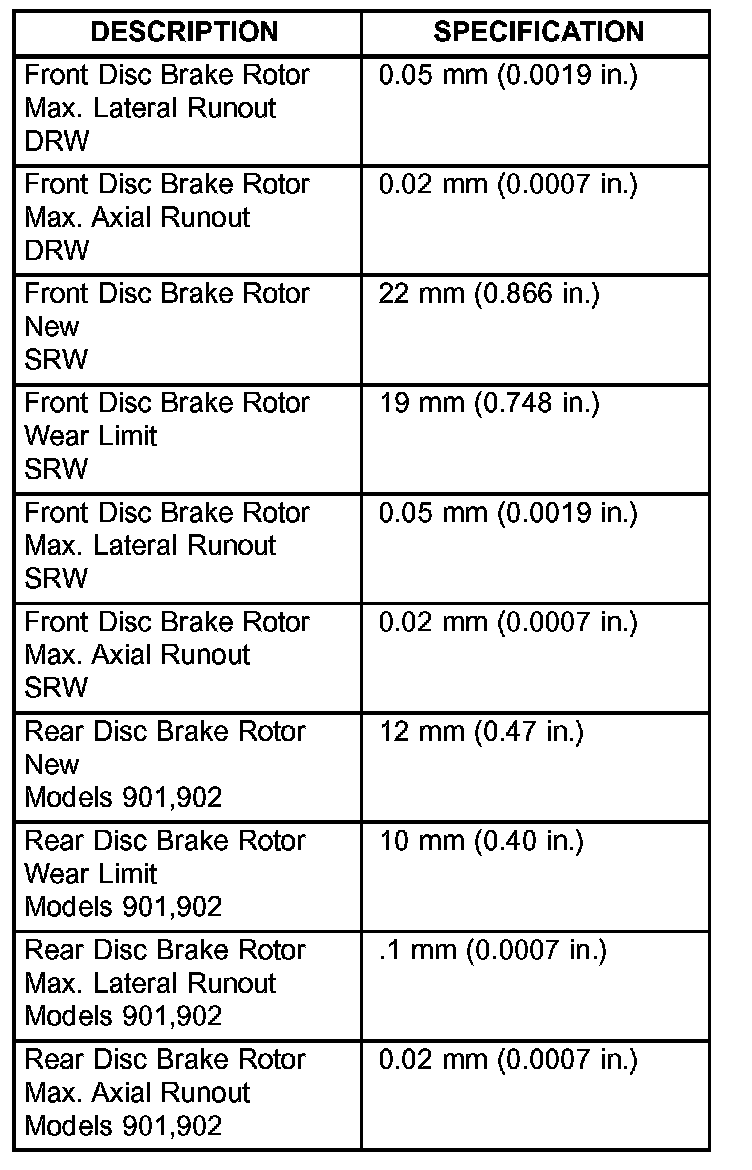

General Specifications, Part 1:

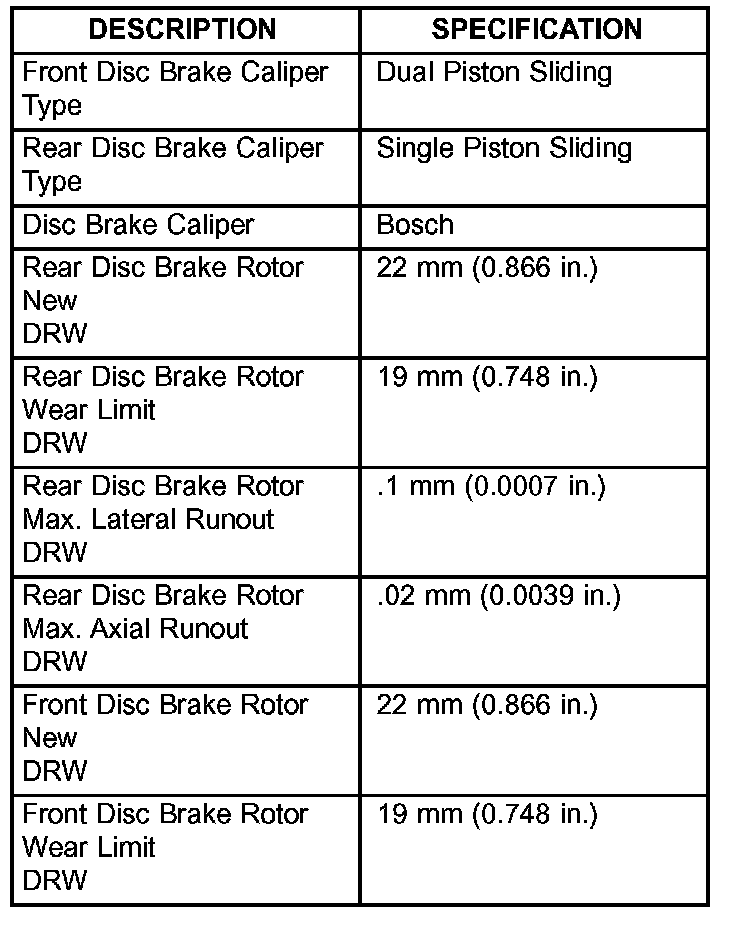

General Specifications, Part 2:

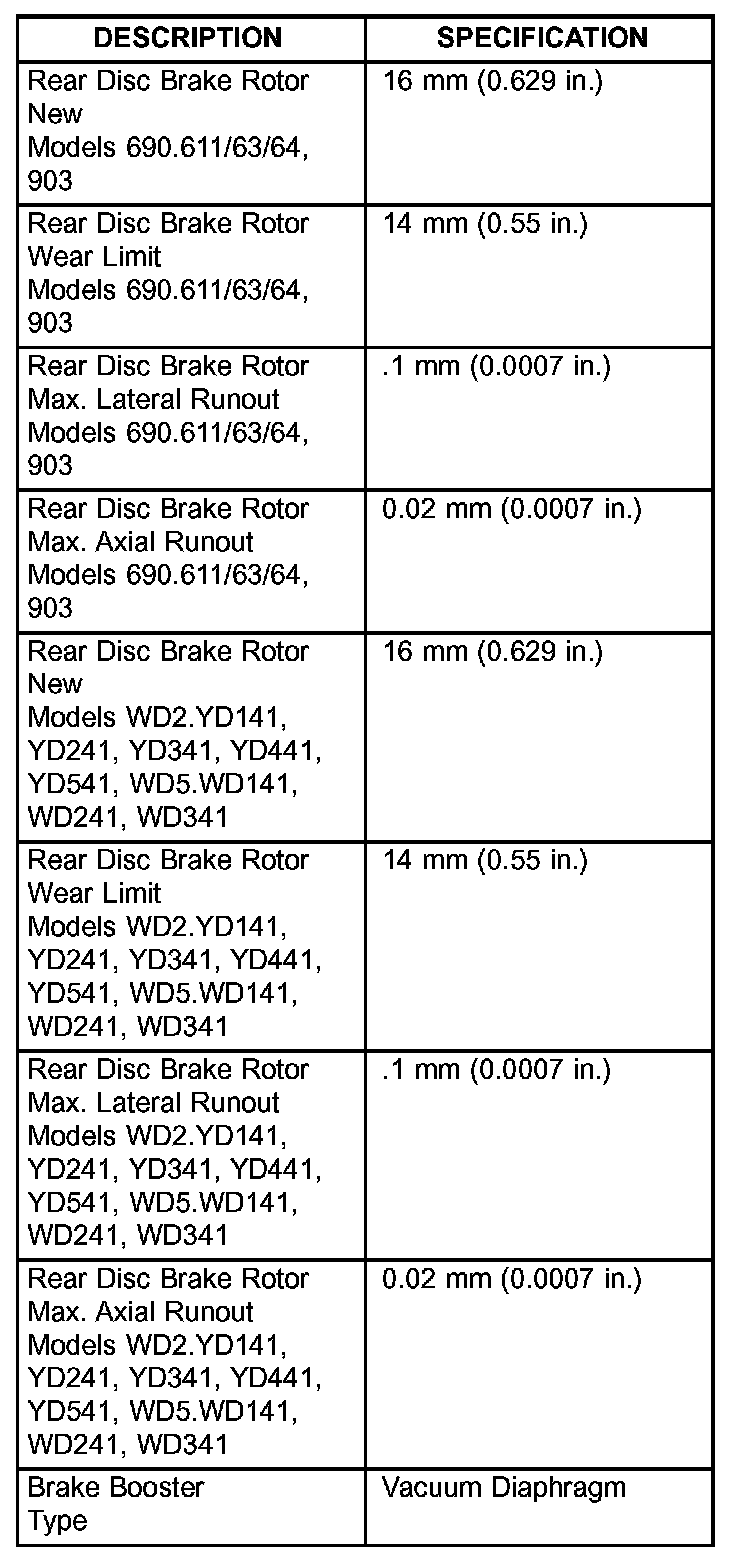

General Specifications, Part 3:
