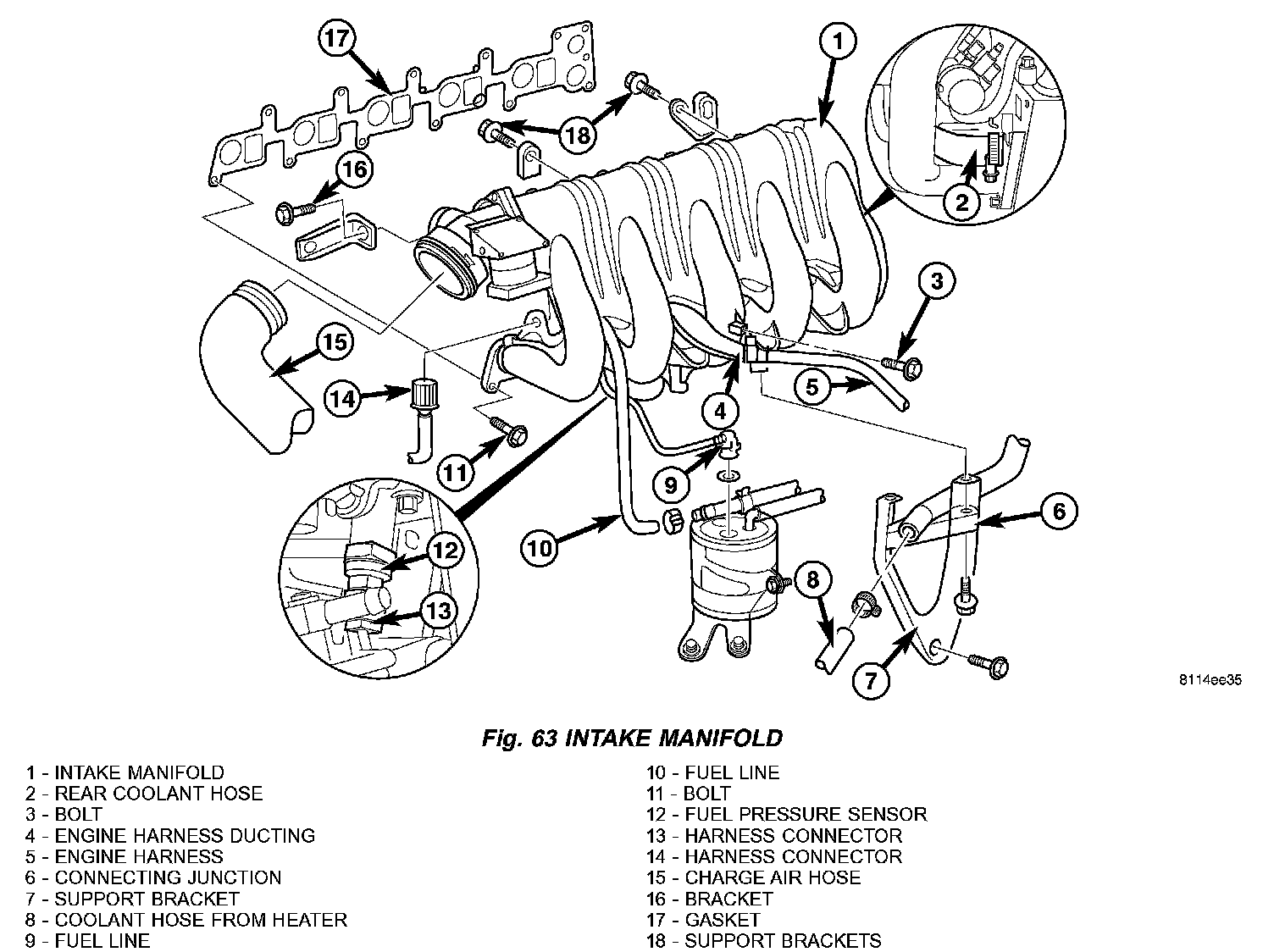

Intake Manifold

Intake manifold
Tighten manifold bolts to 16 Nm (142 inch lbs.)
Do this in a cross directional pattern beginning with the middle bolts and tightening outward to the ends.

Install the rear intake manifold bolts
Tighten to 16 Nm (142 inch lbs.)
