Oil Pan, Engine

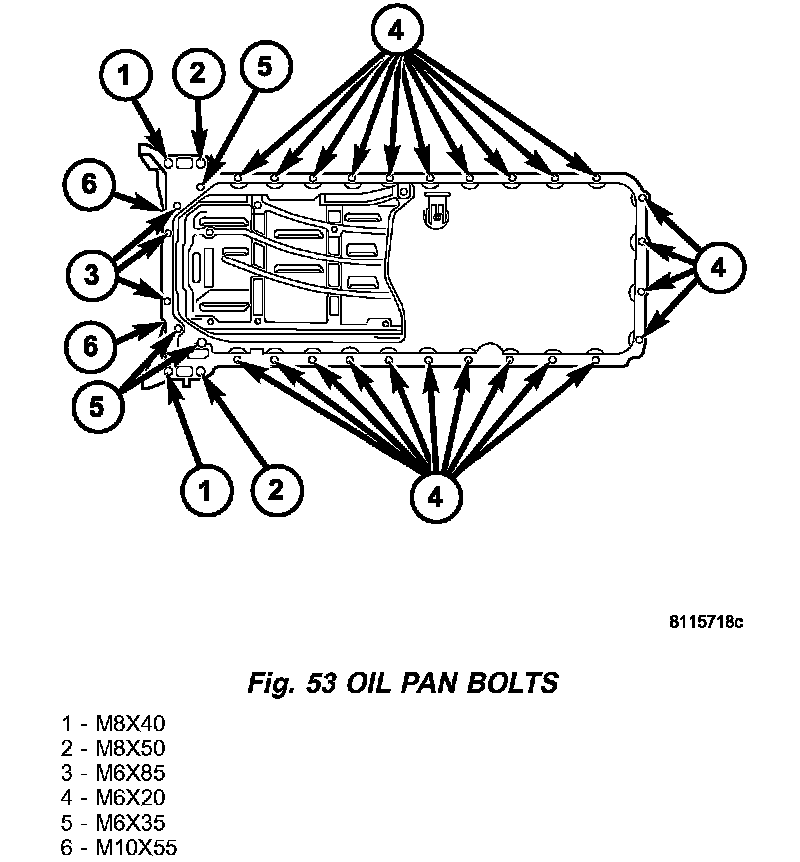

Oil pan.
Tighten M6 bolts to 9 Nm (80 inch lbs.)
Tighten M8 bolts to 20 Nm (15 ft. lbs.)

Bolt-Oil Pan to End Cover 9 Nm (80 inch lbs.)
Bolt-Oil Pan to Timing Case Cover 9 Nm (80 inch lbs.)
Bolt-Oil Pan to Transmission Bell Housing 40 Nm (30 ft. lbs.)
Plug-Oil Pan to Oil Drain 47 Nm (35 ft. lbs.)
