Driver's Side

REMOVAL
1. Disconnect and isolate battery negative cable.

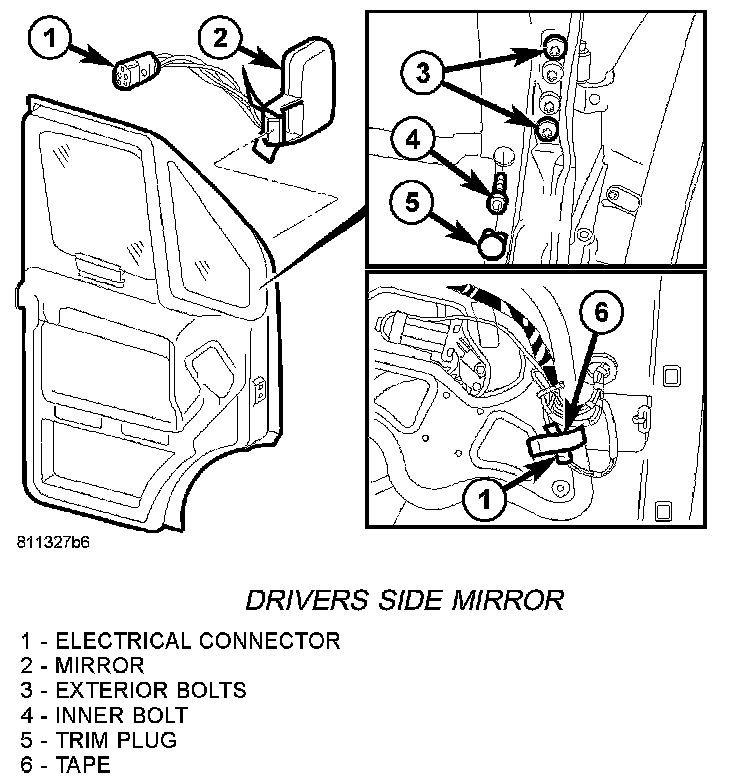

Driver Side Mirror:

2. Remove trim plug.

NOTE: If the vehicle is not equipped with power mirrors, skip to step 5.

3. Remove trim panel.
4. Remove tape, expose electrical connector and disconnect.
5. Remove bolts and remove mirror.
6. If equipped, Pull wire harness through.

INSTALLATION
1. If equipped, pull wire harness through door.
2. Install mirror and bolts.
3. Tighten the bolts to 25 Nm (18 ft. lbs.).

NOTE: If vehicle is not equipped with power mirrors, skip to step 6.

4. Connect electrical connector and replace tape.
5. Install trim panel.
6. Install trim plug.
7. Connect battery negative cable.
