Passenger Side

REMOVAL
1. Disconnect and isolate battery negative cable.

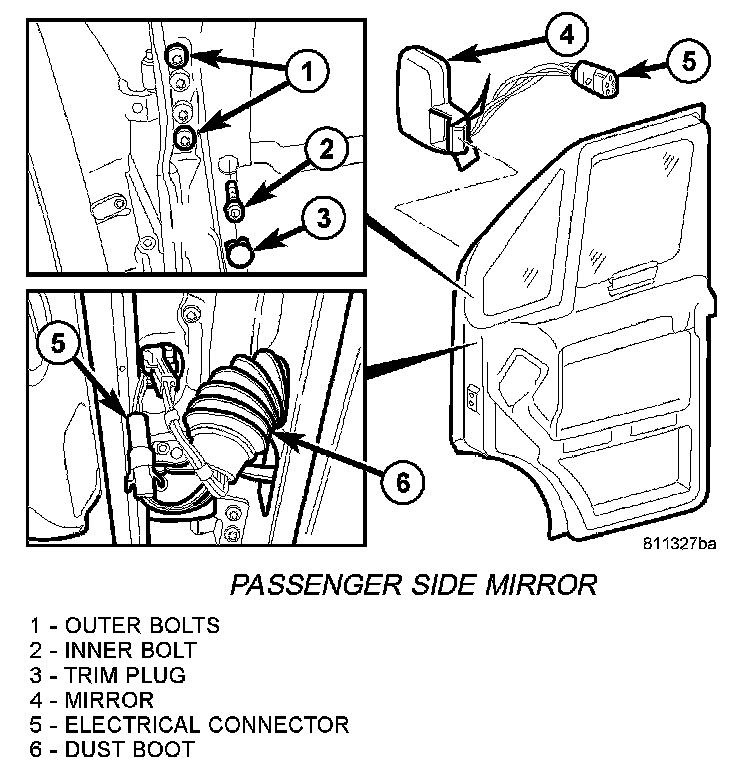

Passenger Side Mirror:

2. Remove trim plug.

NOTE: If the vehicle is not equipped with power mirrors, skip to step 5.

3. Separate dust boot from a-pillar.
4. Disconnect the electrical connector.
5. Remove bolts and remove mirror.
6. If equipped, pull wire harness through.

INSTALLATION
1. If equipped, pull wire harness through door.
2. Install mirror and bolts.
3. Tighten the bolts to 25 Nm (18 ft. lbs.).

NOTE: If vehicle is not equipped with power mirrors, skip to step 6.

4. Connect the electrical connector.
5. Connect dust boot to a-pillar.
6. Install trim plug.
7. Connect battery negative cable.
