System Schematics

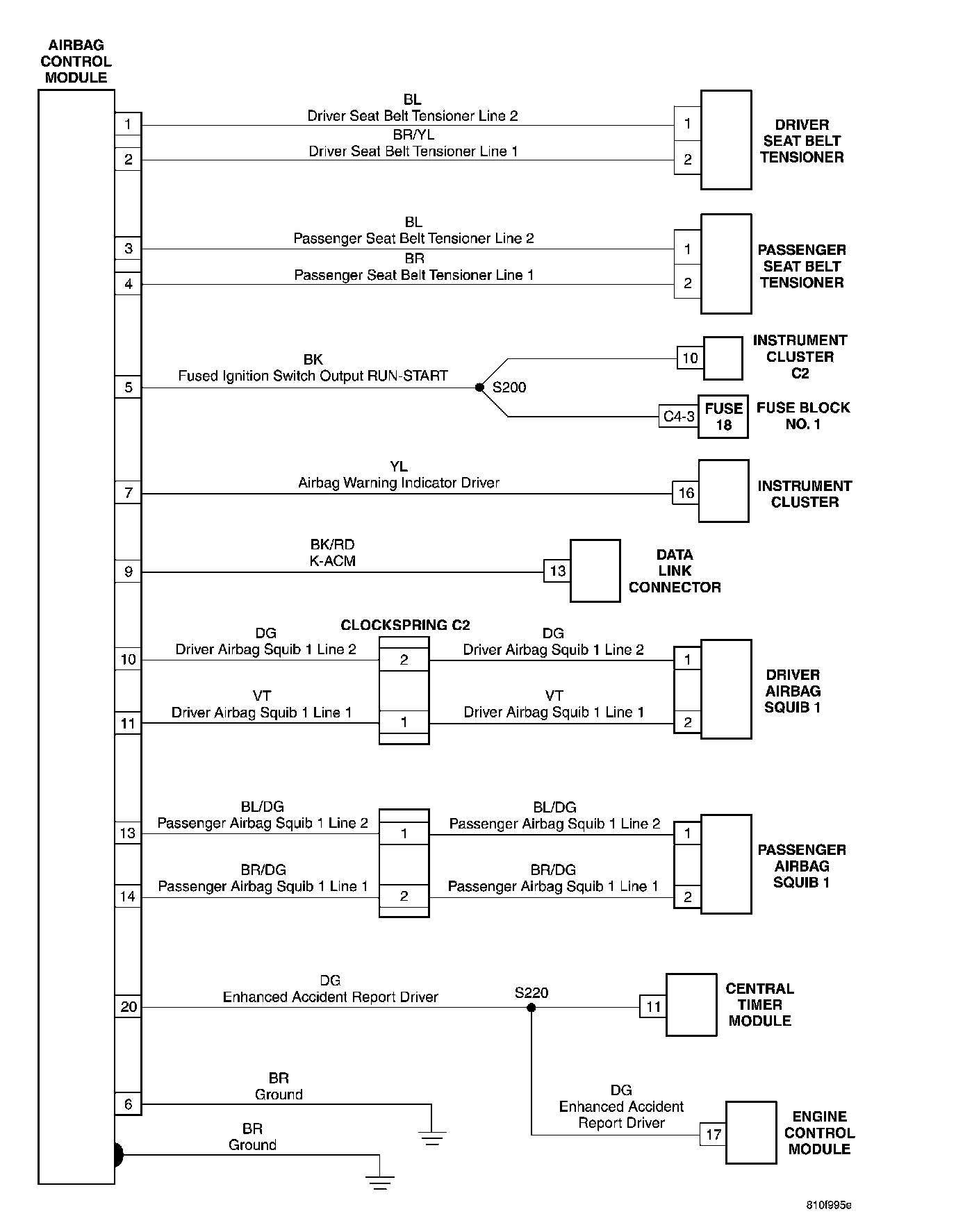

Airbag System:

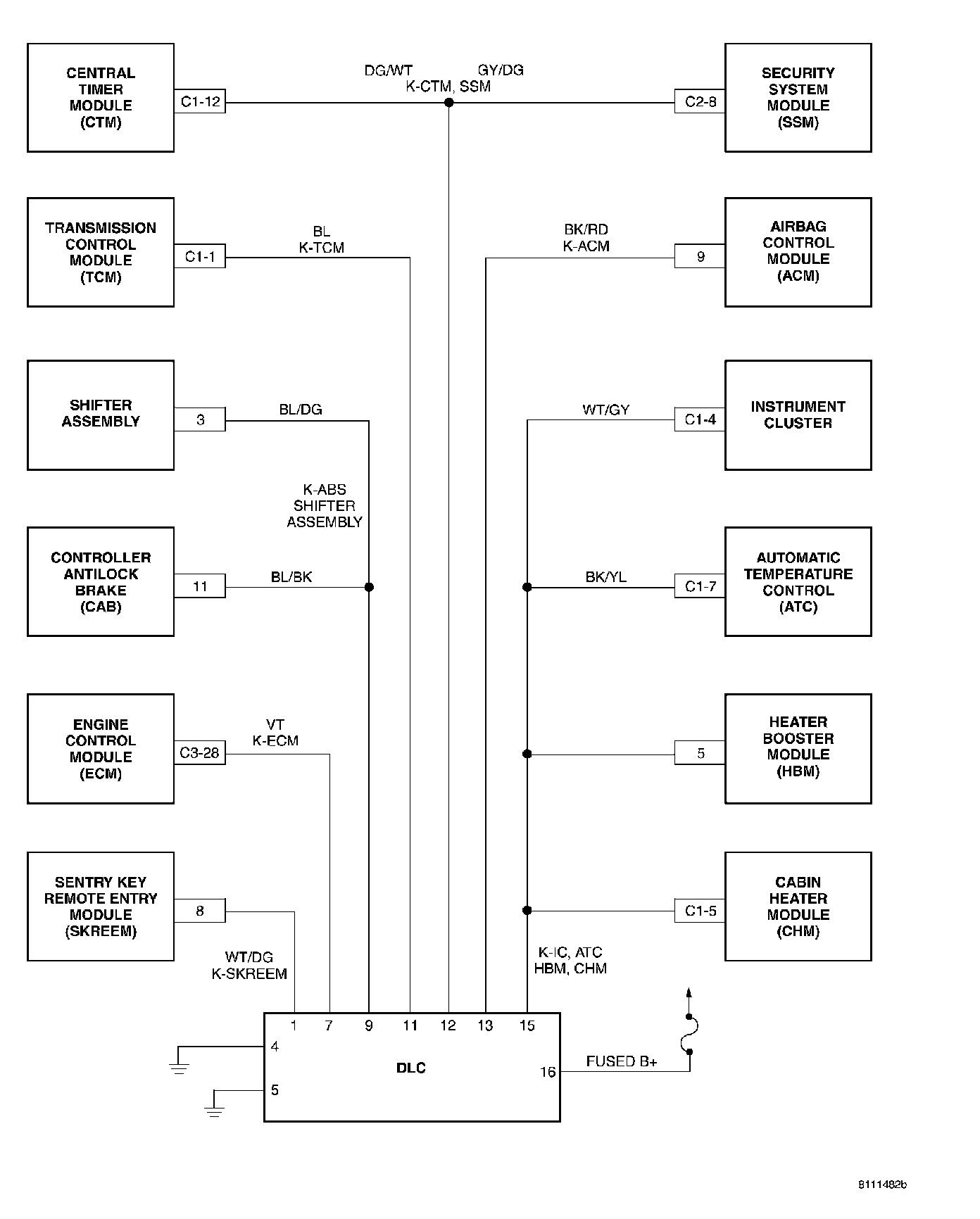

Communication K-Lines:

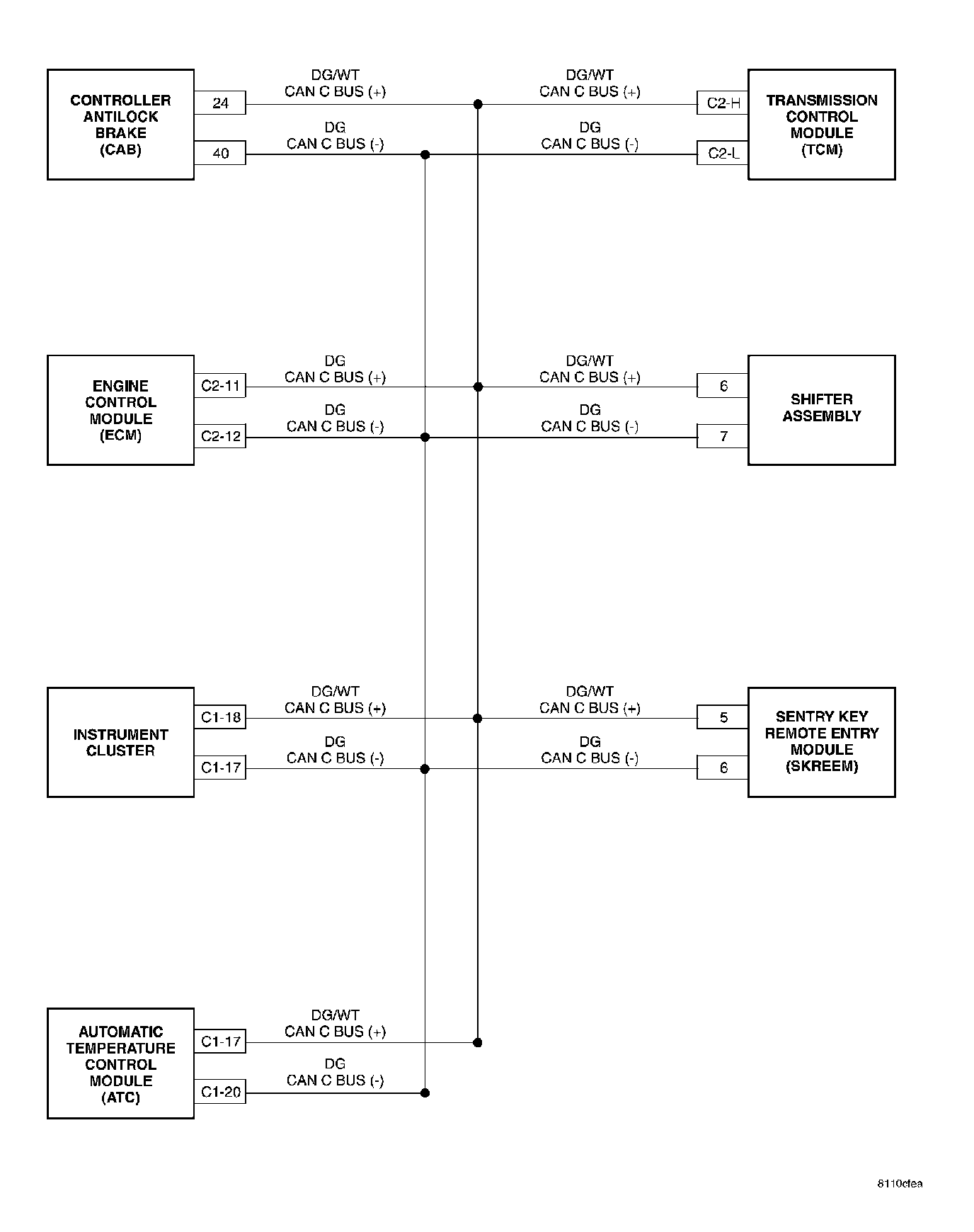

CAN BUS NETWORK:

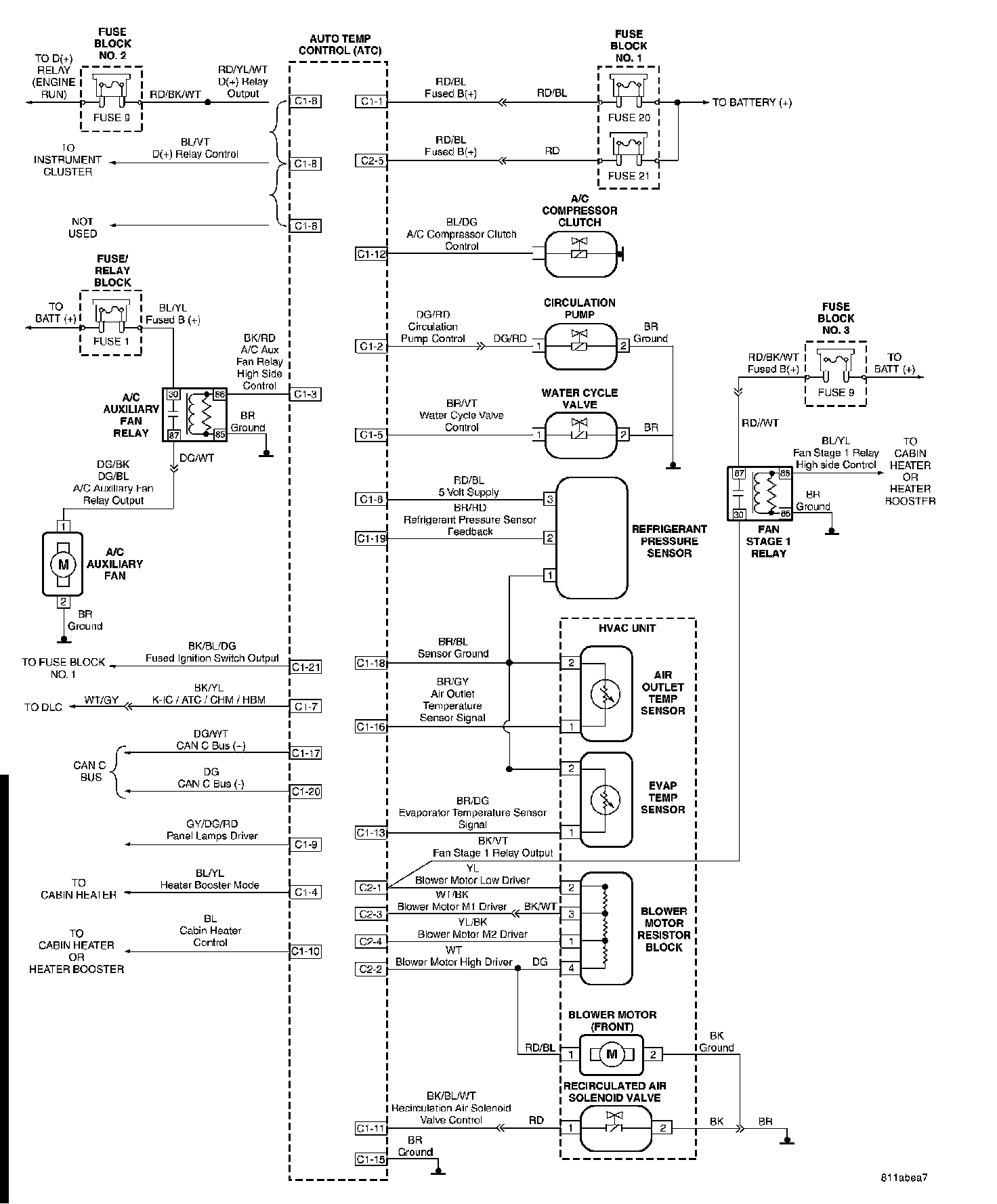

Automatic Temperature Control (ATC):

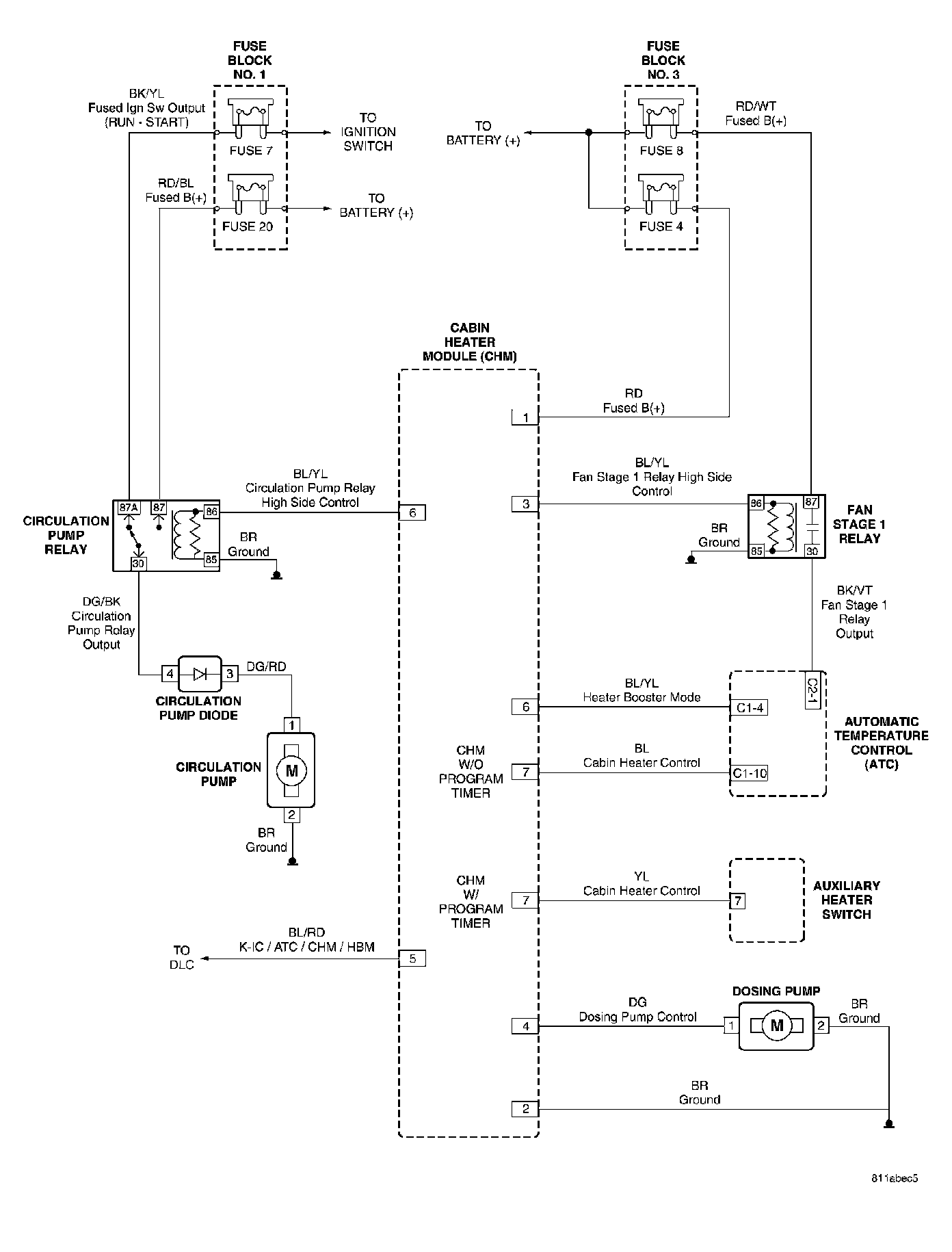

Cabin Heater Module (CHM):

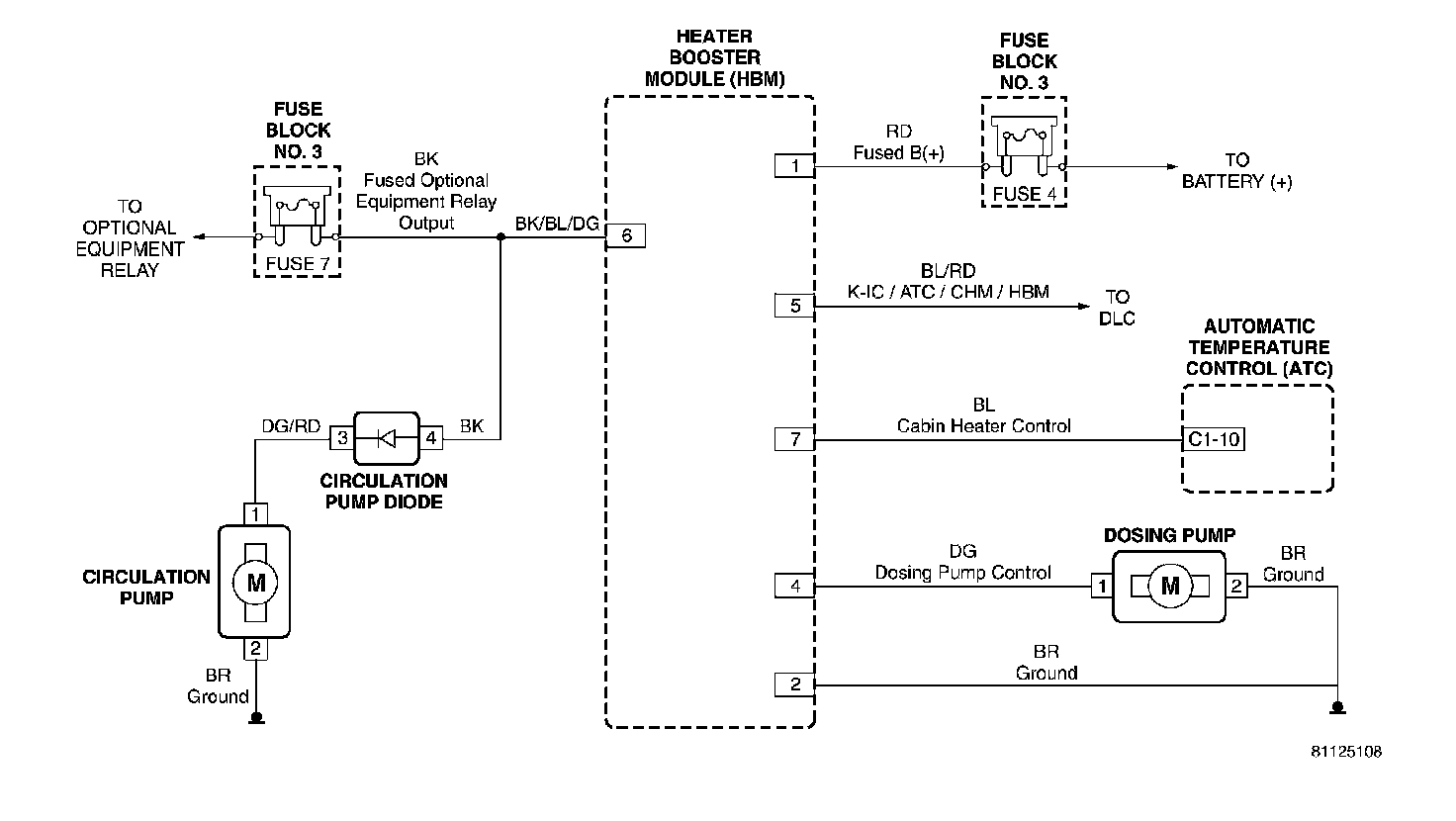

Heater Booster Module (HBM):

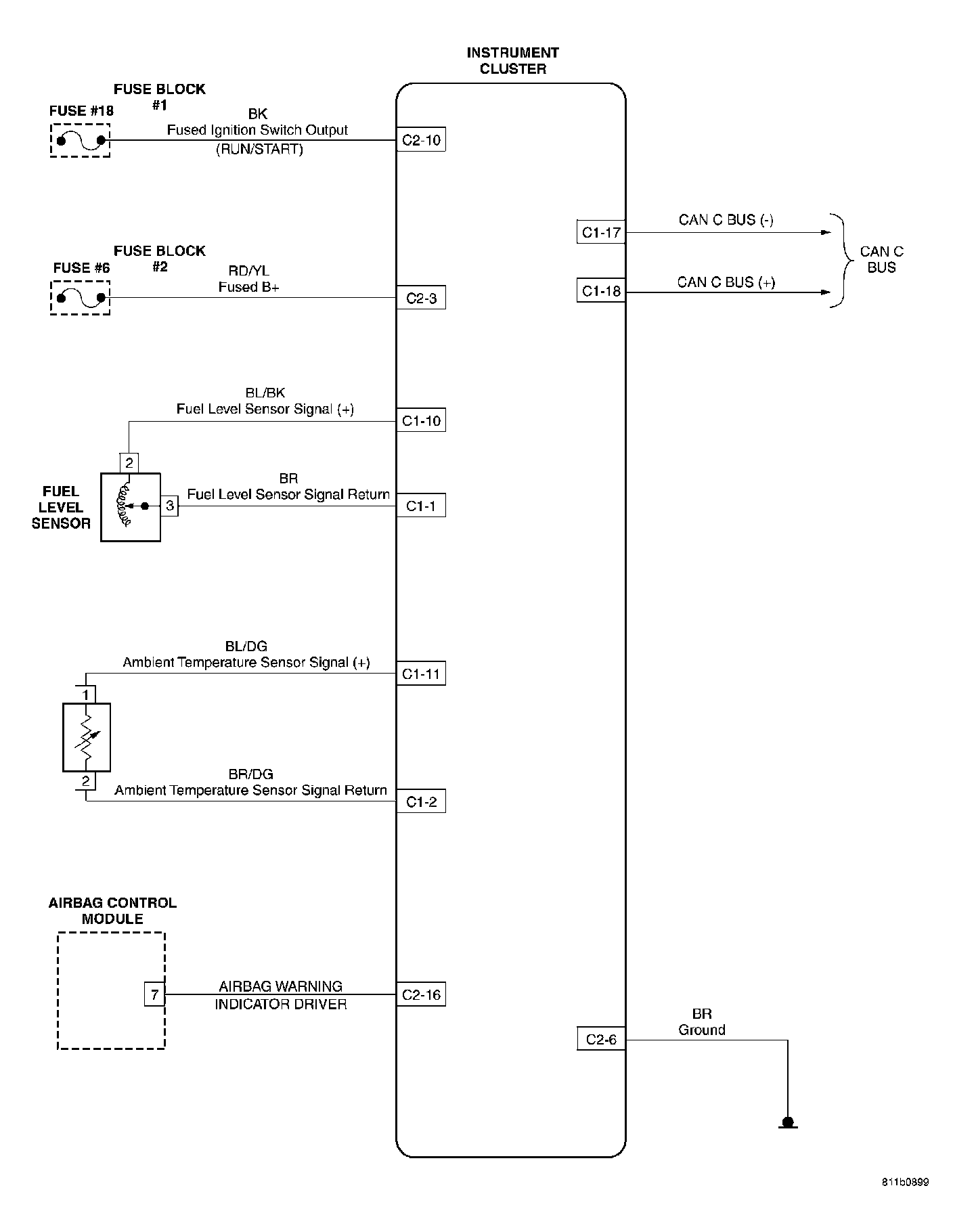

Instrument Cluster:

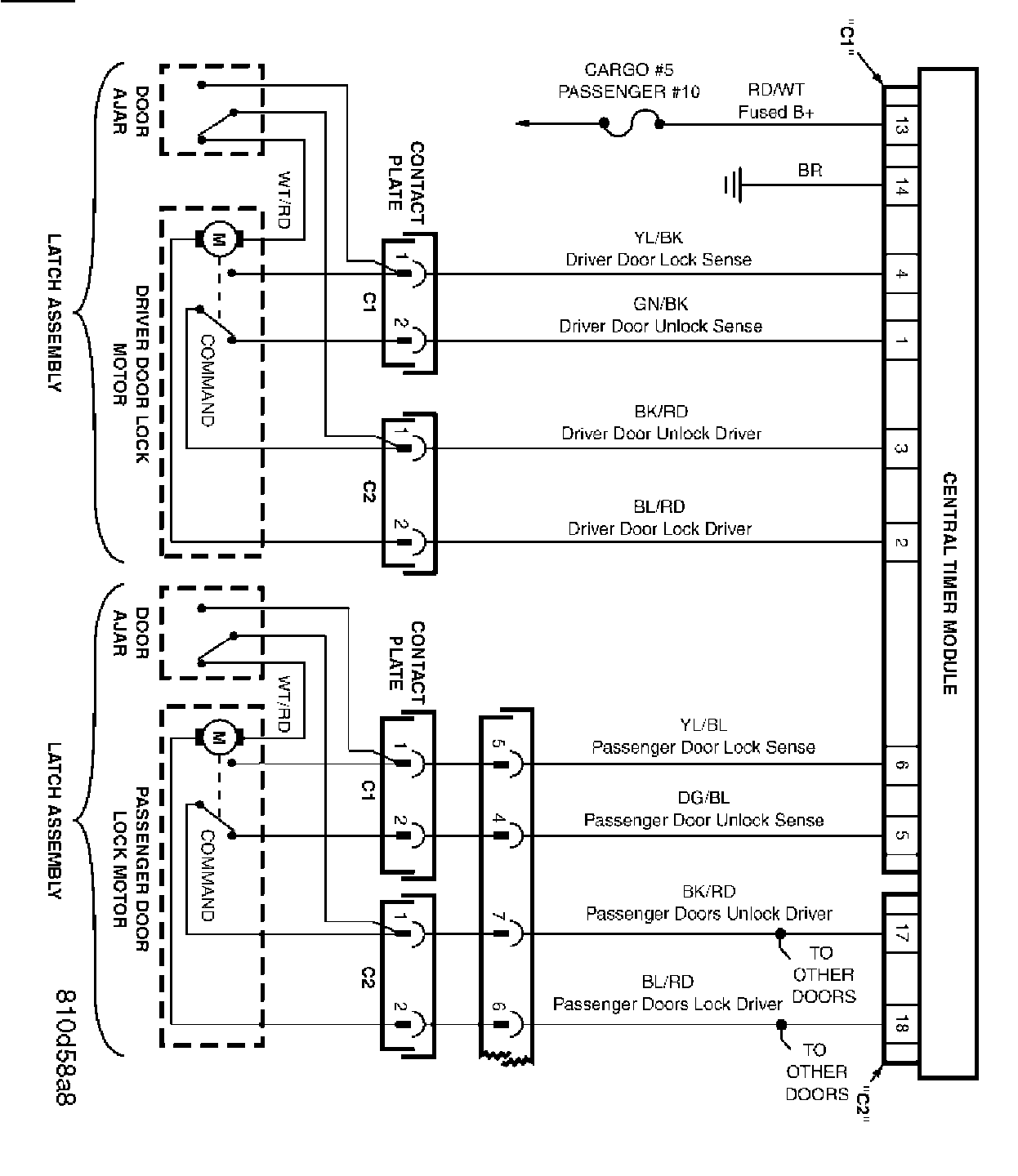

Front Doors:

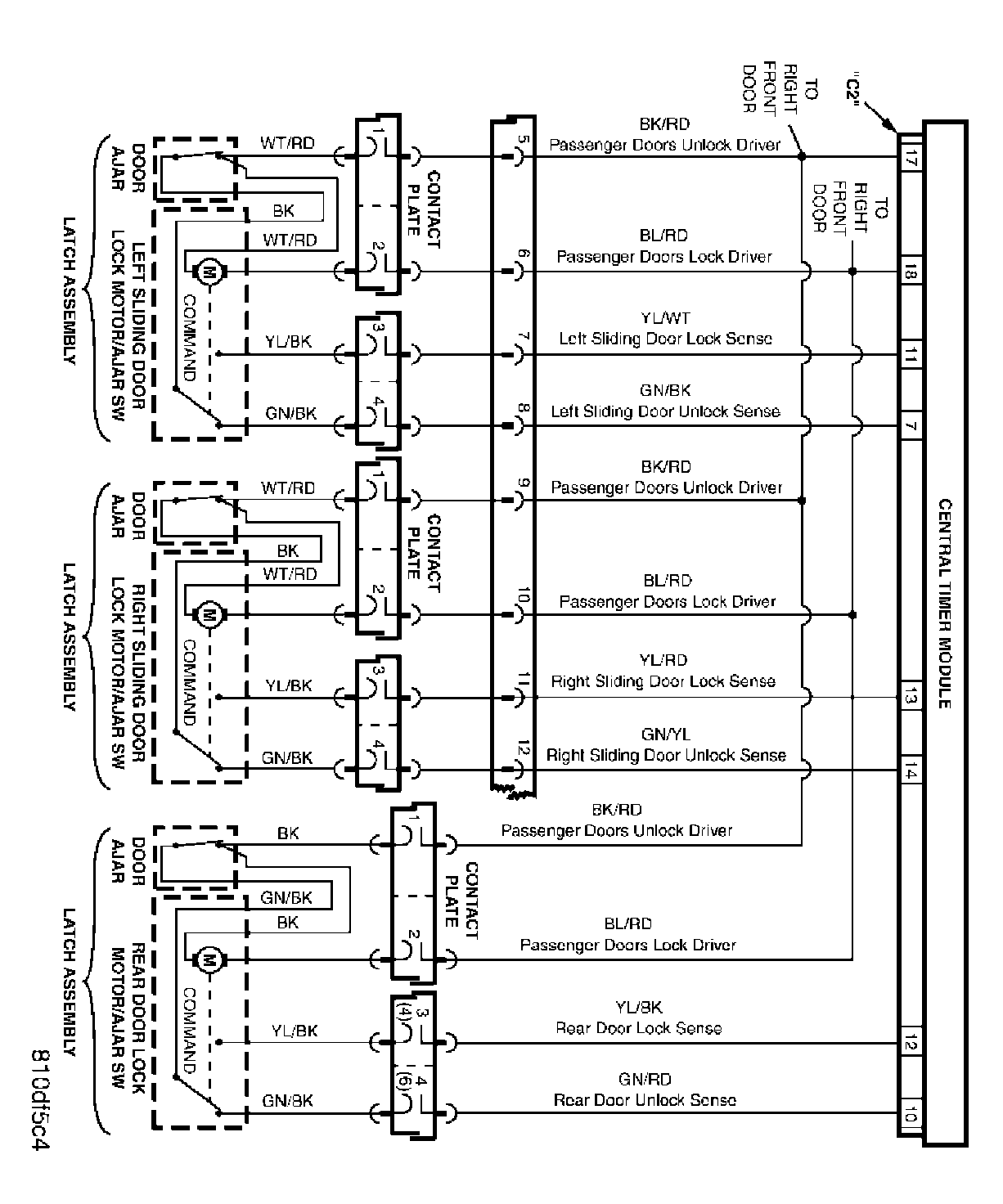

Sliding And Rear Doors:

Switch And Miscellaneous Circuits:

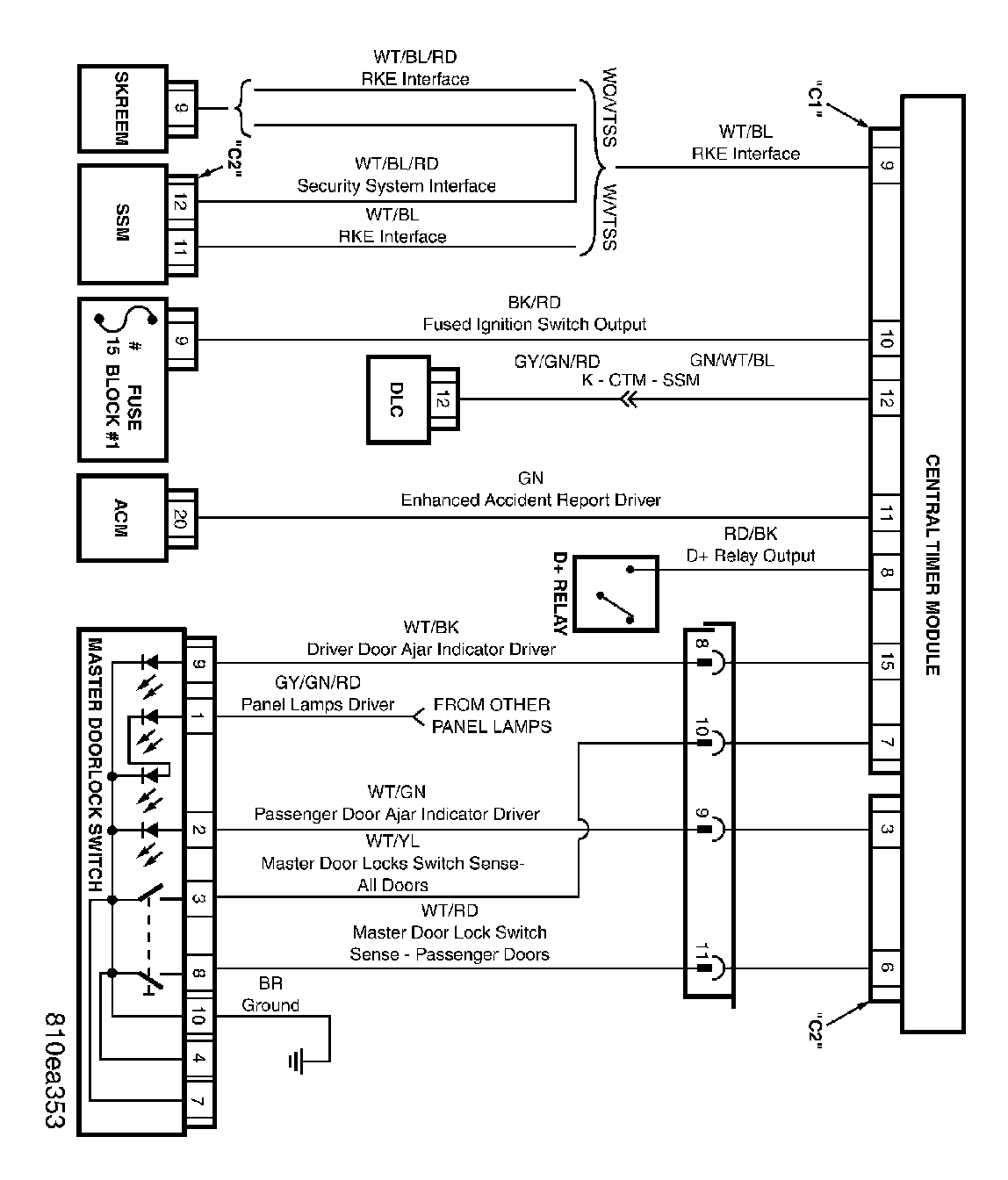

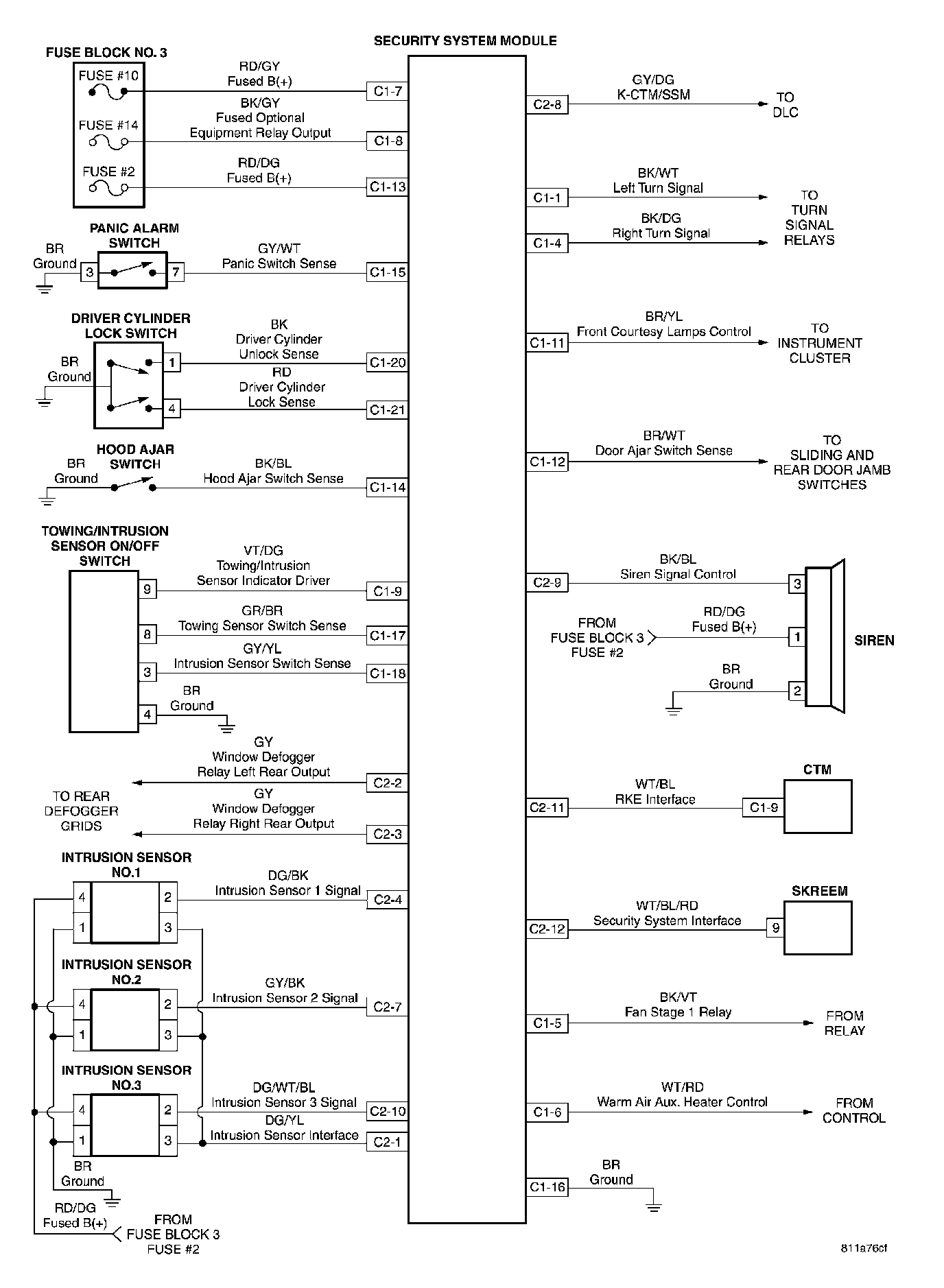

Vehicle Theft Security System:
