Interior Lighting Module: Diagrams

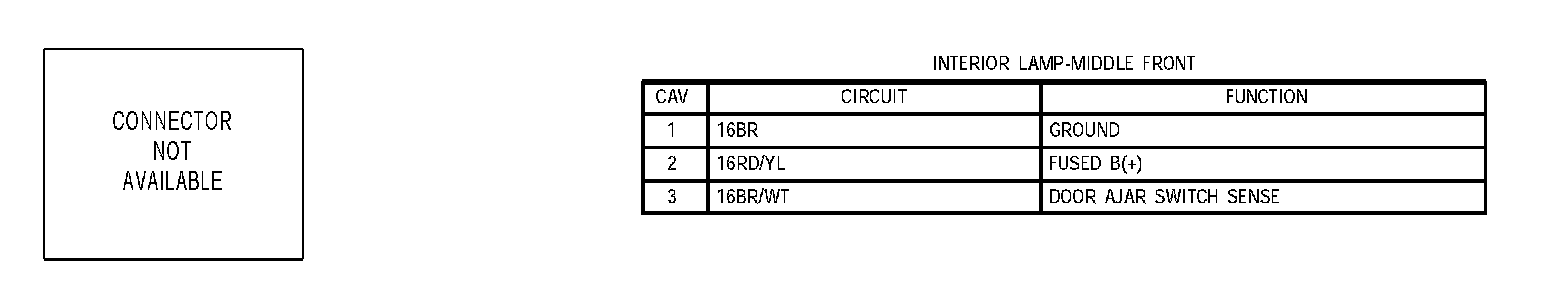

Interior Lamp Module Front:

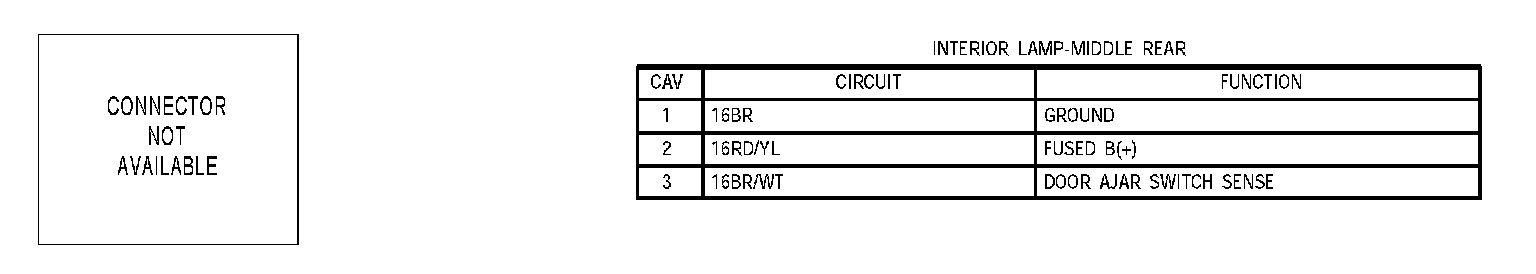

Interior Lamp Module Rear:

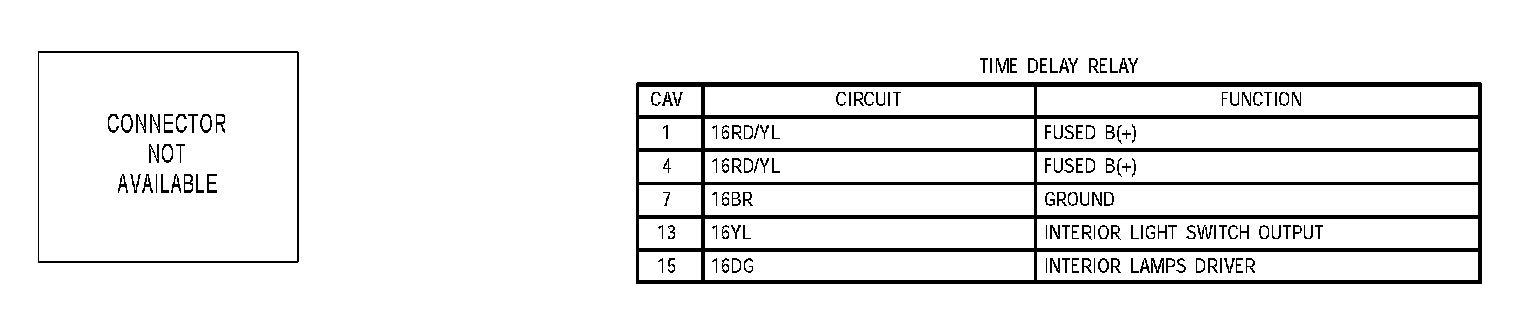

Time Delay Relay:
