Absolute Pressure Sensor: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Disconnect the sensor electrical connector.
3. Remove the air intake pressure sensor.

INSTALLATION

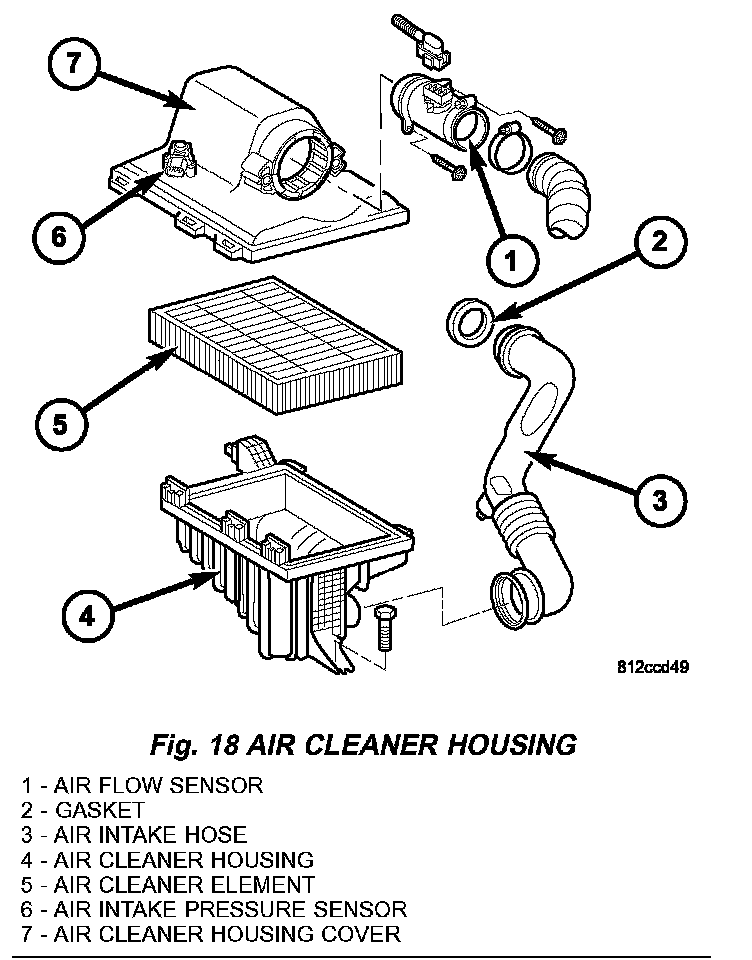

Air Cleaner Housing:

1. Position the pressure sensor in the air cleaner cover and install the fasteners .
2. Connect the electrical connector .
3. Connect the negative battery cable.
