Fuel Pressure Sensor: Testing and Inspection

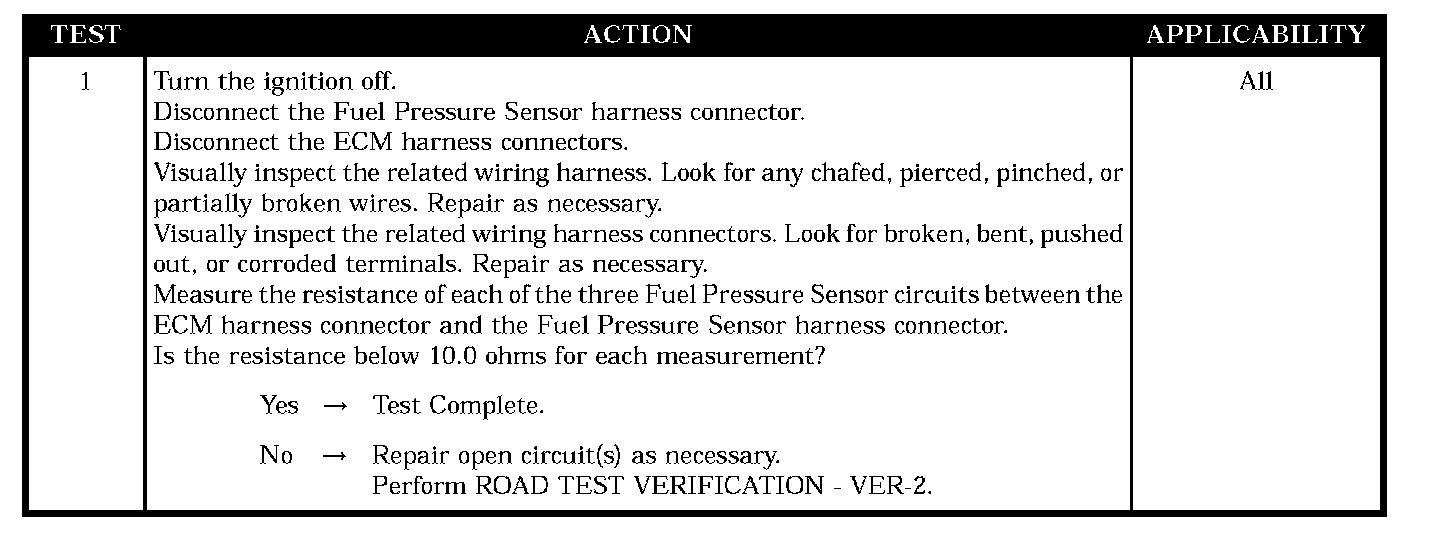

Test 1:





SYMPTOM
CHECKING THE FUEL PRESSURE SENSOR CIRCUITS

POSSIBLE CAUSES
- Open circuits
