Intake Manifold

Tighten manifold bolts to 16 Nm (142 inch lbs.) in a cross directional pattern beginning with the middle bolts and tightening outward to the ends.

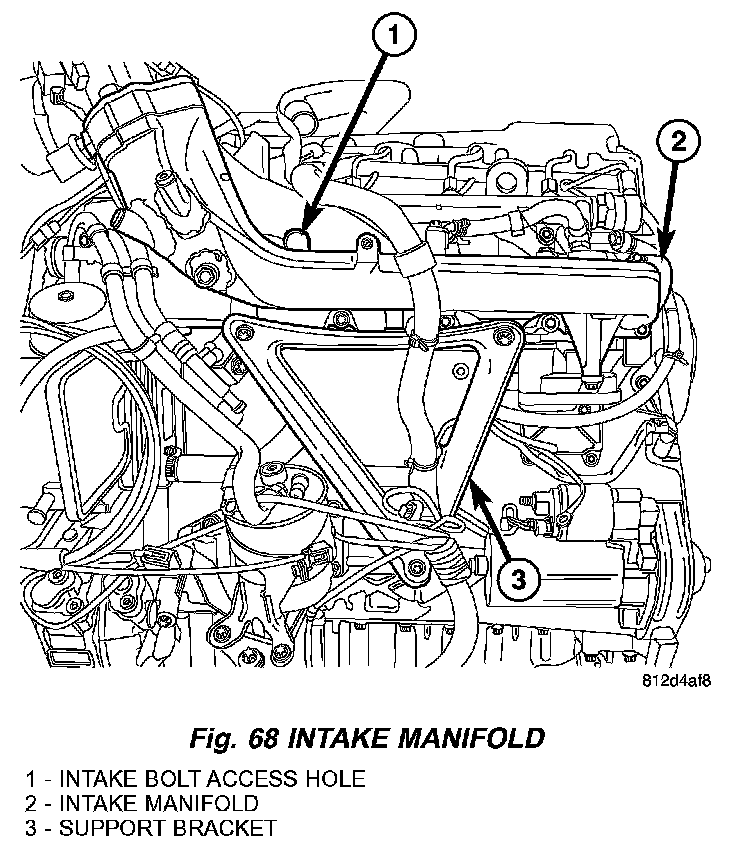

Install the rear intake manifold bolts and tighten to 16 Nm (142 inch lbs.) (Fig. 68).
Install the lower intake manifold support bracket. Tighten bolts to 20 Nm (177 inch lbs.) (Fig. 68).
