Turbo Boost Sensor

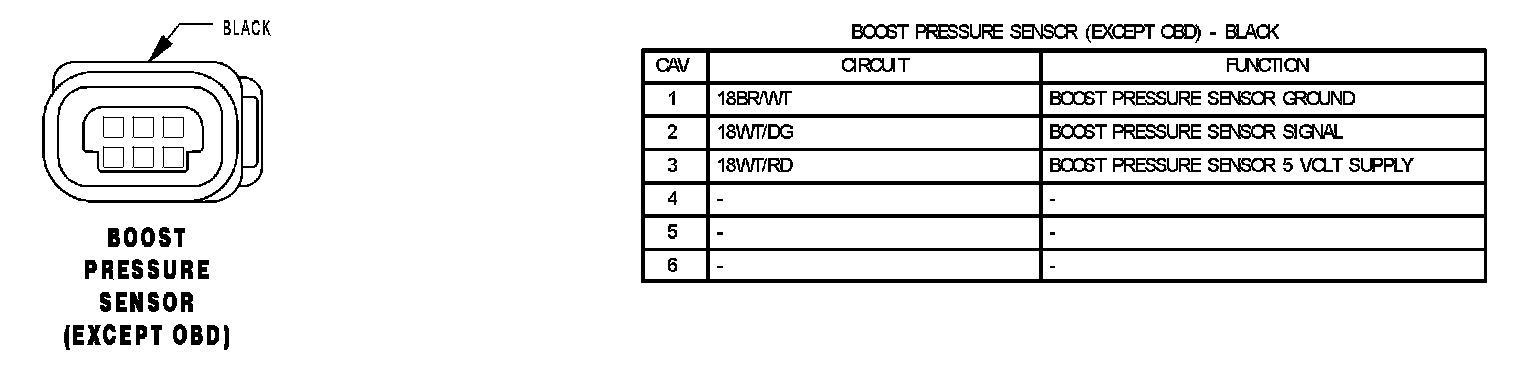

Boost Pressure Sensor (Except OBD):

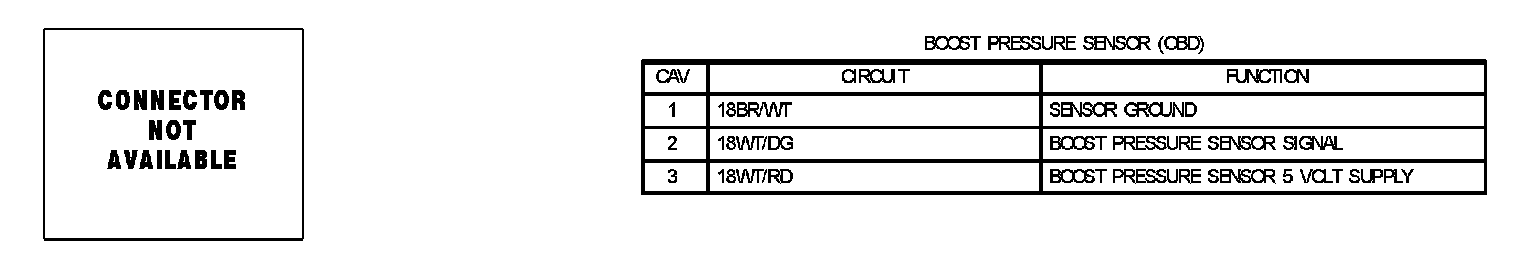

Boost Pressure Sensor (OBD):

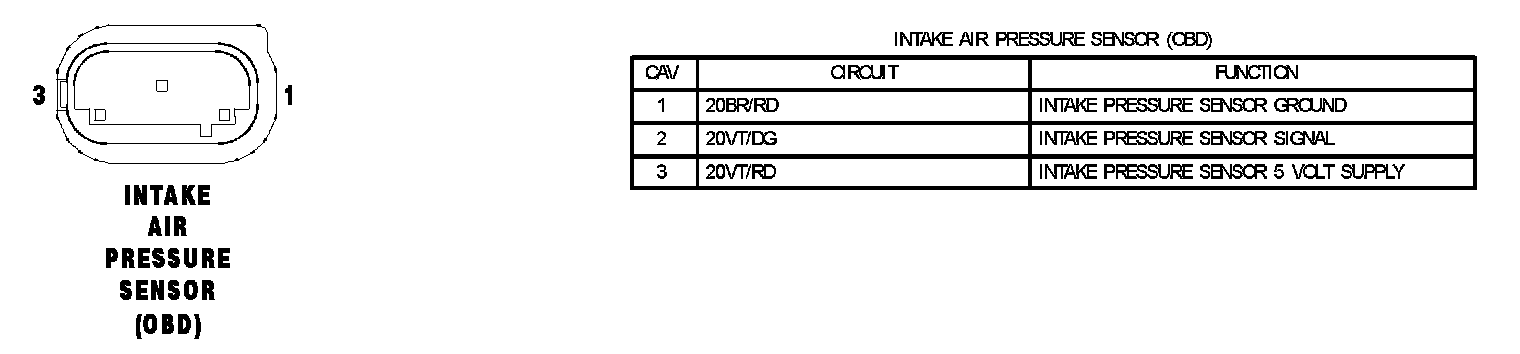

Intake Air Pressure Sensor (OBD):
