Map Light: Service and Repair

Dome/Reading Lamp Unit

REMOVAL
1. Disconnect and isolate the battery negative cable.

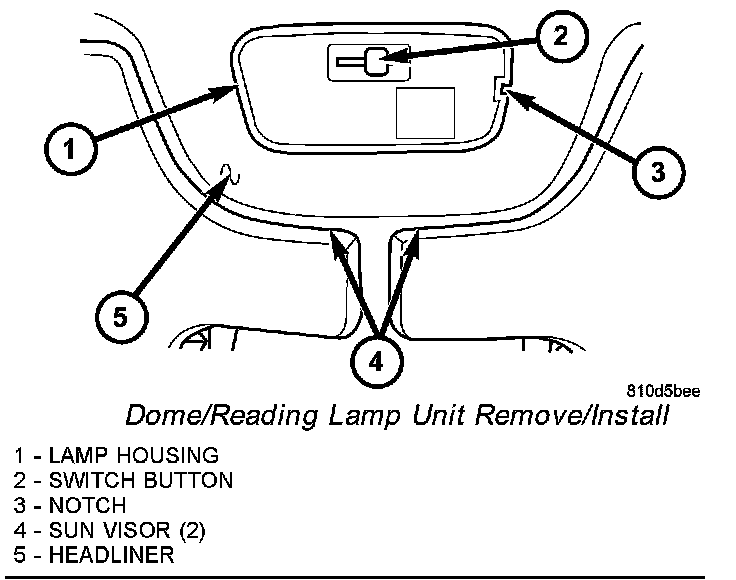

Dome/Reading Lamp Unit Remove/Install:

2. Insert the tip of a small flat-bladed screwdriver into the notch on one edge of the dome/reading lamp housing to depress the retainer clip and pull that edge of the lamp away from its mounting location.
3. Pull the dome/reading lamp unit from its mounting location far enough to access and disconnect the vehicle wire harness from the lamp connector receptacle.
4. Remove the dome/reading lamp unit from its mounting location.

INSTALLATION
1. Position the dome/reading lamp unit to its mounting location.
2. Reconnect the vehicle wire harness connector to the dome/reading lamp connector receptacle.
3. Position the edge of the dome/reading lamp housing opposite from the retainer clip into the mounting hole.
4. Push firmly and evenly on the notched edge of the dome/reading lamp housing until the retainer clip latches into place.
5. Reconnect the battery negative cable.
