Camshaft Position Sensor: Service and Repair

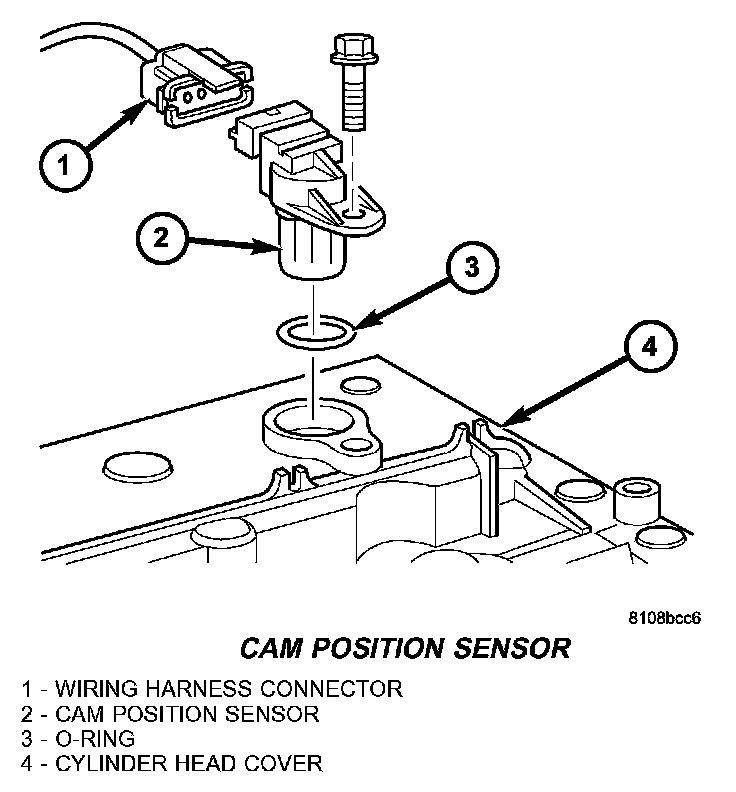

Cam Position Sensor:

REMOVAL
1. Disconnect negative battery cable.
2. Remove engine cover.
3. Disconnect camshaft position sensor electrical connector.
4. Remove retaining bolt and remove sensor.

INSTALLATION
1. Install camshaft position sensor and tighten bolt.
2. Reconnect electrical connector.
3. Install engine cover.
4. Reconnect negative battery cable.
