System Schematic

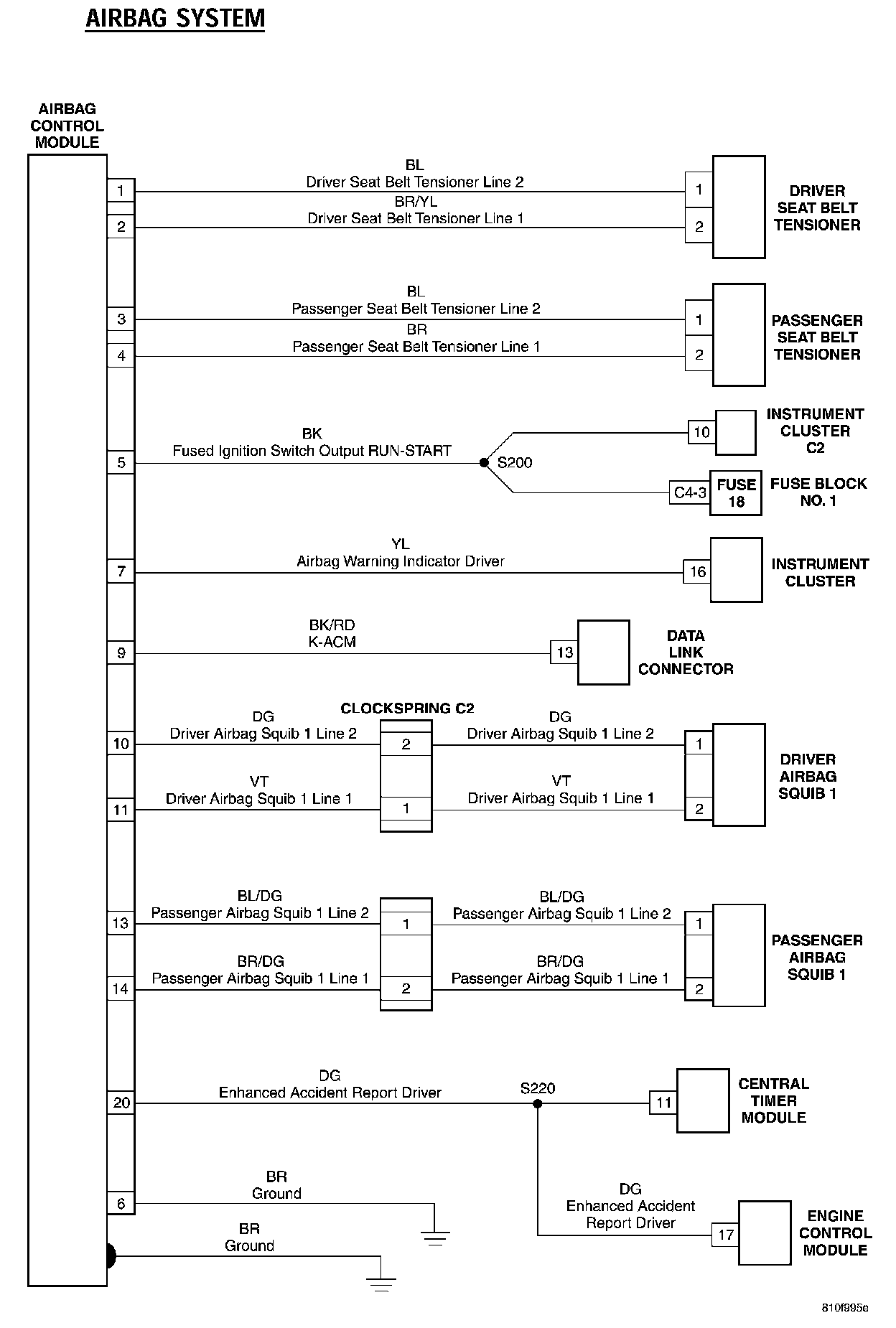

Airbag System:

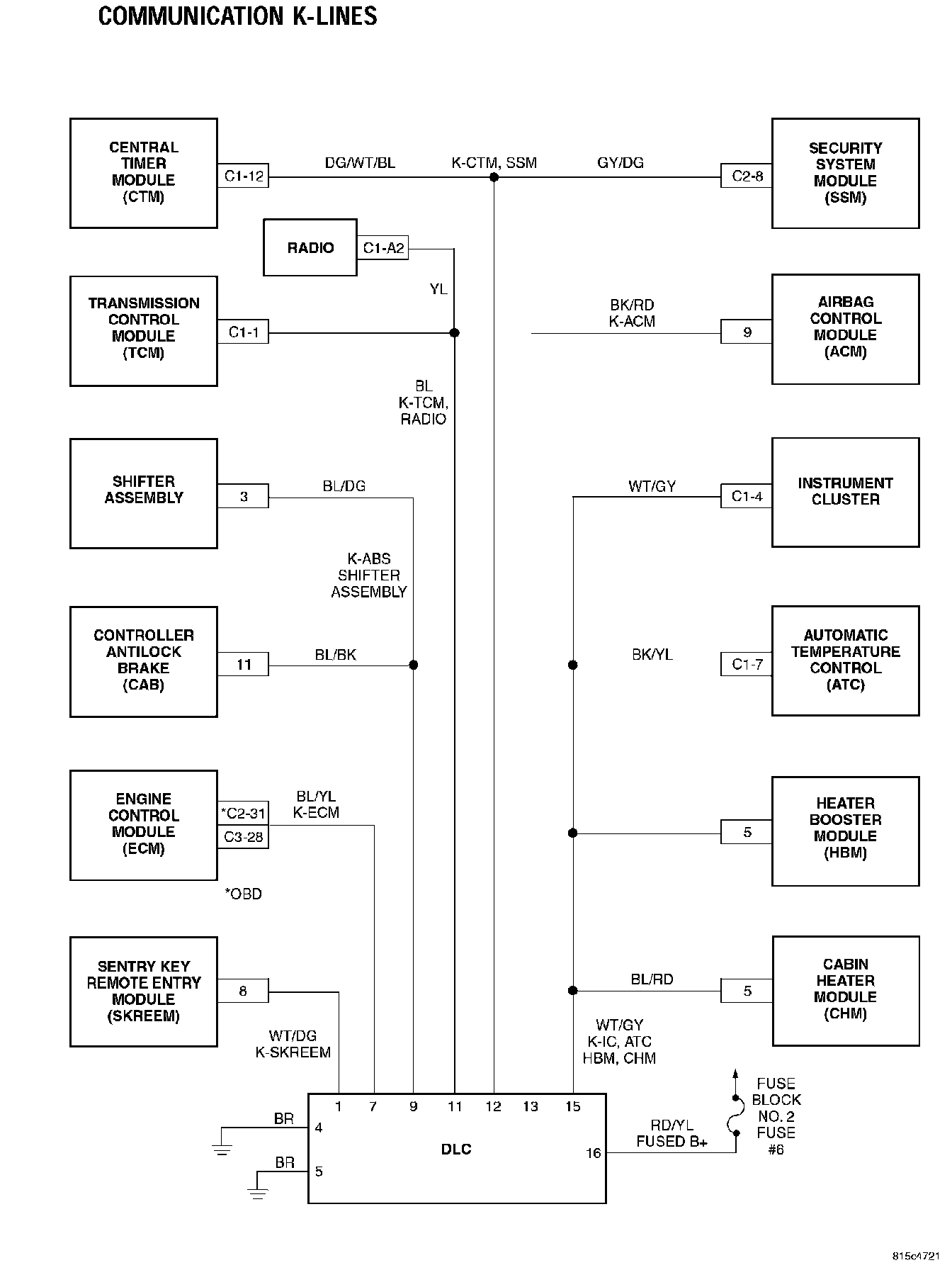

Communication K-Lines:

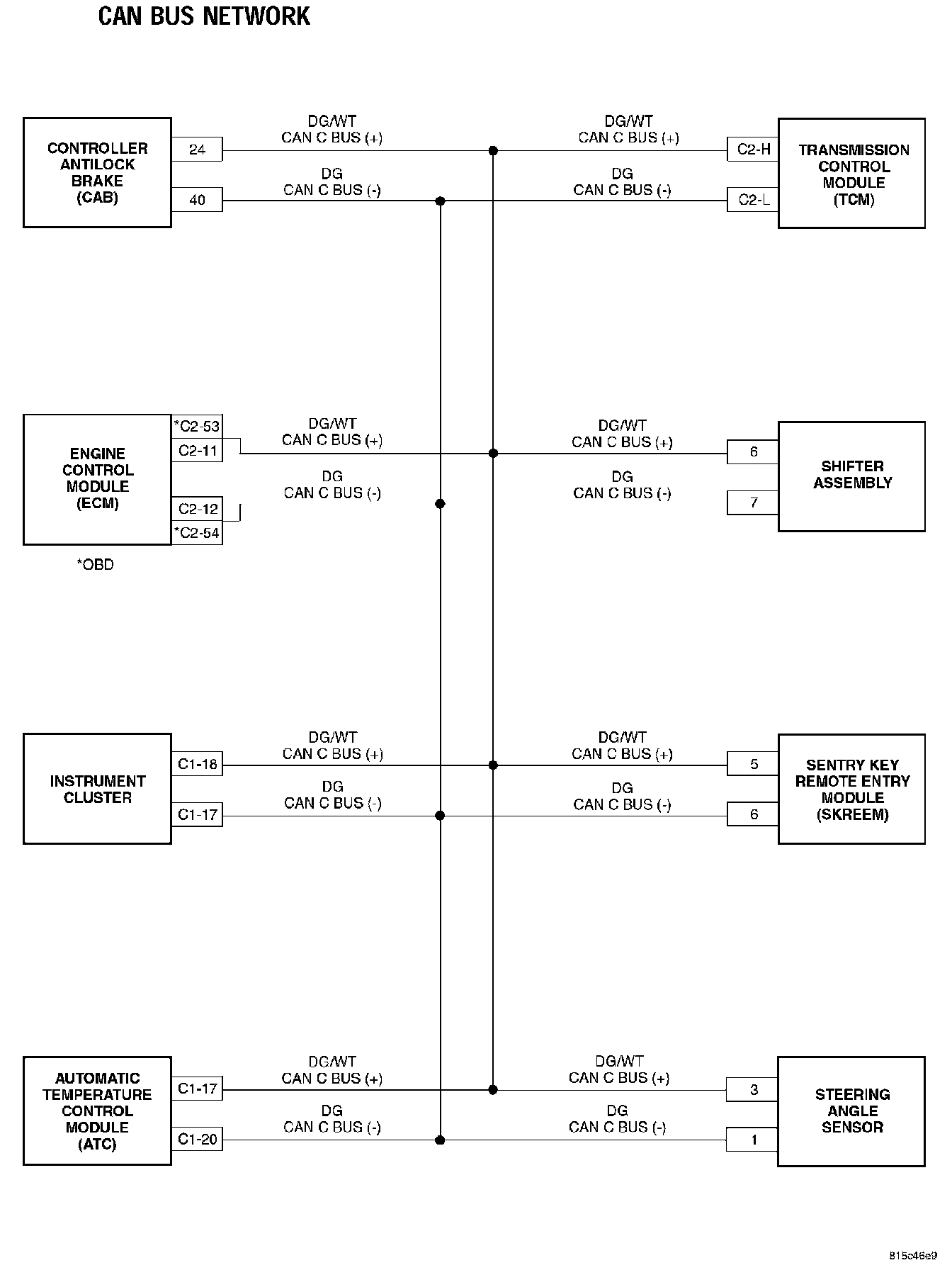

Can Bus Network:

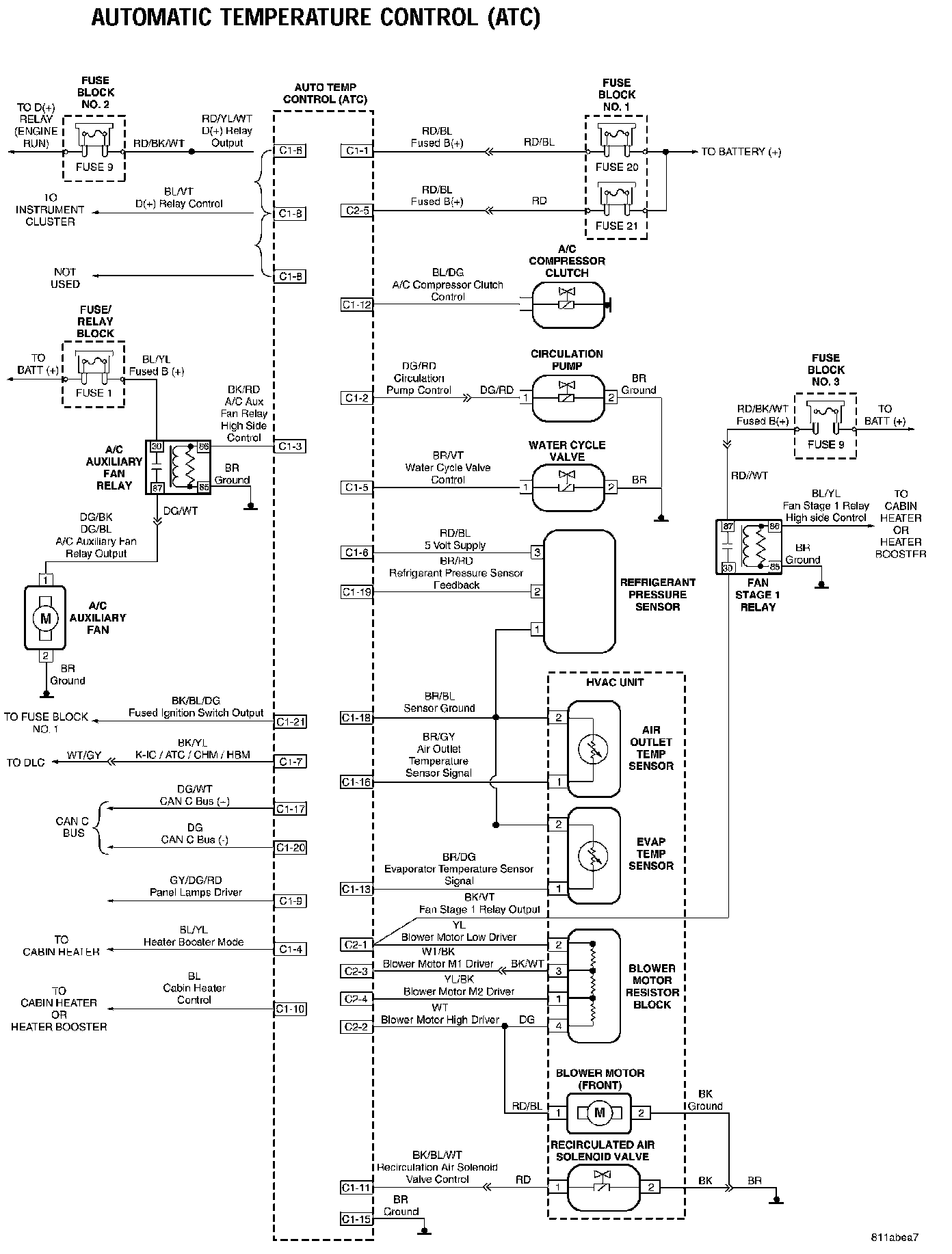

Automatic Temperature Control (ATC):

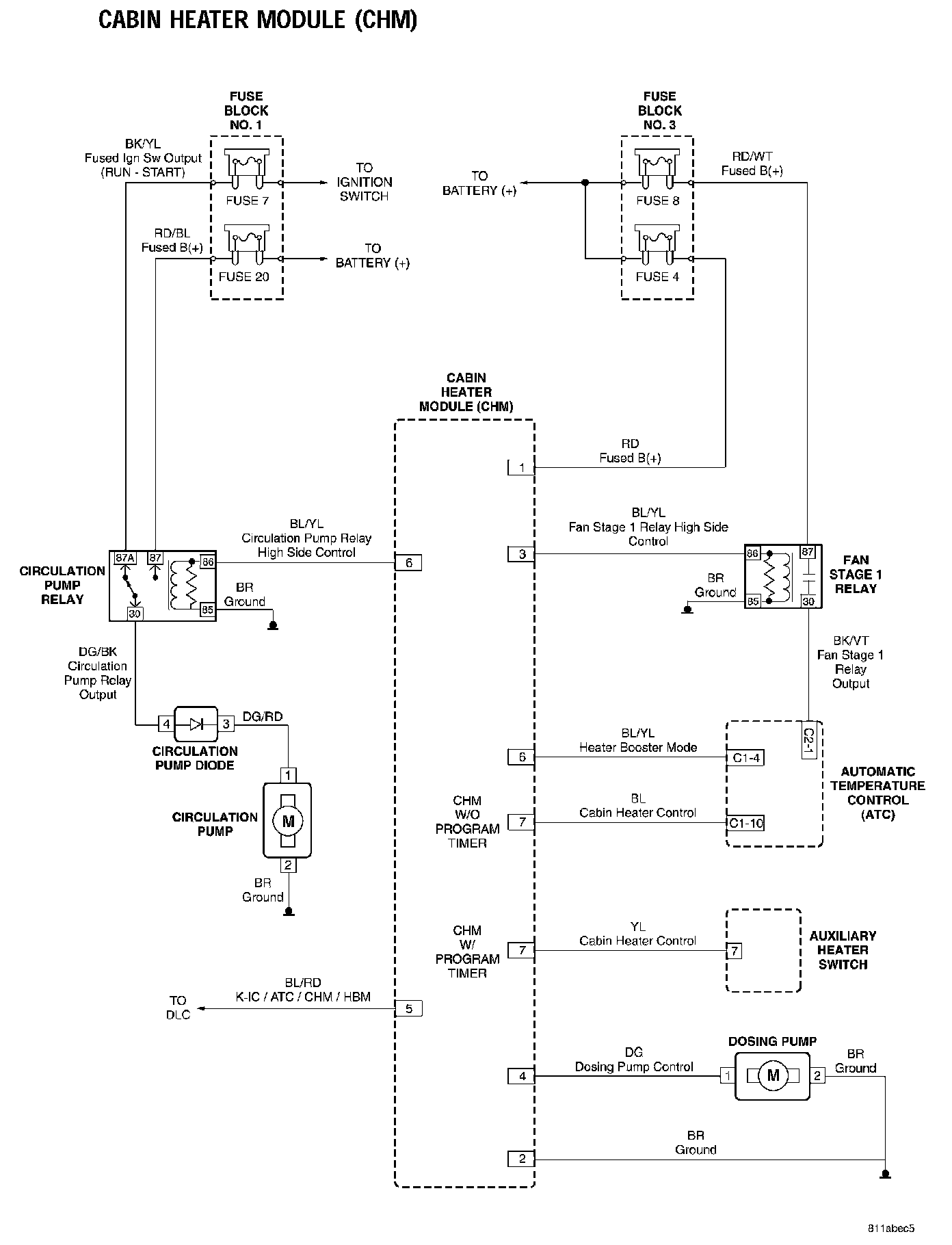

Cabin Heater Module (CHM):

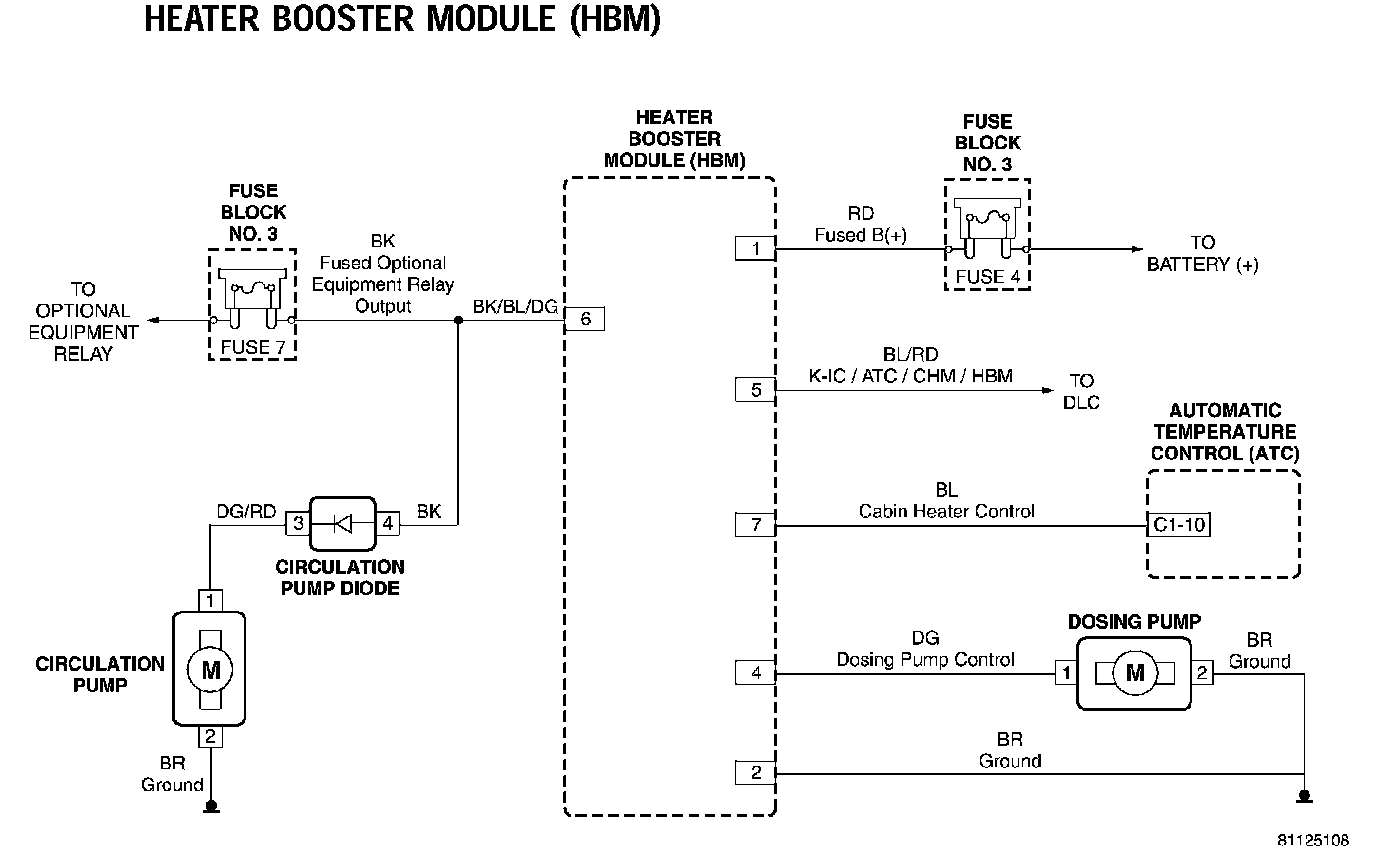

Heater Booster Module (HBM):

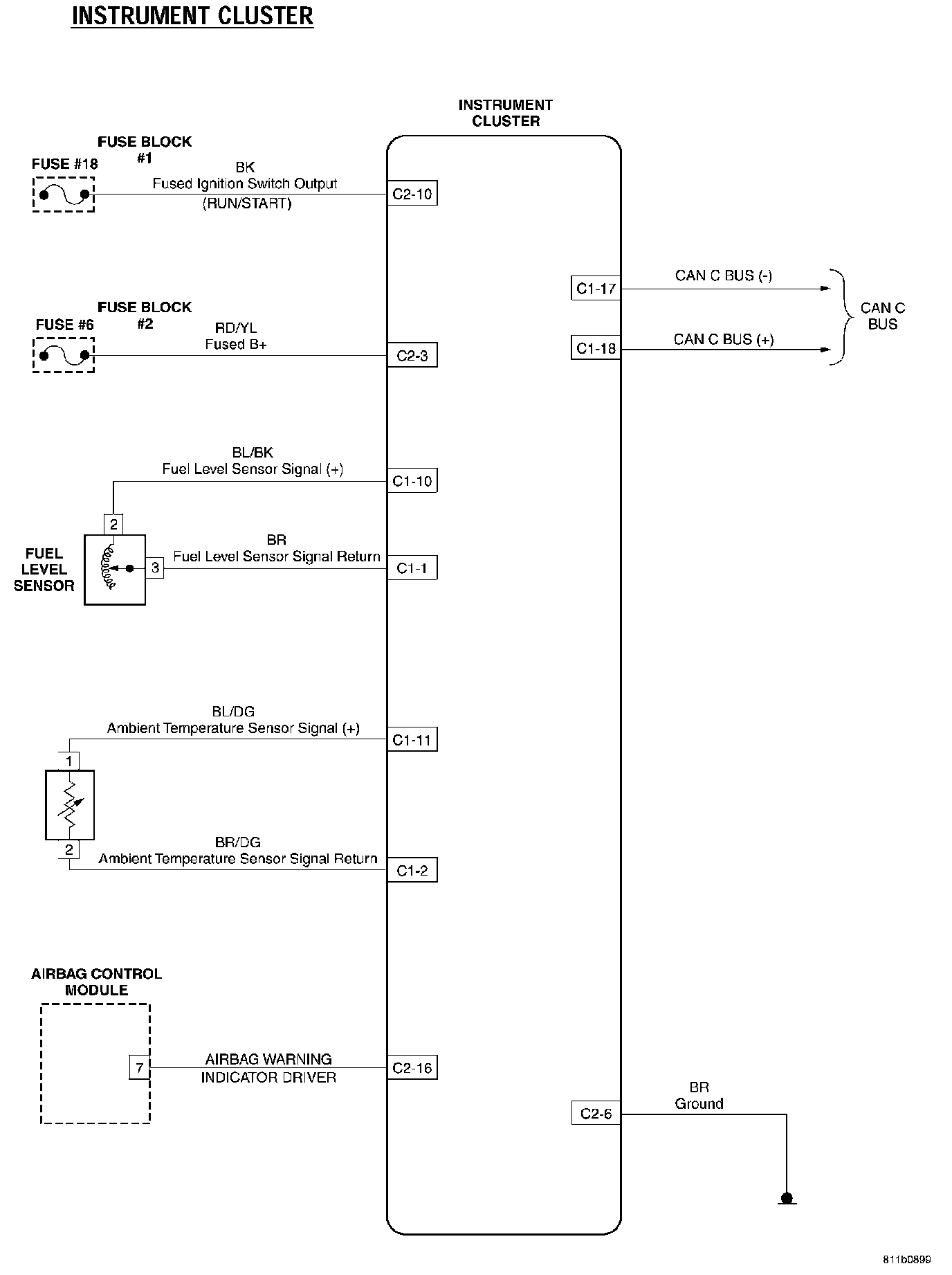

Instrument Cluster:

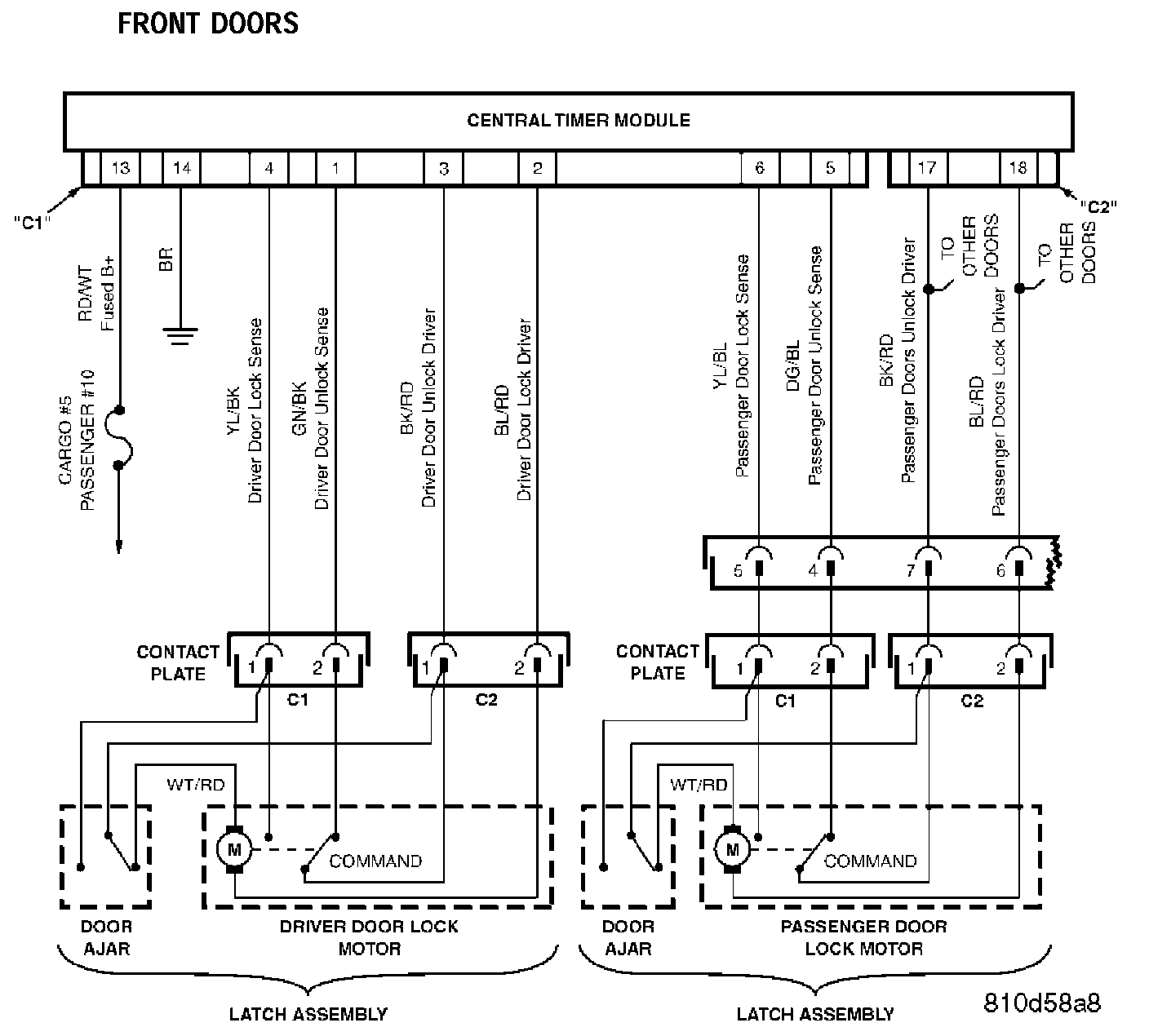

Front Doors:

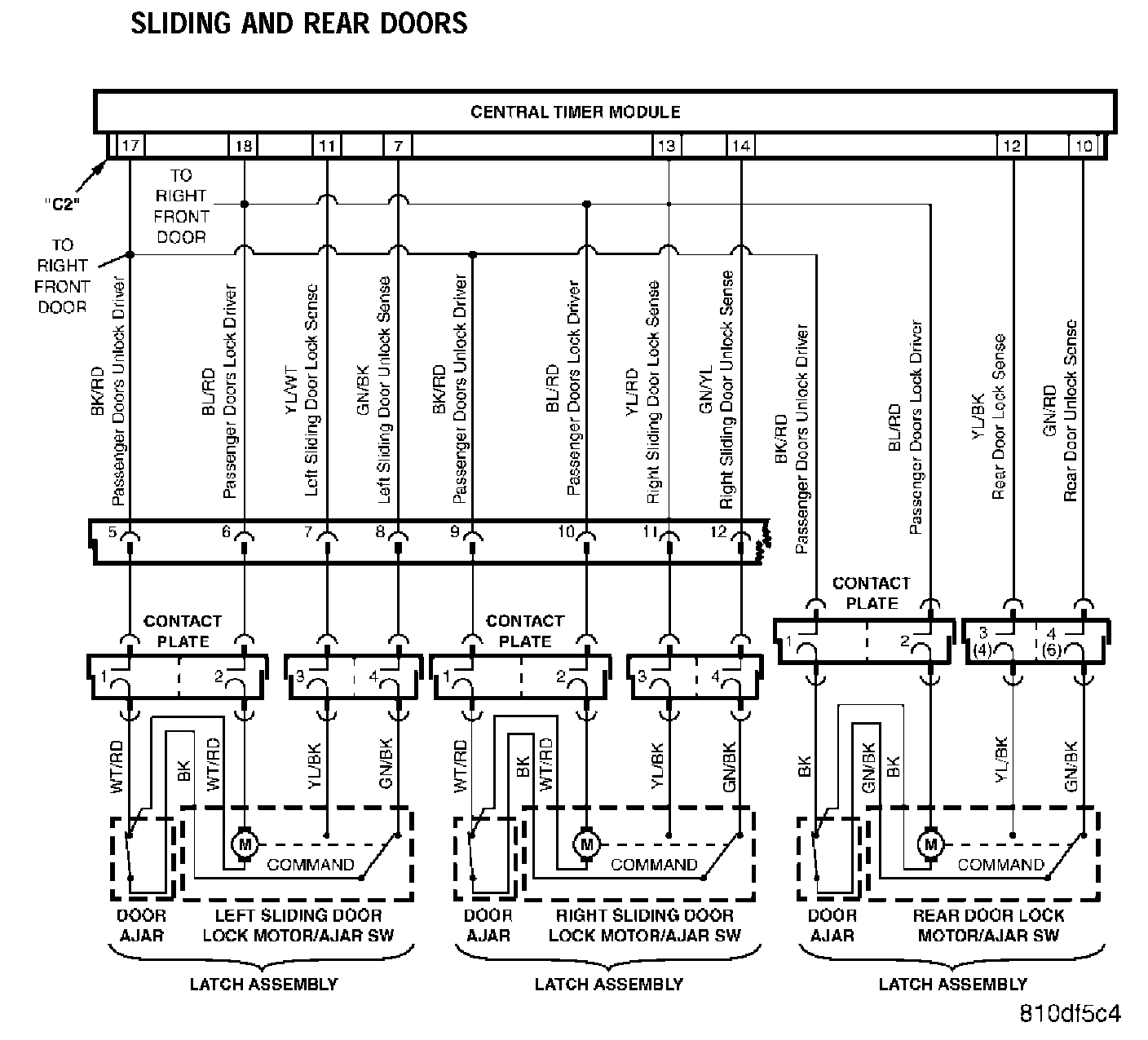

Sliding And Rear Doors:

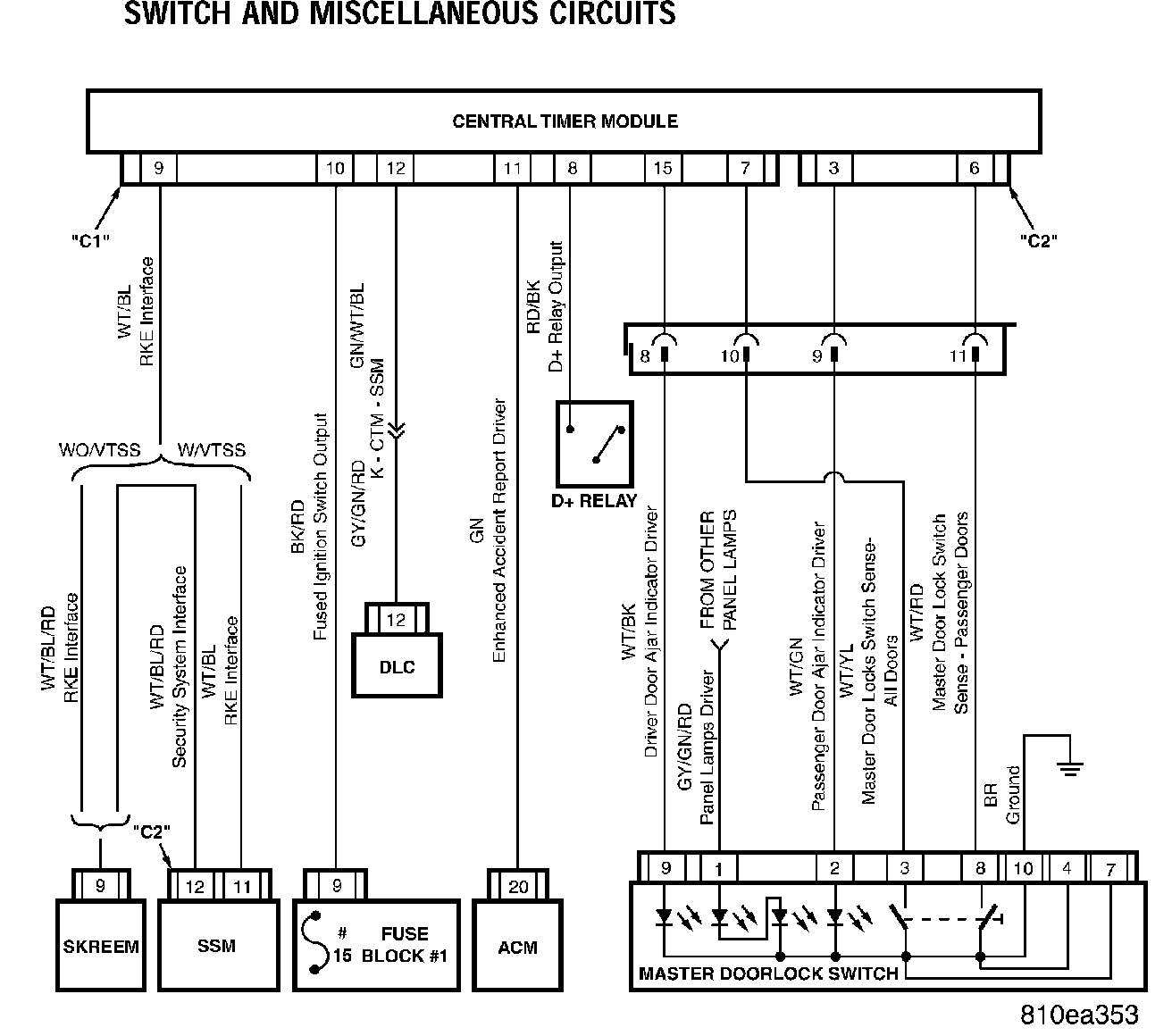

Switch And Miscellaneous Circuits:

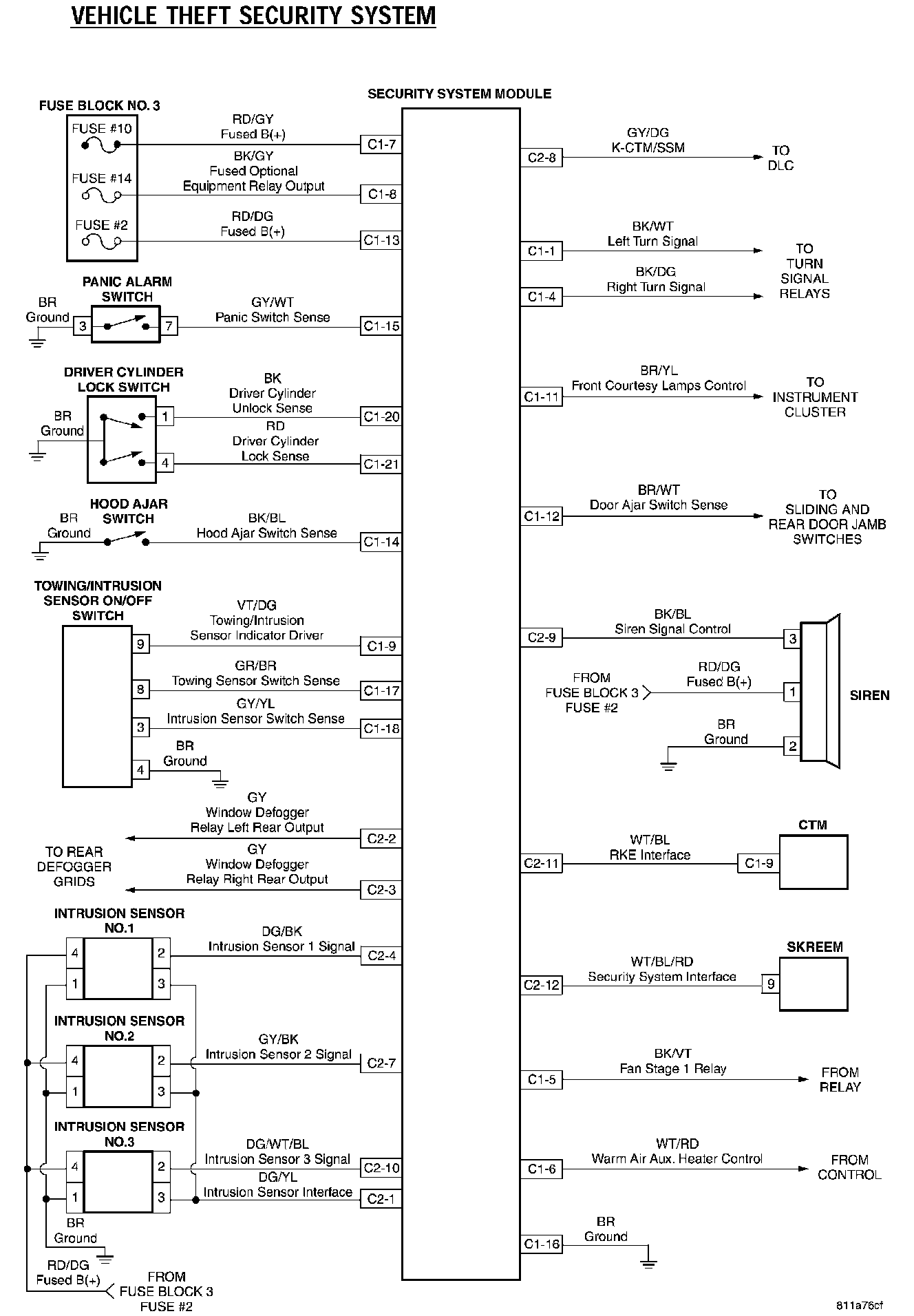

Vehicle Theft Security System:

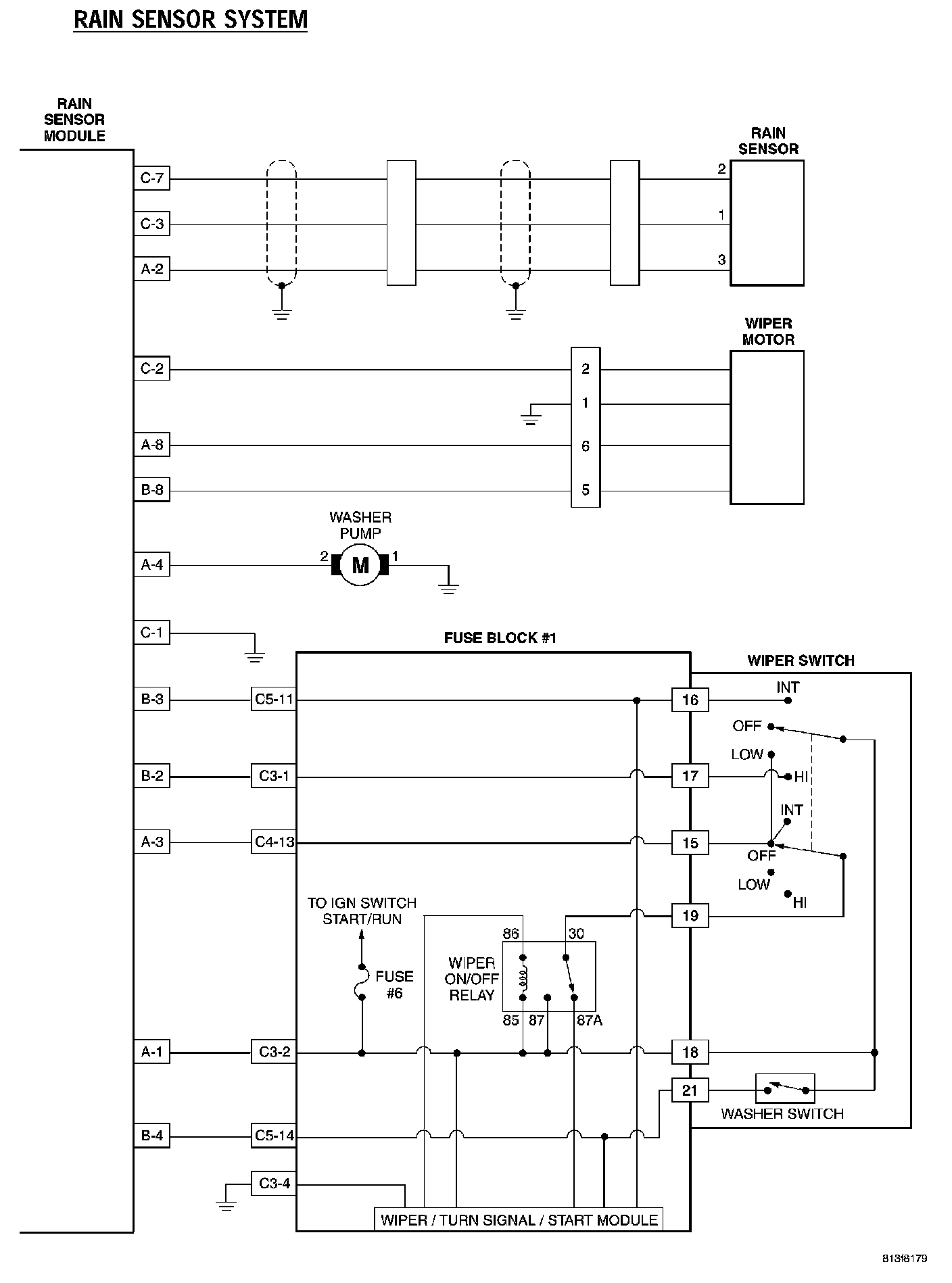

Rain Sensor System:
