No Response From Engine Control Module
Test 1 - Test 3:

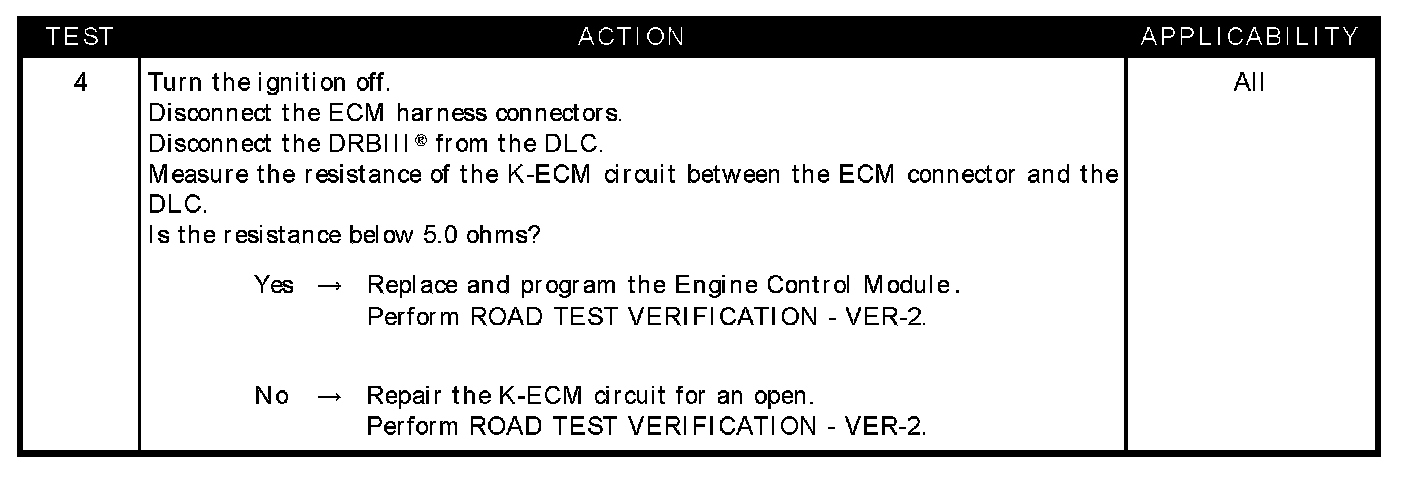

Test 4:
SYMPTOM
NO RESPONSE FROM ENGINE CONTROL MODULE
POSSIBLE CAUSES
- Check powers and grounds to the engine control module
- K-ECM circuit shorted to ground
- K-ECM circuit shorted to voltage
- K-ECM circuit open
- Engine control module
