Air Injection Pressure Sensor/Switch

Component ID: 439

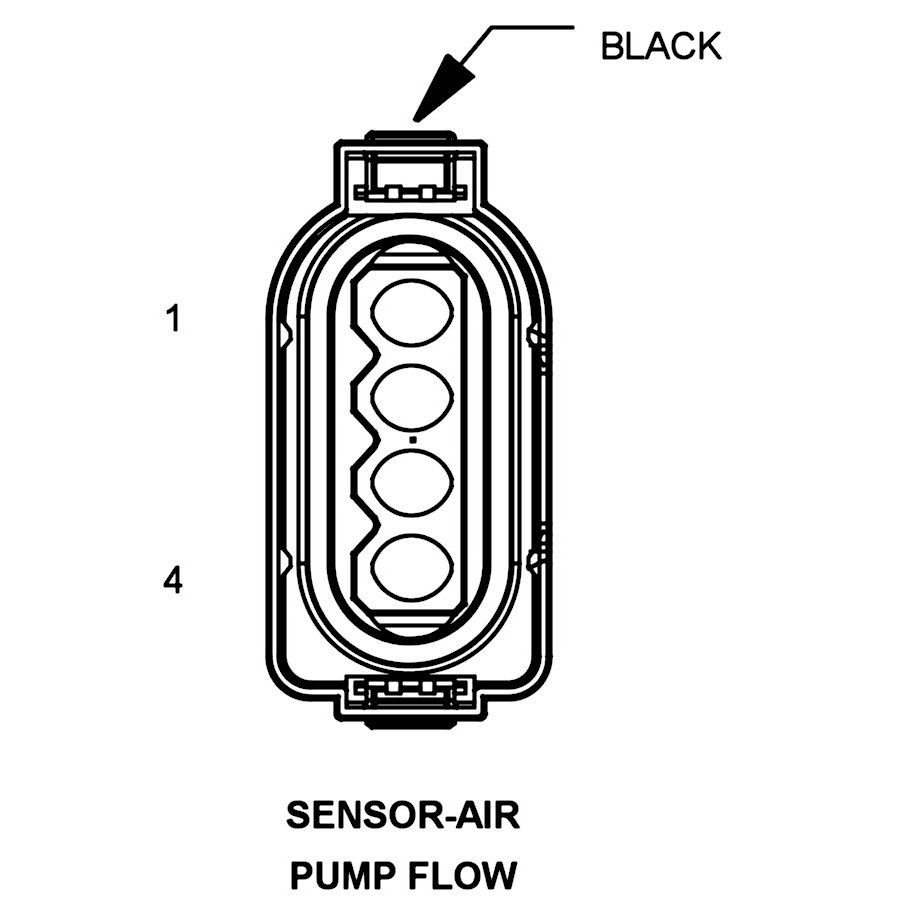

Component : SENSOR-AIR PUMP FLOW

Connector:
Name : SENSOR-AIR PUMP FLOW
Color : BLACK
# of pins : 4
Gender : FEMALE




Pin Description Circuit
1 GROUND 1773 20BR/WT
2 5 VOLT SUPPLY 1772 20VT
3 AIR PUMP FLOW SIGNAL 1771 20VT/DG
4 - -
