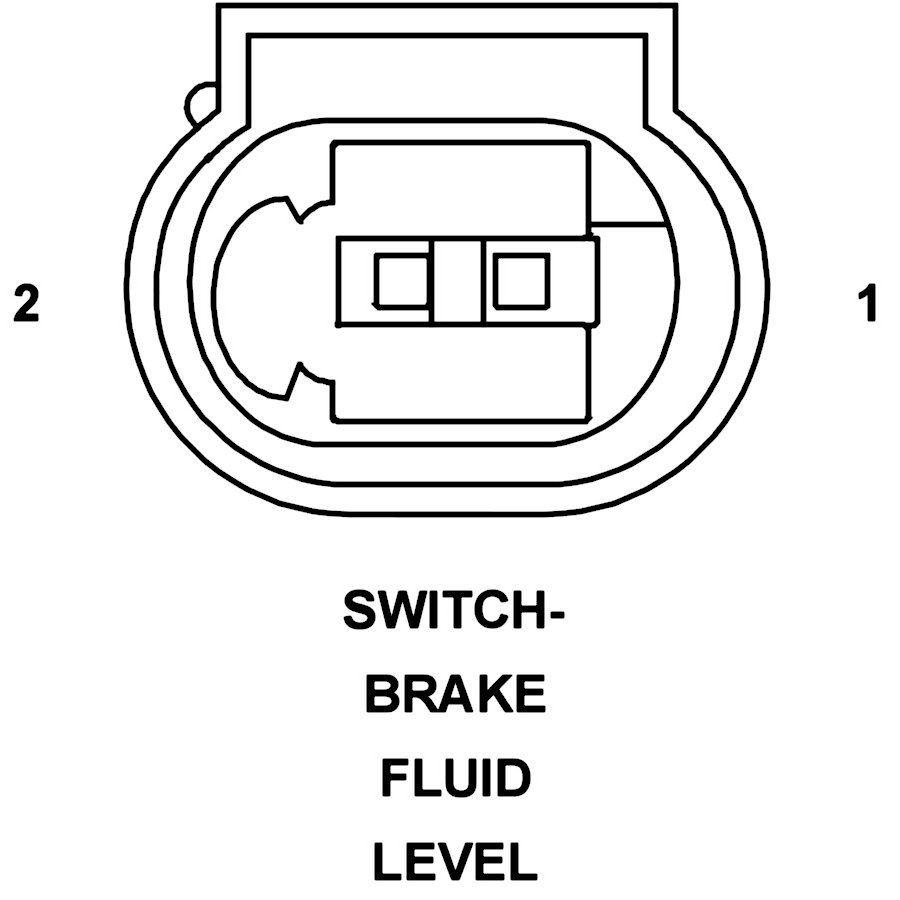

Brake Fluid Level Sensor/Switch

Component ID: 533
Component : SWITCH-BRAKE FLUID LEVEL

Connector:
Name : SWITCH-BRAKE FLUID LEVEL
Color :
# of pins : 2




Pin Description Circuit
1 - 592 20DG/DB
2 - 593 20DG/WT
