Brake Light Switch

Component ID: 551

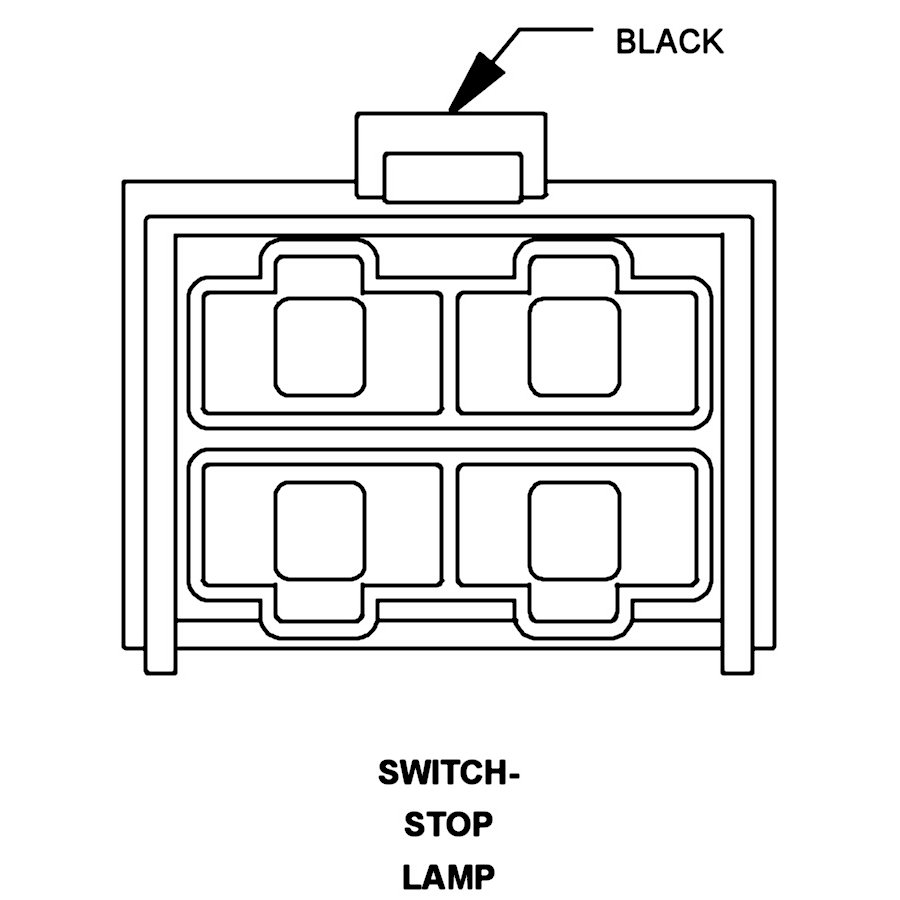

Component : SWITCH-STOPLAMP

Connector:
Name : SWITCH-STOPLAMP
Color : BLACK
# of pins : 4




Pin Description Circuit
1 - U365 18BK/BR
2 STOP LAMP SWITCH OUTPUT NC 2999 18BK/GY
2 STOP LAMP SWITCH OUTPUT NC 944 18BK/DB
2 - 3577 18BK/DB
3 - U365 18BK/BR
4 - U94 18BK/VT
4 - 31 18BK/VT
