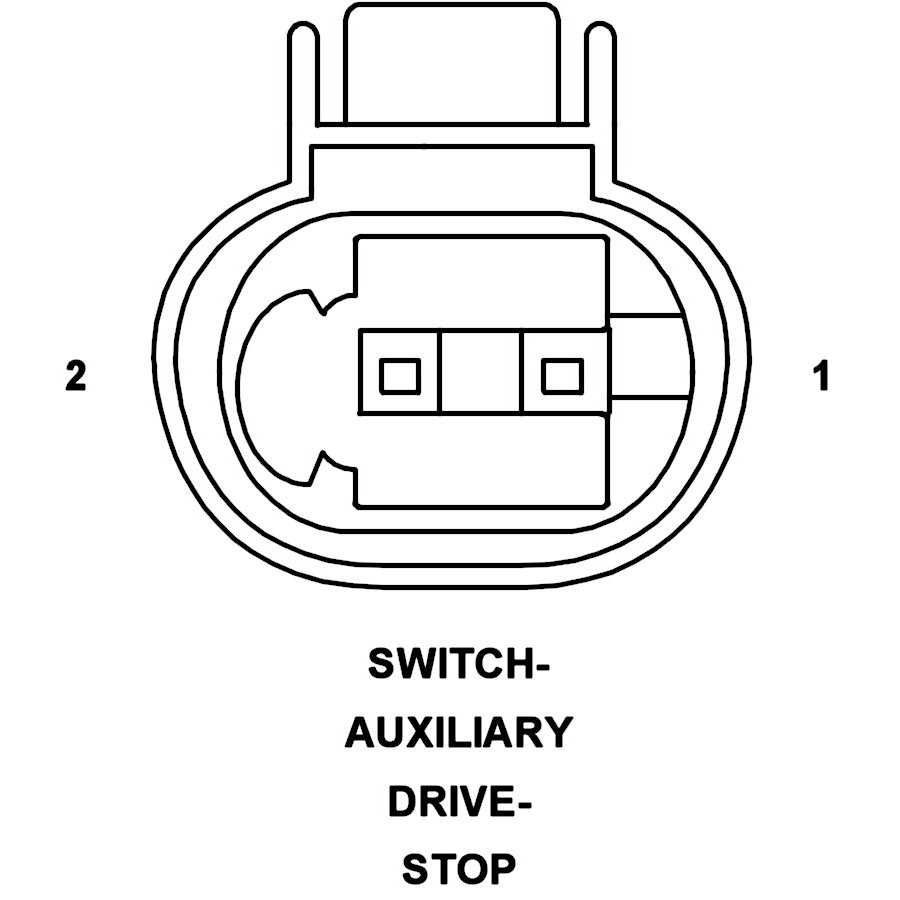

Brake Switch (Cruise Control)

Component ID: 529
Component : SWITCH-AUXILIARY DRIVE-STOP

Connector:
Name : SWITCH-AUXILIARY DRIVE-STOP
Color :
# of pins : 2




Pin Description Circuit
1 - 3623 18BR/WT
2 GROUND 3624 18BR
