Lamp And Switch-Ceiling 2-Rear

Component ID: 215

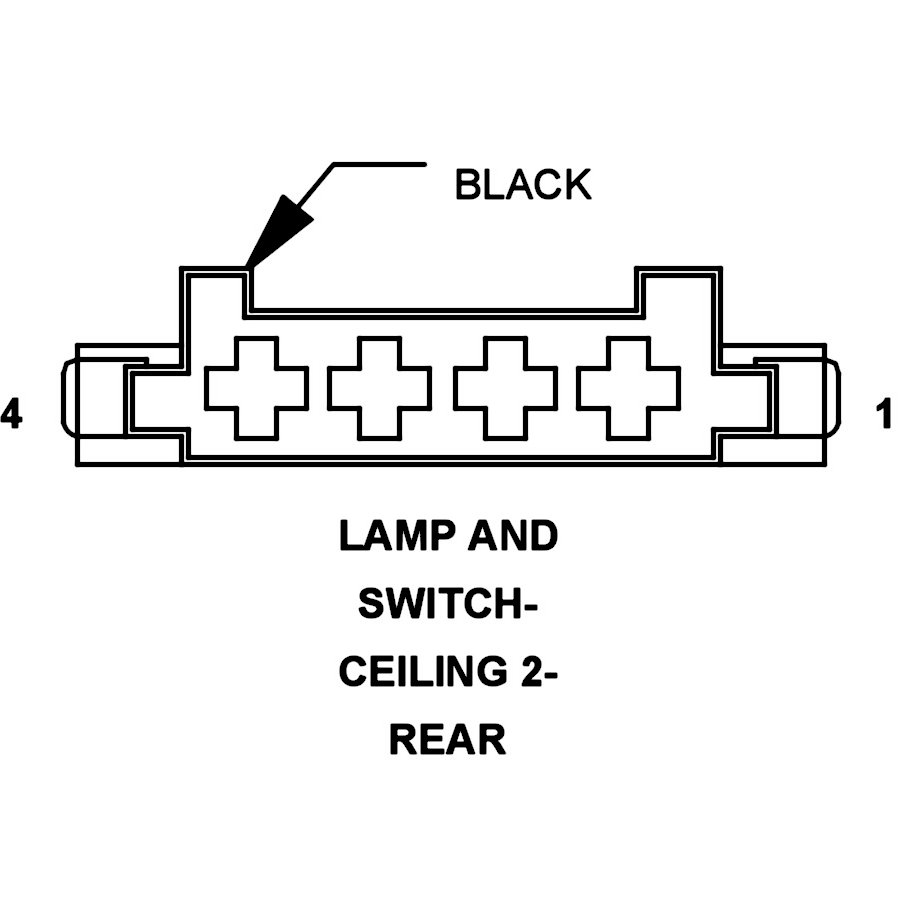

Component : LAMP AND SWITCH-CEILING 2-REAR

Connector:
Name : LAMP AND SWITCH-CEILING 2-REAR
Color : BLACK
# of pins : 4




Pin Description Circuit
1 GROUND U1036 18BR/DB
2 - -
3 FUSED B(+) U41 18RD
4 DOOR AJAR SWITCH SENSE U6110 18GY/BR
