Crankshaft Position Sensor

Component ID: 451
Component : SENSOR-CRANKSHAFT POSITION

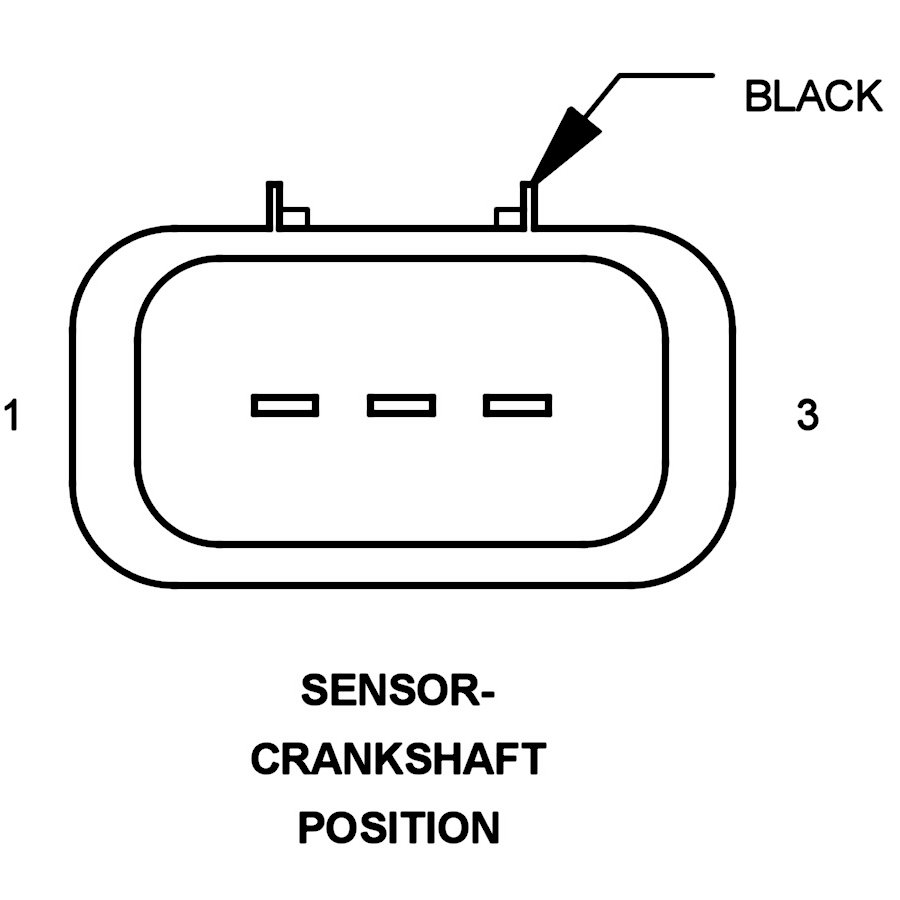

Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color : BLACK
# of pins : 3




Pin Description Circuit
1 SENSOR GROUND 1609 20DB/DG
2 CKP SIGNAL 1607 20DG/WT
3 5 VOLT SUPPLY U778 20WT/RD

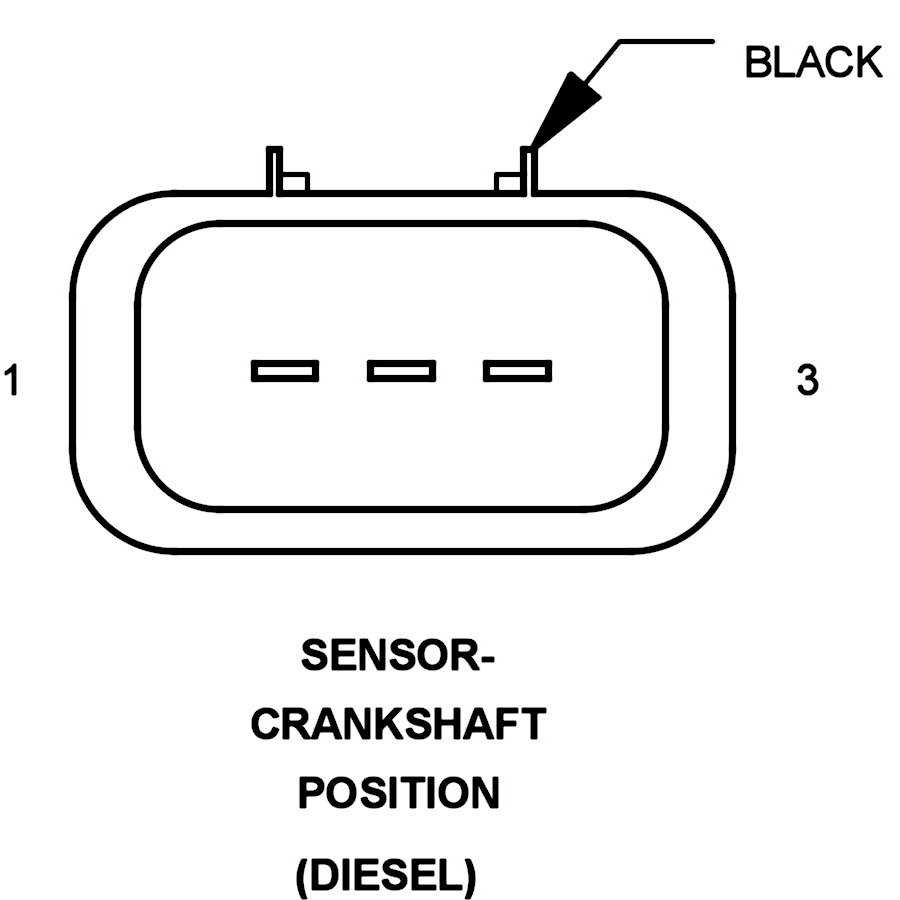

Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)




Pin Description Circuit
1 CRANKSHAFT POSITION SENSOR SIGNAL 2 1299 20DB/GY
2 CRANKSHAFT POSITION SENSOR SIGNAL 1 1300 20GY/BK
3 CRANKSHAFT POSITION SENSOR 5 VOLT SUPPLY 1472 20RD/DB
