Switch-Auxiliary Drive-On

Component ID: 528

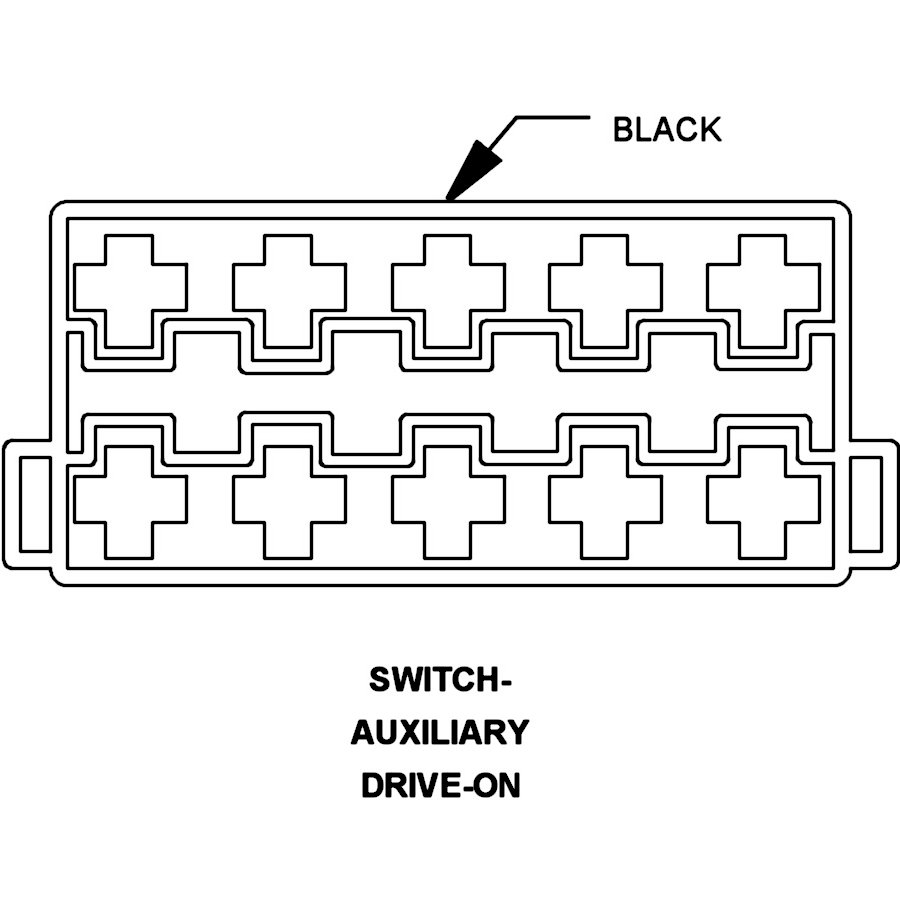

Component : SWITCH-AUXILIARY DRIVE-ON

Connector:
Name : SWITCH-AUXILIARY DRIVE-ON
Color : BLACK
# of pins : 10




Pin Description Circuit
1 - U815 18GY/DB
2 - -
3 - 317 18BR/YL
4 - -
5 - -
6 - -
7 - U363 18BK/RD
8 - -
9 - 318 18BR/WT
10 GROUND 316 18BR
