Switch-Speed Control

Component ID: 550

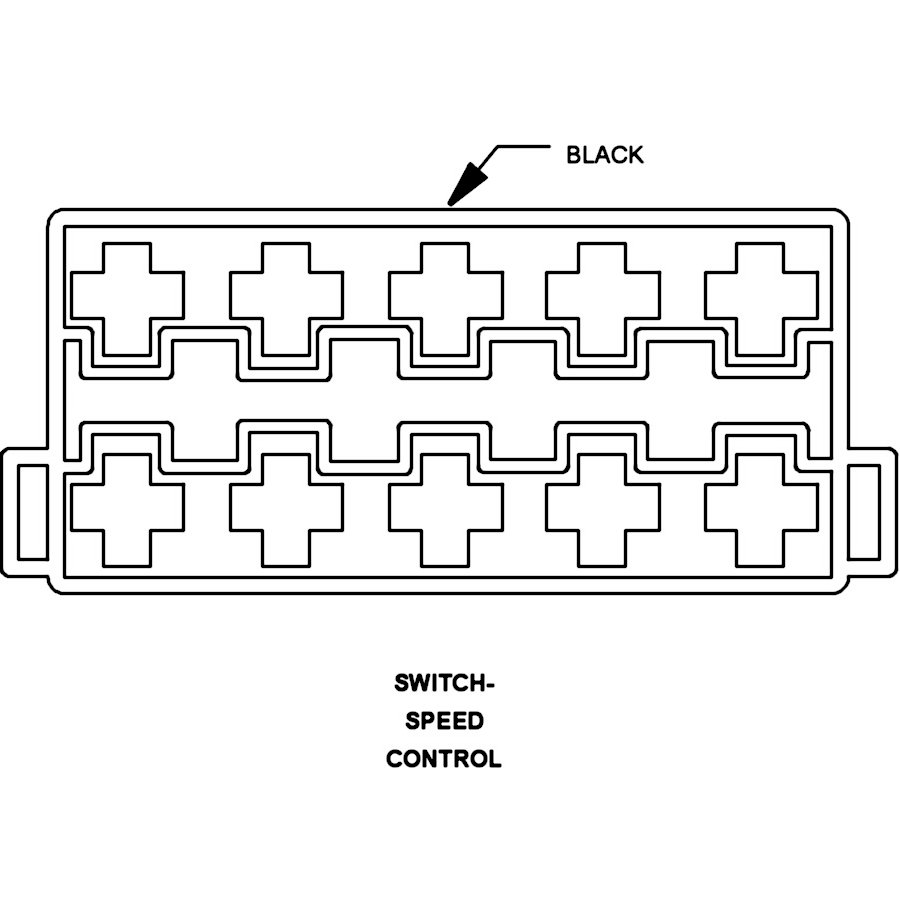

Component : SWITCH-SPEED CONTROL

Connector:
Name : SWITCH-SPEED CONTROL
Color : BLACK
# of pins : 10




Pin Description Circuit
1 TERMINAL 58D U815 18GY/DB
2 - -
3 - -
4 - -
5 - -
6 - -
7 - 320 18BK/GY
8 - -
9 - -
10 GROUND 312 18BR
