EGR Valve Position Sensor

Component ID: 453

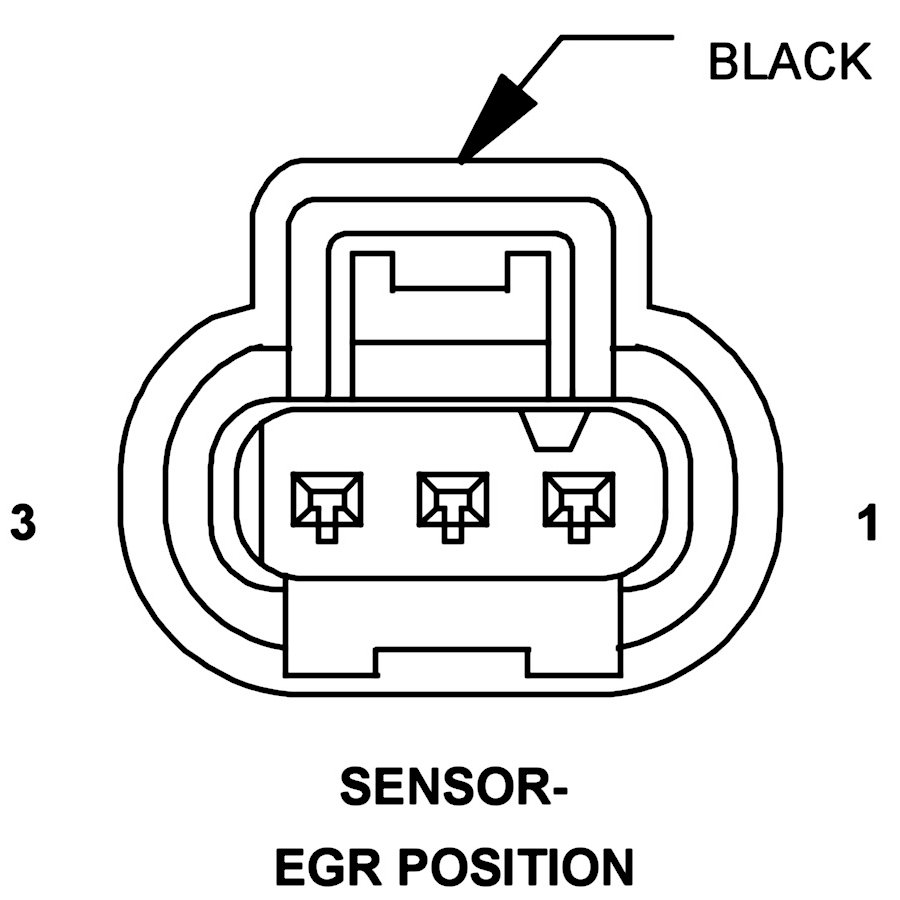

Component : SENSOR-EGR POSITION

Connector:
Name : SENSOR-EGR POSITION
Color : BLACK
# of pins : 3




Pin Description Circuit
1 - U760 20RD/YL
2 - 4134 20VT/GY
3 - 4133 20GY/BR
