Injector-Fuel 1

Component ID: 206
Component : INJECTOR-FUEL 1

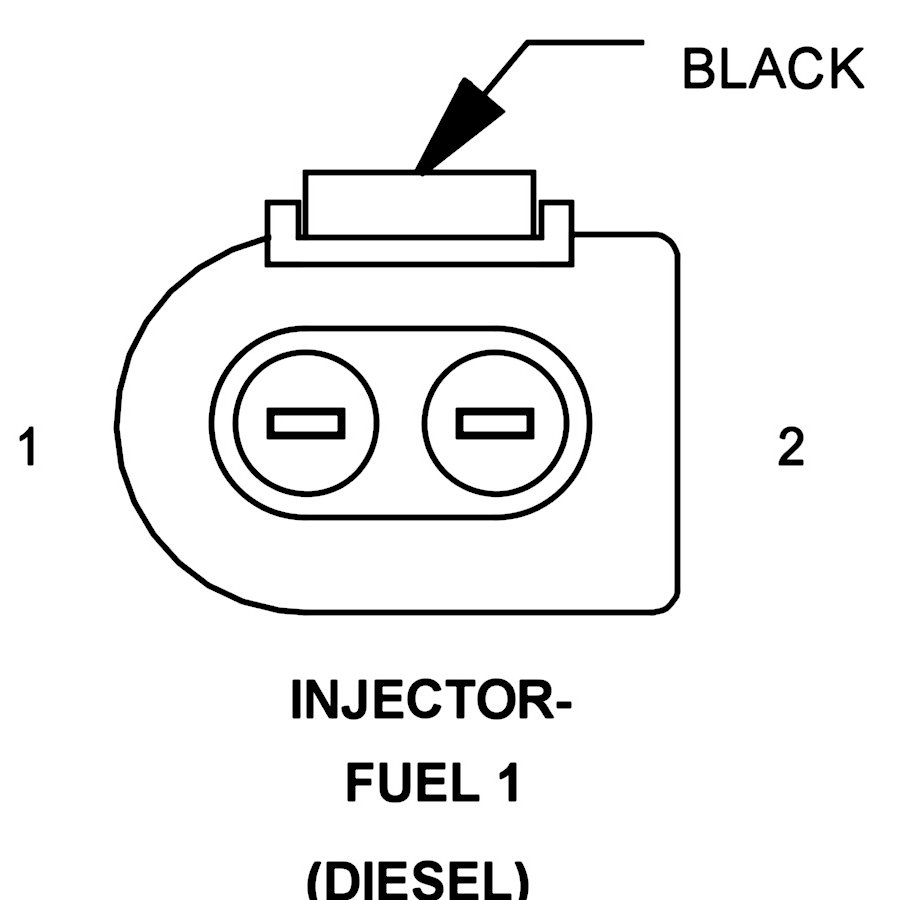

Connector:
Name : INJECTOR-FUEL 1
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 FUEL INJECTOR 1 LOW-SIDE CONTROL 1346 14WT
2 FUEL INJECTOR 1 HIGH-SIDE CONTROL 1347 14BK/WT

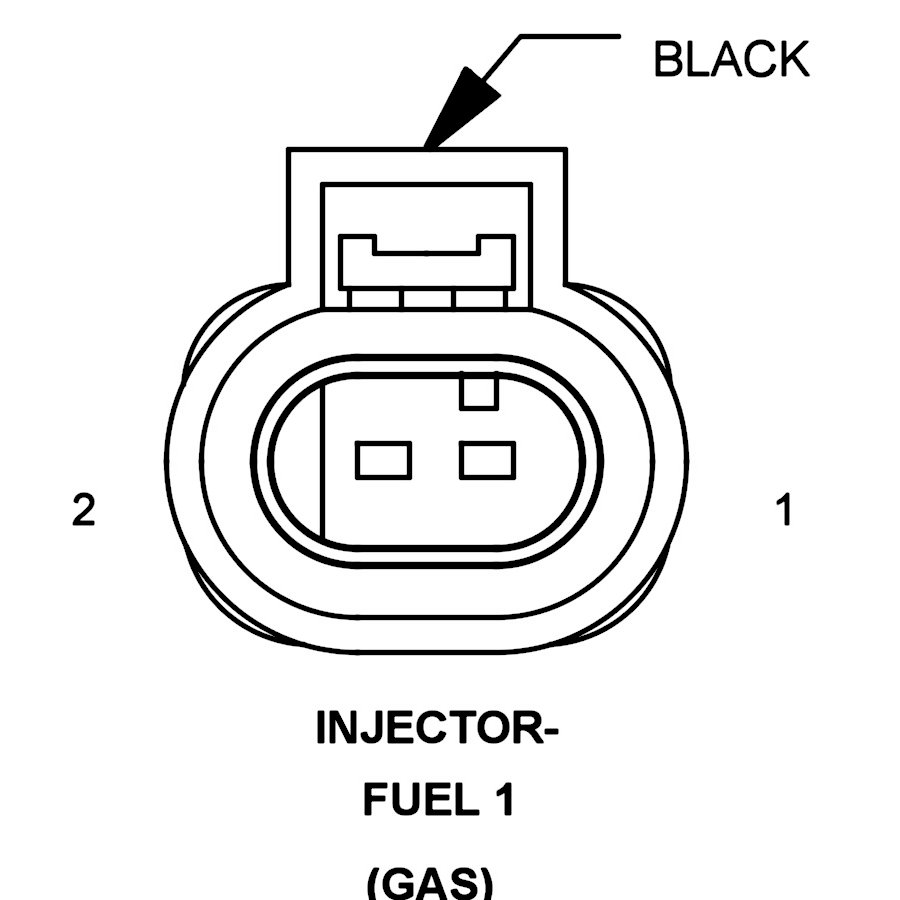

Connector:
Name : INJECTOR-FUEL 1
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Description Circuit
1 FUSED MAIN RELAY OUTPUT U795J 18BK/WT
2 INJECTOR 1 CONTROL 1566 18BK
