Fuel Temperature Sensor

Component ID: 464

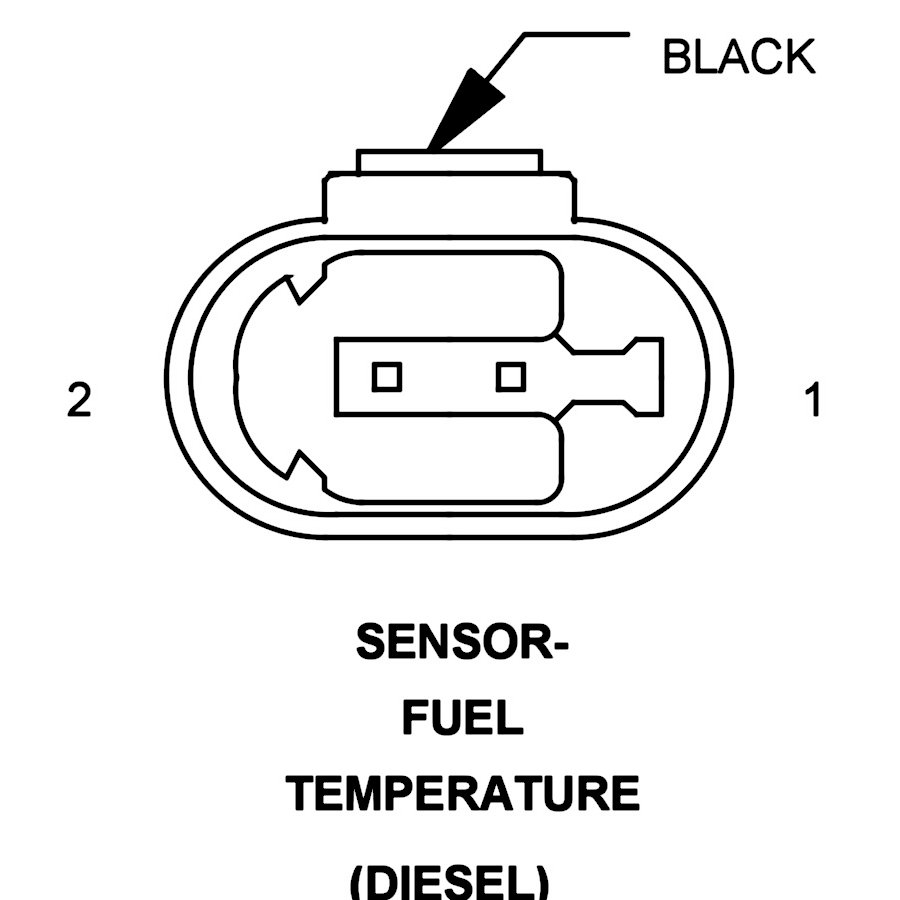

Component : SENSOR-FUEL TEMPERATURE

Connector:
Name : SENSOR-FUEL TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)
Gender : FEMALE




Pin Description Circuit
1 FUEL TEMPERATURE SENSOR GROUND 1286 20WT/YL
2 FUEL TEMPERATURE SENSOR SIGNAL 1287 20WT/BR
