Oil Temperature Sensor/Switch, Engine

Component ID: 479

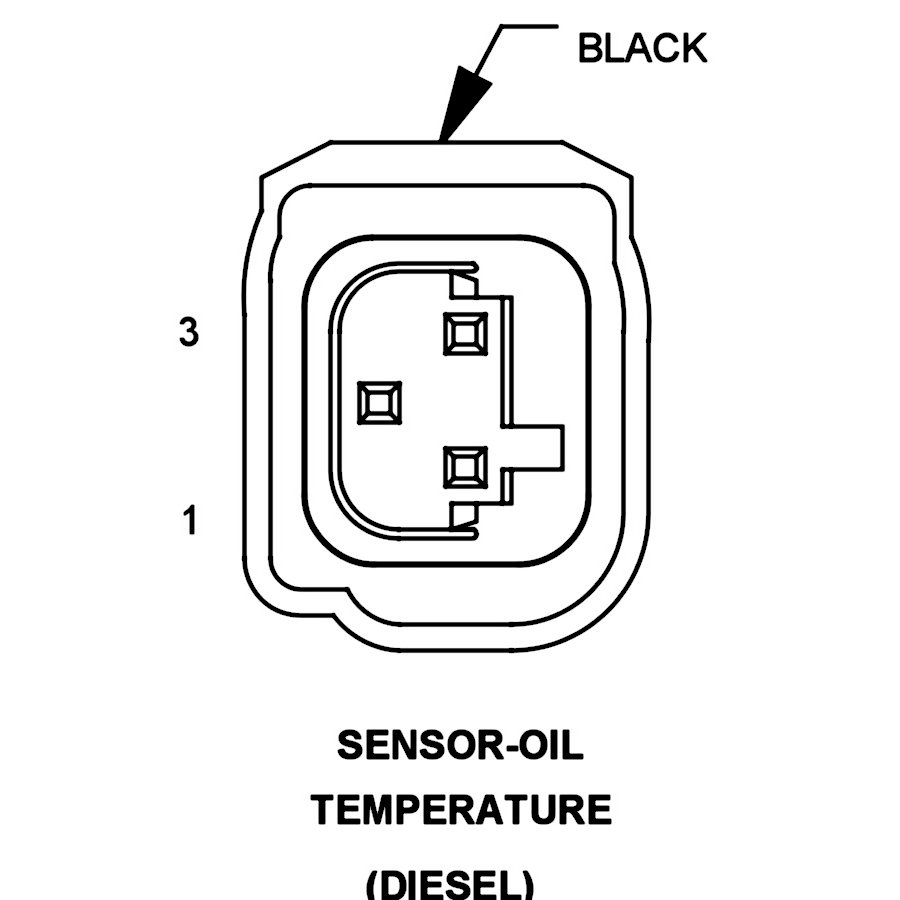

Component : SENSOR-OIL TEMPERATURE

Connector:
Name : SENSOR-OIL TEMPERATURE
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)
Gender : FEMALE




Pin Description Circuit
1 - 1298 20GY/DB
2 - 3272 20BR/BK
3 - 1297 20PK/GY
