PCV Heater

Component ID: 194

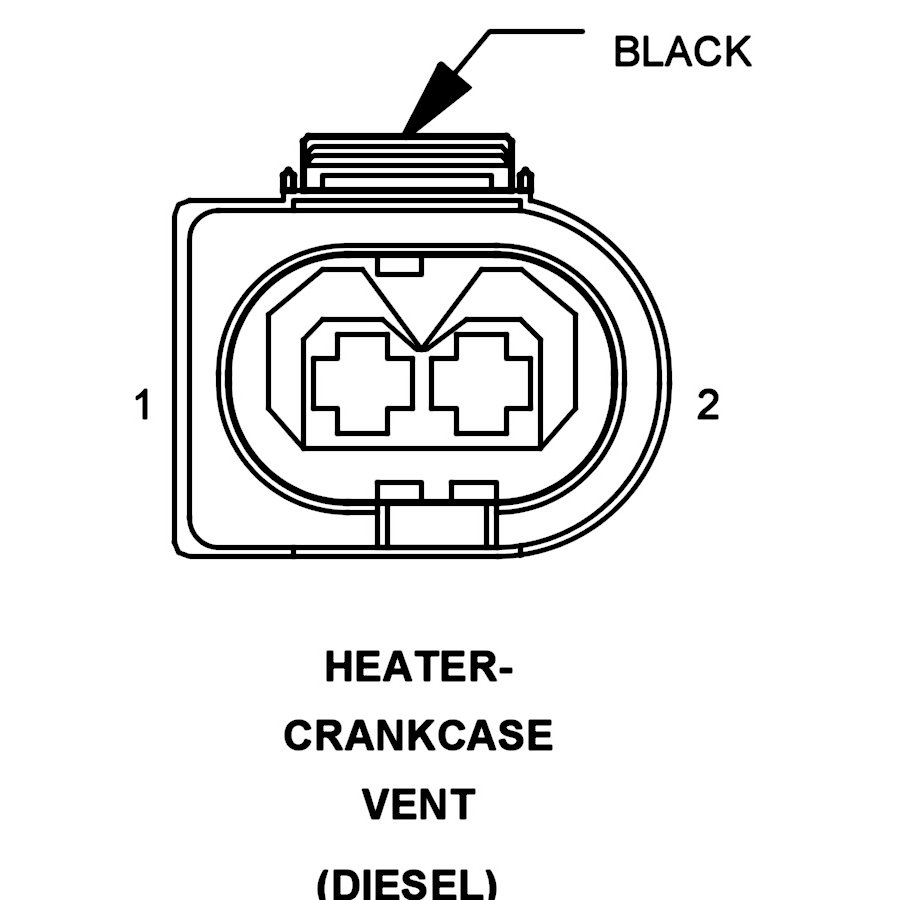

Component : HEATER-CRANKCASE VENT

Connector:
Name : HEATER-CRANKCASE VENT
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 CRANKCASE VENT HEATER CONTROL 1309 18BK/BR
2 FUSED MAIN RELAY OUTPUT U748 18BK/DG
