Latch-Door-Rear

Component ID: 249
Component : LATCH-DOOR-REAR

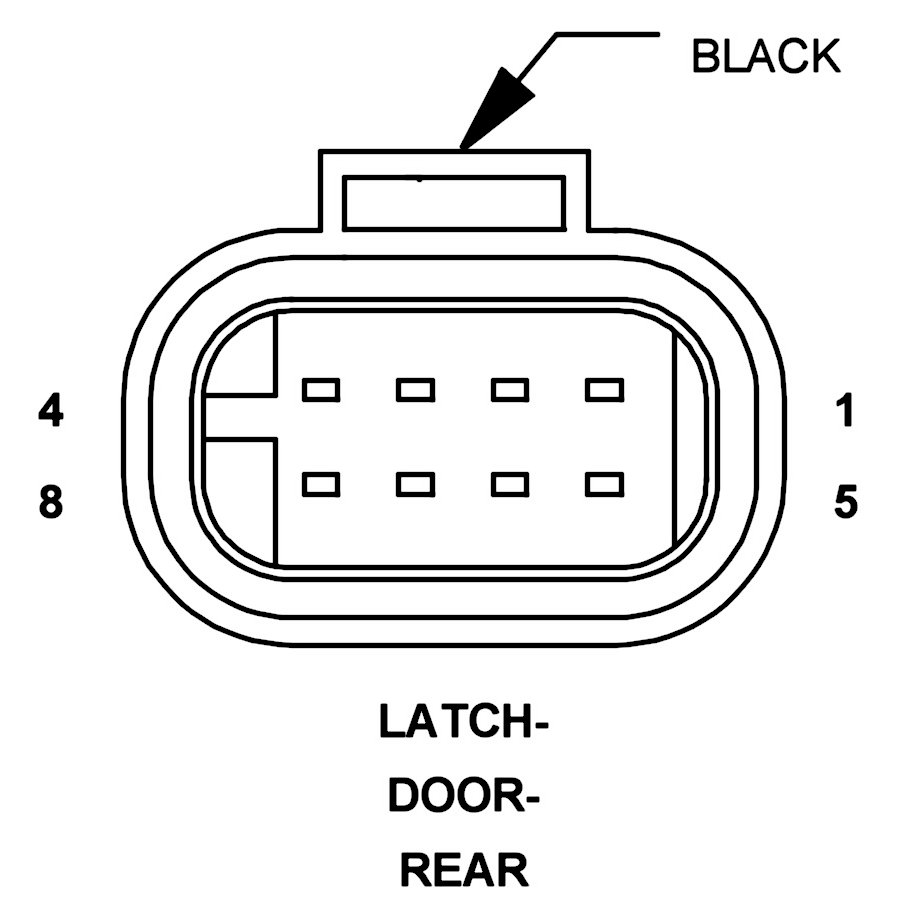

Connector:
Name : LATCH-DOOR-REAR
Color : BLACK
# of pins : 8




Pin Description Circuit
1 - -
2 REAR DOOR LOCK POSITION SENSE 445 18DB/WT
3 - -
4 - -
5 REAR/SIDE DOORS UNLOCK DRIVER 444 18DB/BK
6 REAR/SIDE DOORS LOCK DRIVER U8217 18DB/BR
7 REAR/SIDE DOORS LOCK DRIVER U8217 18DB/BR
8 REAR DOOR AJAR SWITCH SENSE 1810 18DB/DG
