Sensor-Wheel Speed-Right Front

Component ID: 504

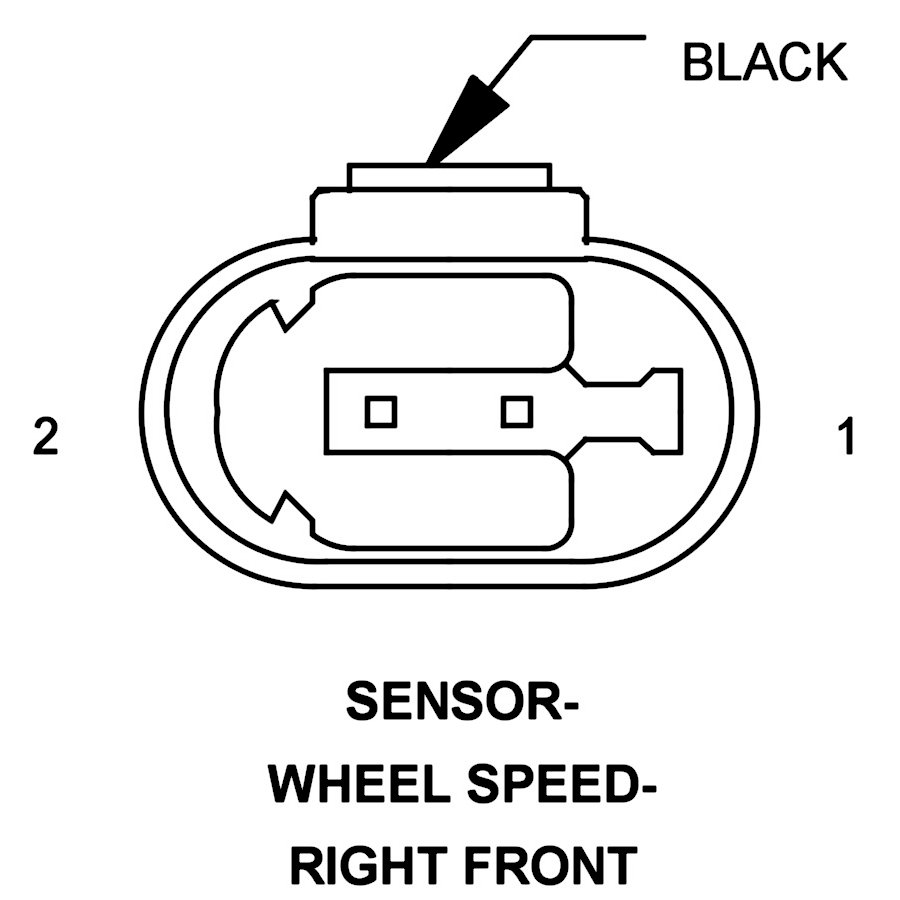

Component : SENSOR-WHEEL SPEED-RIGHT FRONT

Connector:
Name : SENSOR-WHEEL SPEED-RIGHT FRONT
Color : BLACK
# of pins : 2




Pin Description Circuit
1 RIGHT FRONT WHEEL SPEED SENSOR (+) 26 20WT
2 RIGHT FRONT WHEEL SPEED SENSOR (-) 25 20WT/YL
