Motor-Wiper-Rear Door-Left

Component ID: 291

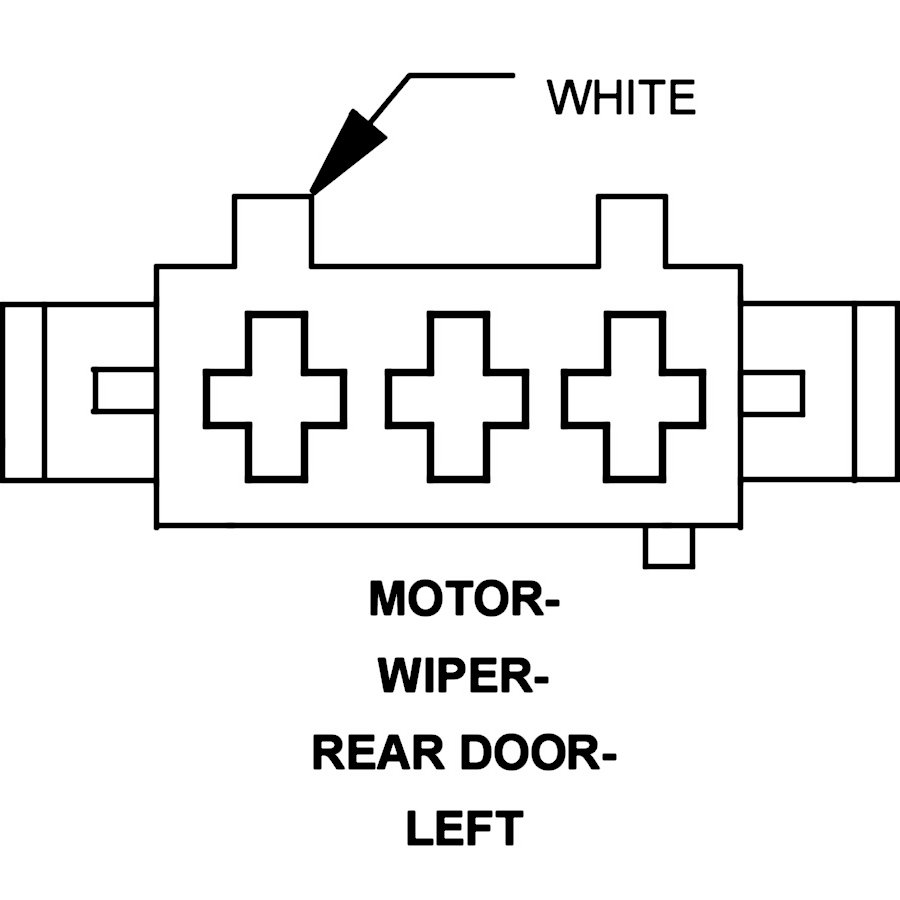

Component : MOTOR-WIPER-REAR DOOR-LEFT

Connector:
Name : MOTOR-WIPER-REAR DOOR-LEFT
Color : WHITE
# of pins : 3




Pin Description Circuit
1 GROUND 459 14BK/VT
2 WIPER ON/OFF RELAY OUTPUT 462 18BR/DG
3 FUSED IGNITION SWITCH OUTPUT (RUN-START) 463 14BR
