Front Blower Motor Power Module - Installation

INSTALLATION

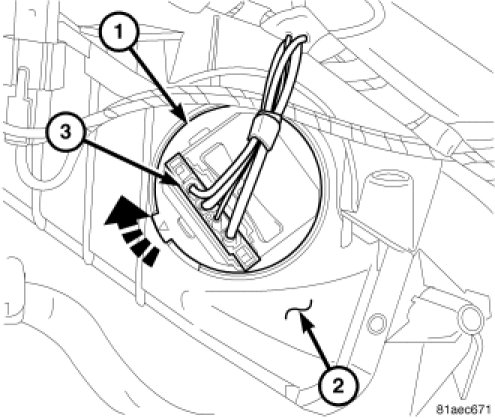

1. Position the blower motor power module (1) into the HVAC housing (2).
2. Rotate the blower motor power module until it is fully seated in the HVAC housing. Make sure the blower motor power module is fully engaged to the housing.
3. Connect the wire harness connector (3) to the blower motor power module.
4. Install the glove box.
5. Reconnect the negative battery cable.
