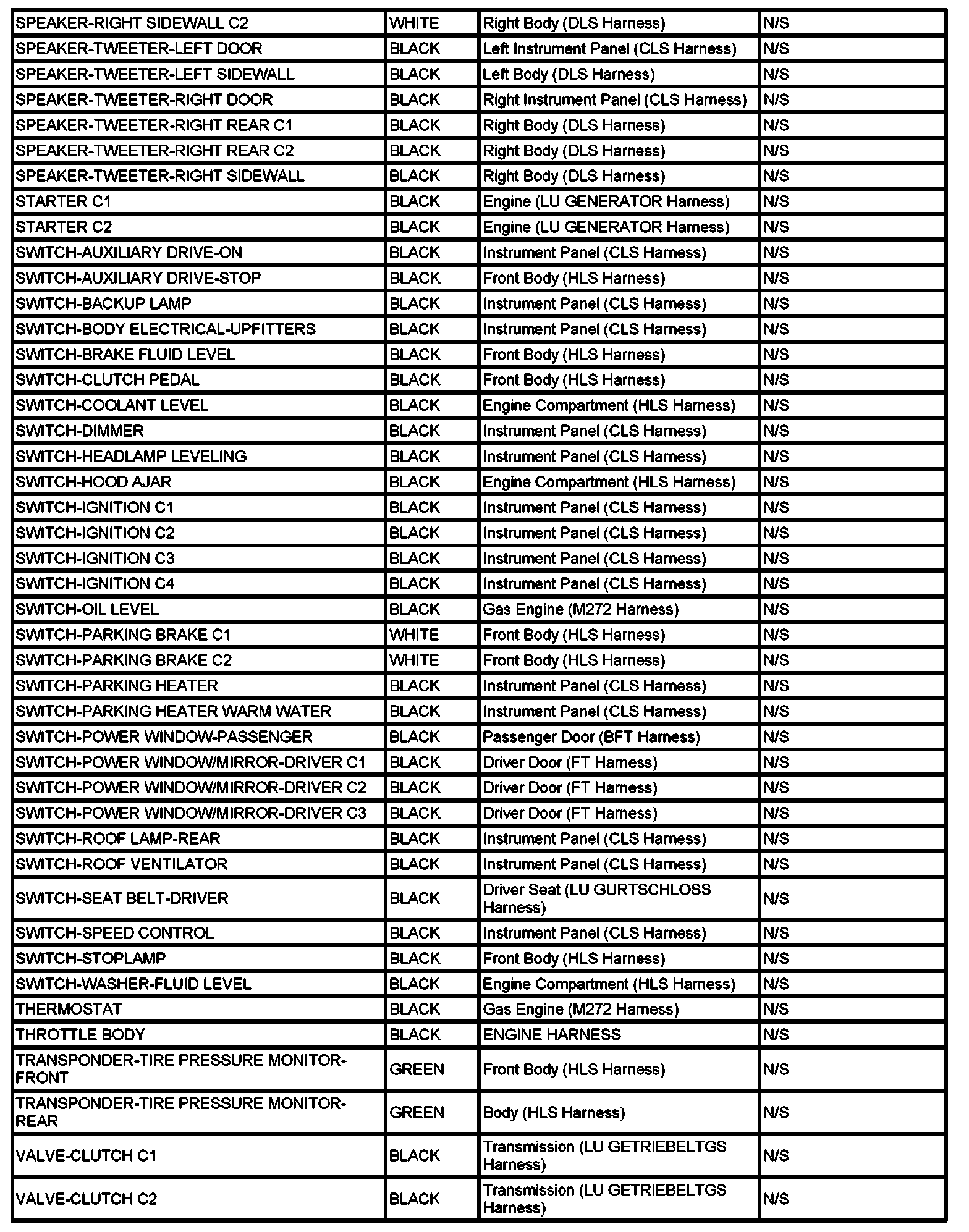

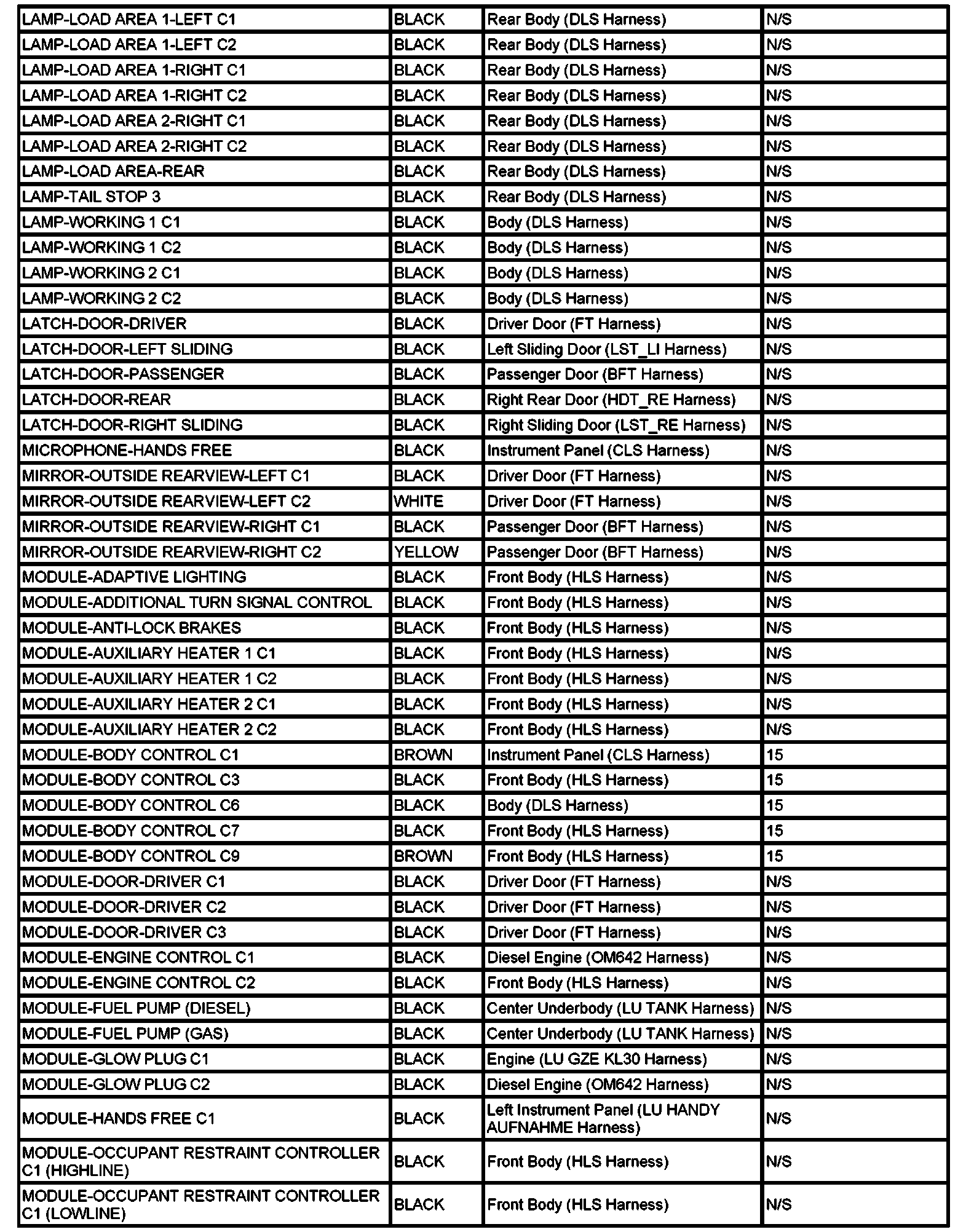

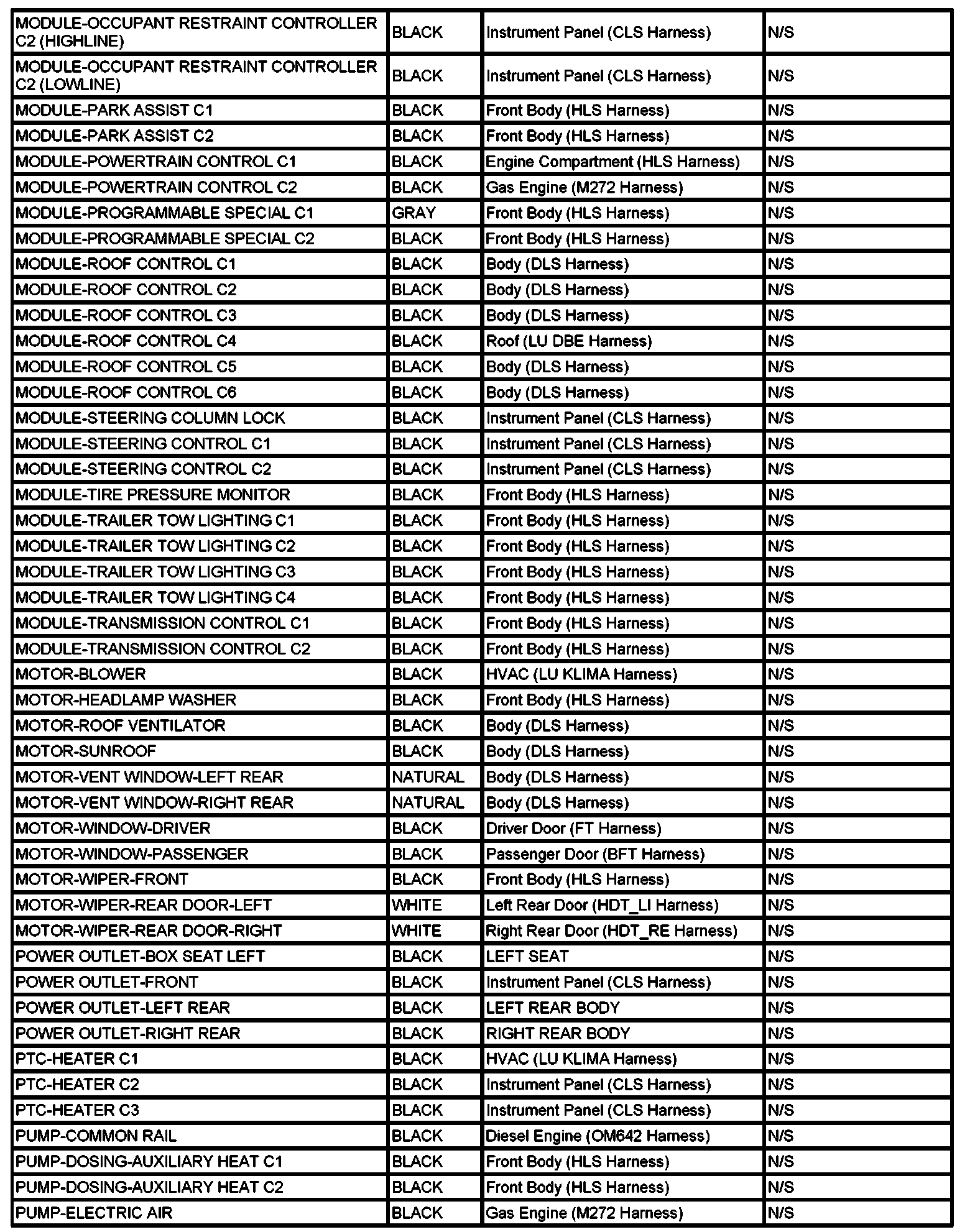

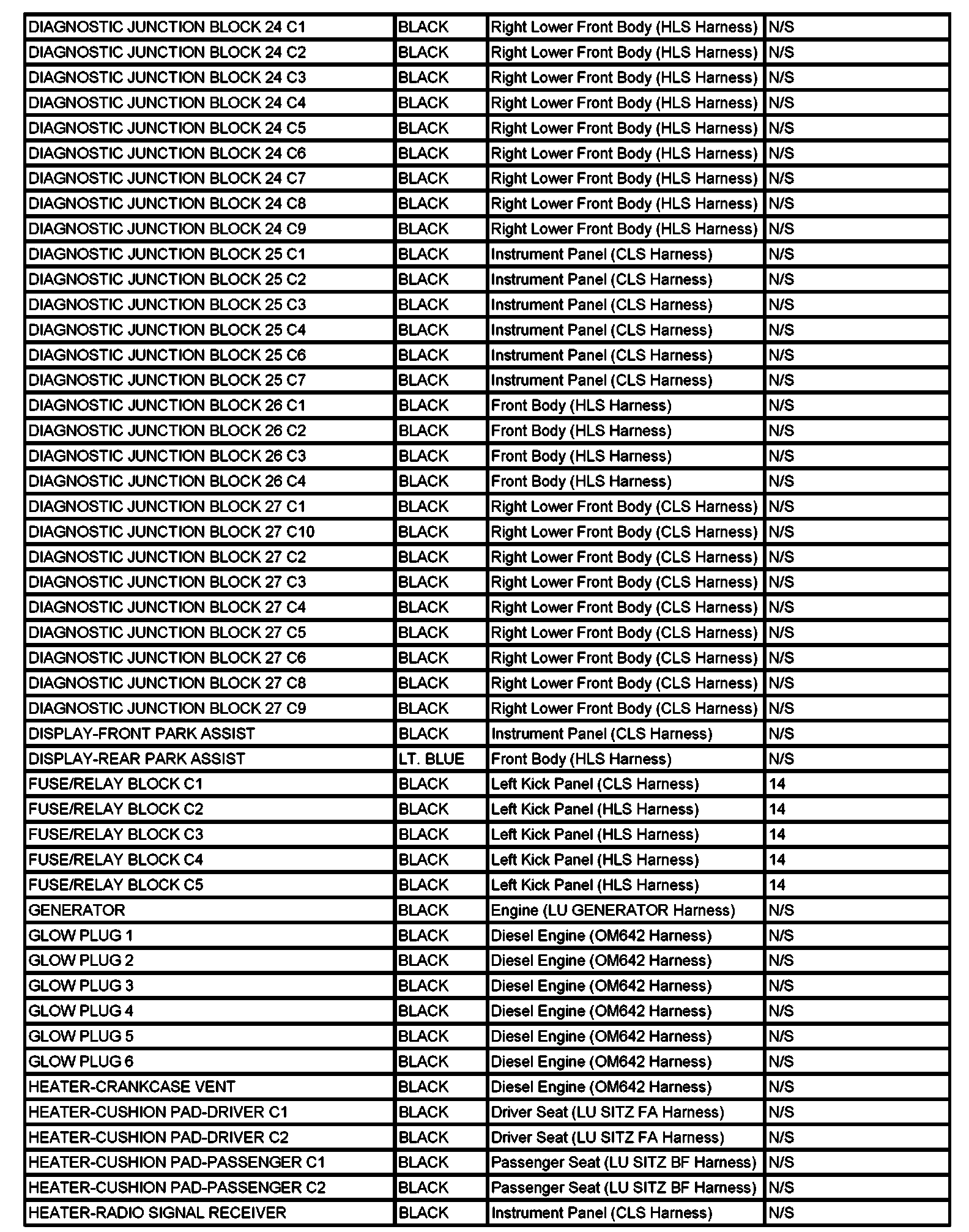

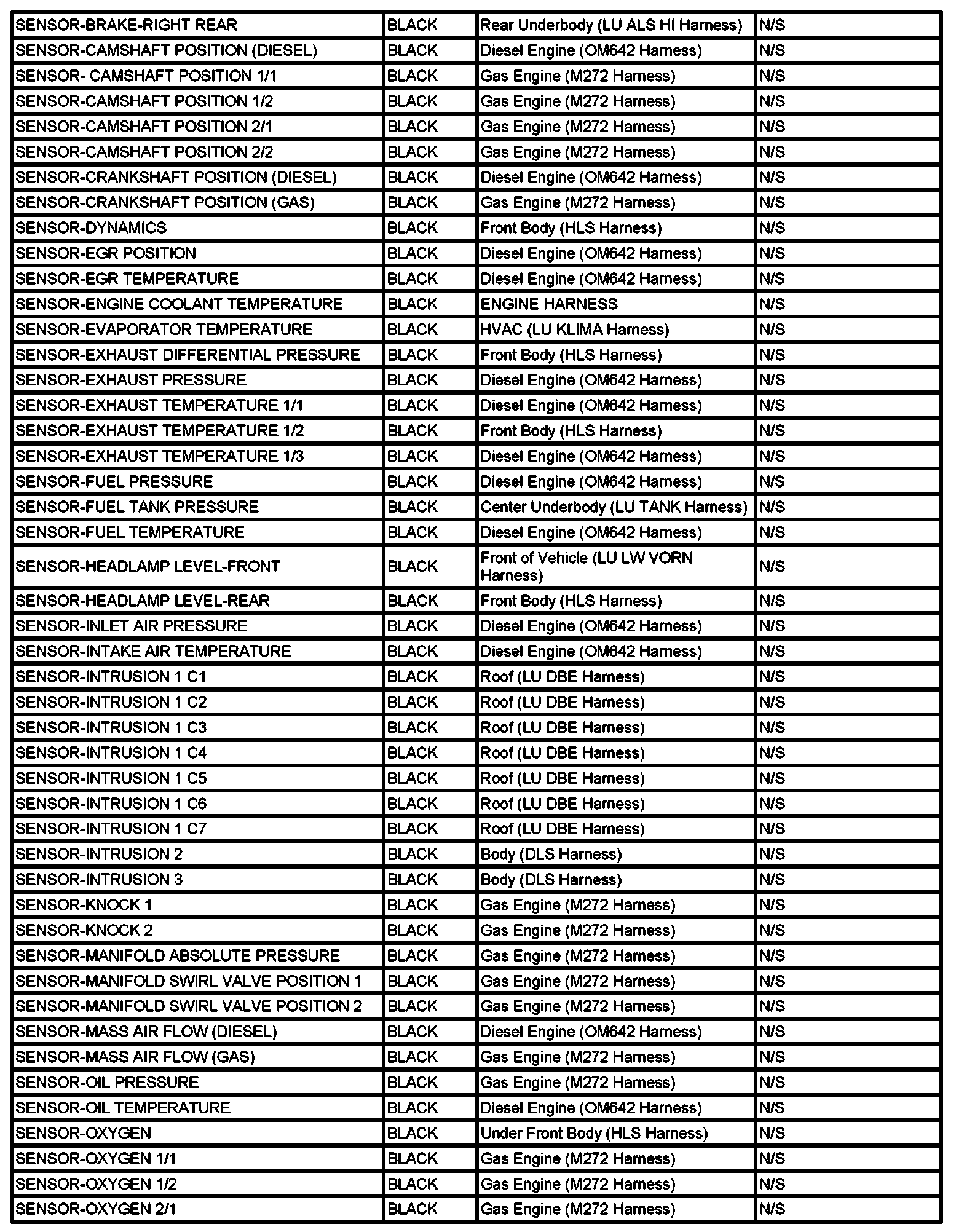

Connector Location Index
PLEASE NOTE:If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.
The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.
The abbreviation N/S means Not Shown in the illustrations.

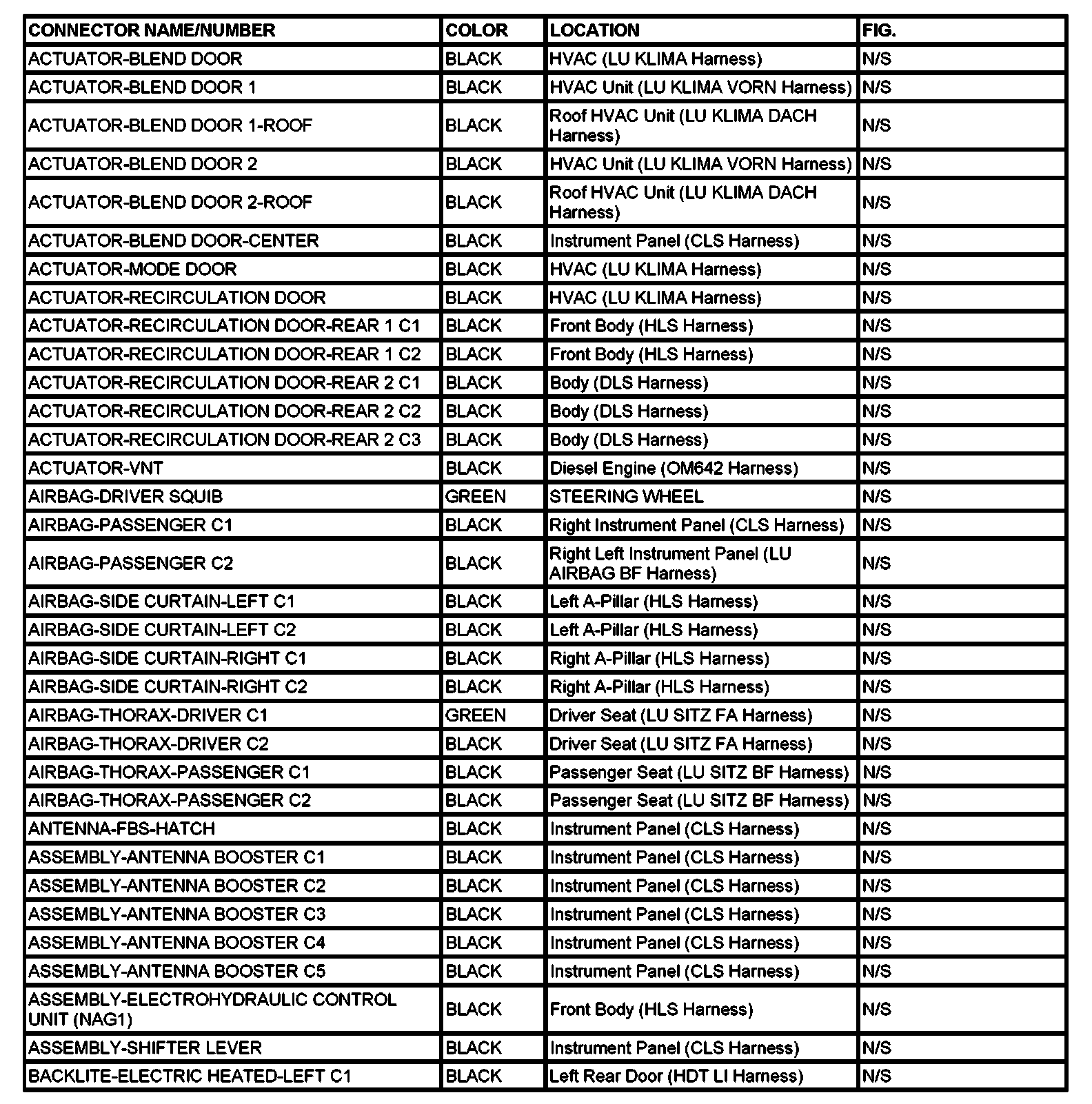

Ac-Ba:

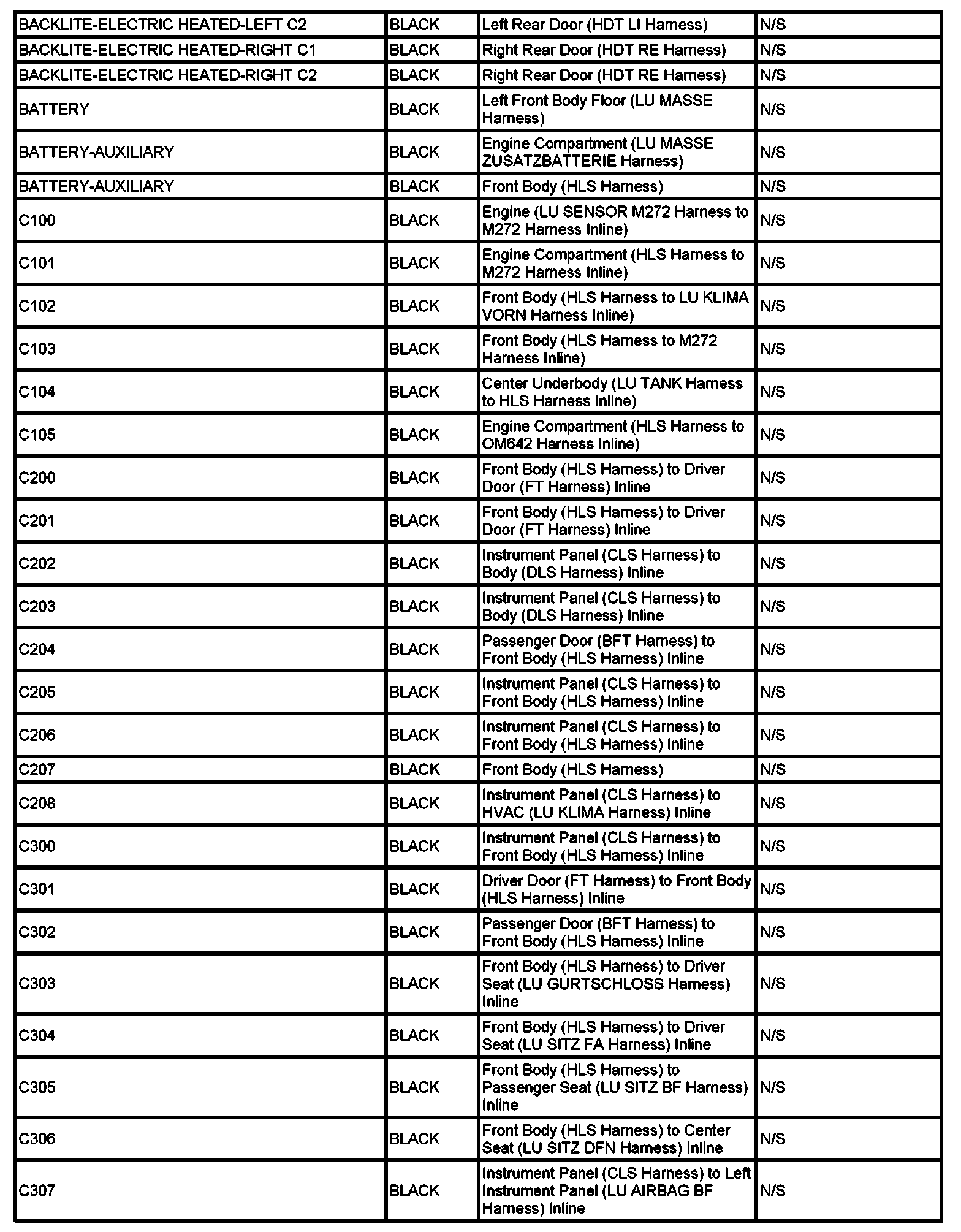

Ba-C307:

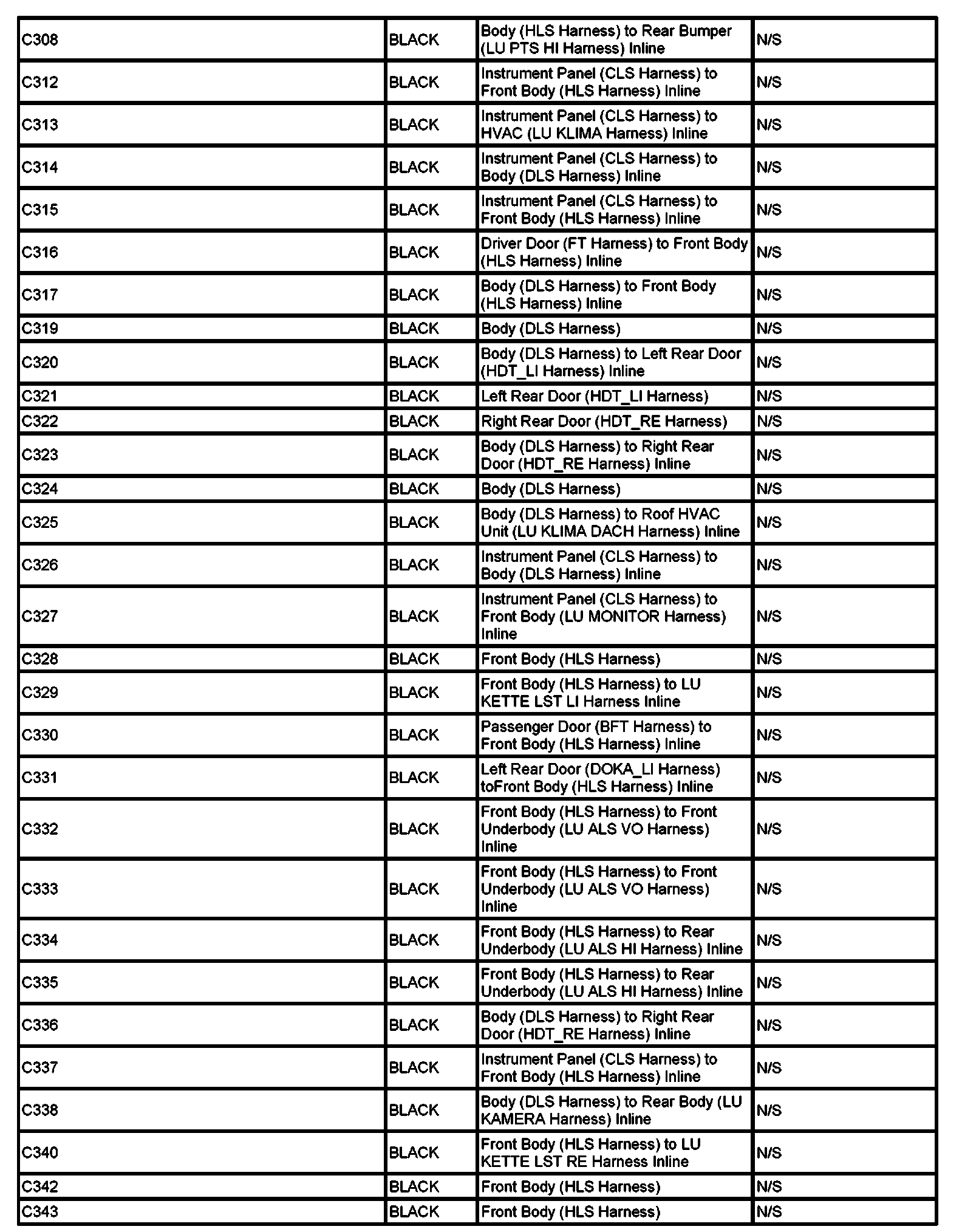

C308-C343:

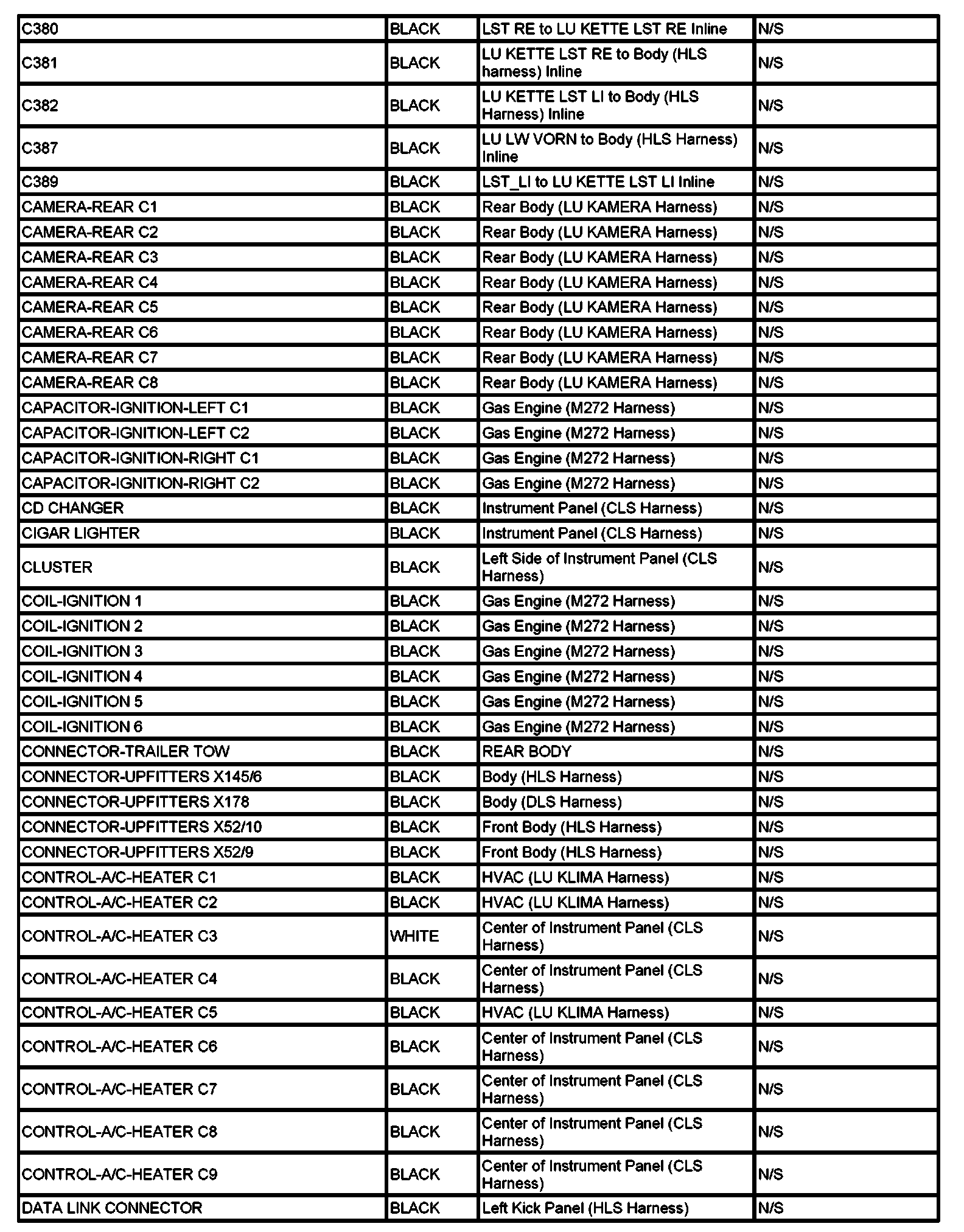

C380-Da:
Di-He:

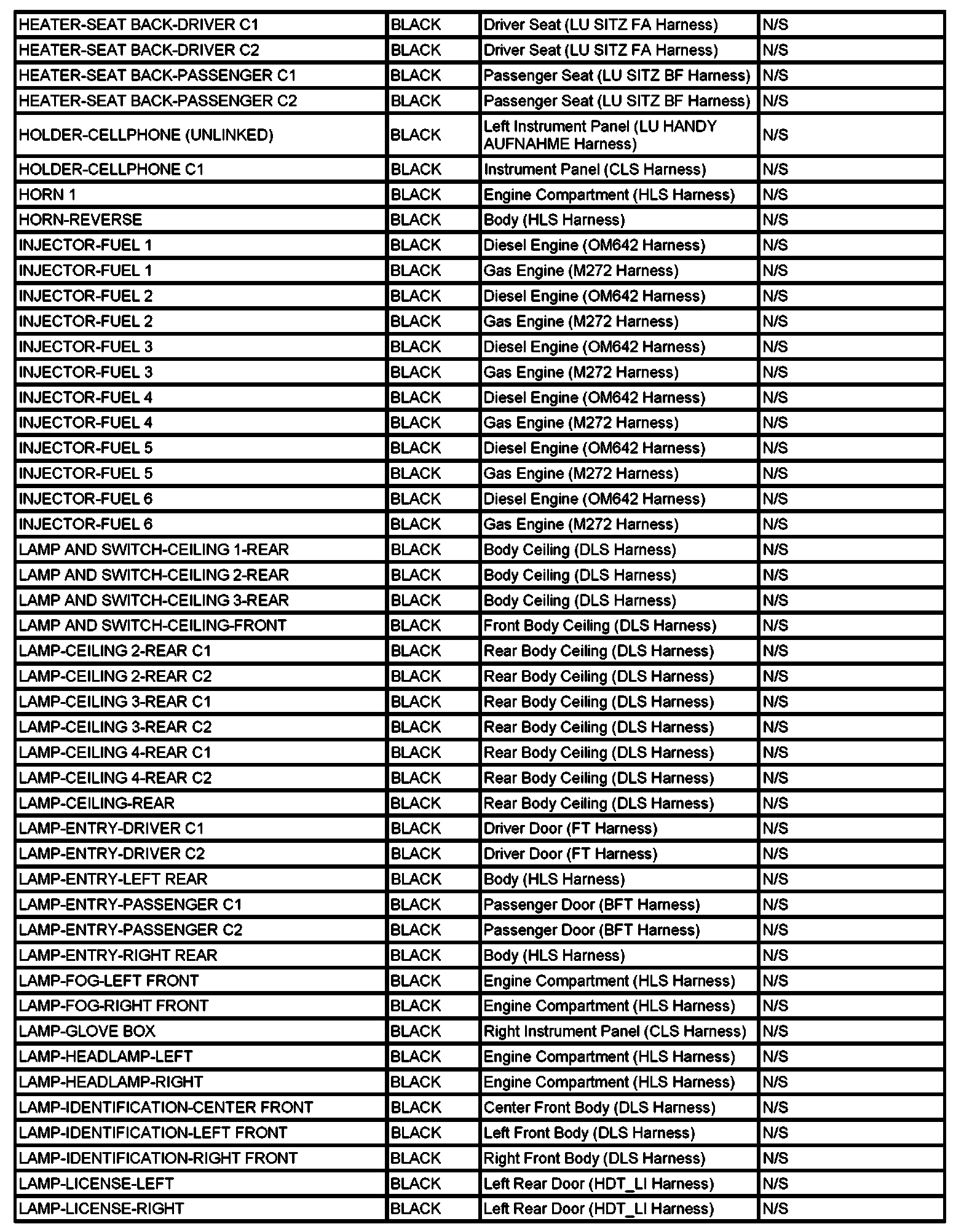

He-La:
La-Mo:
Mo-Pu:

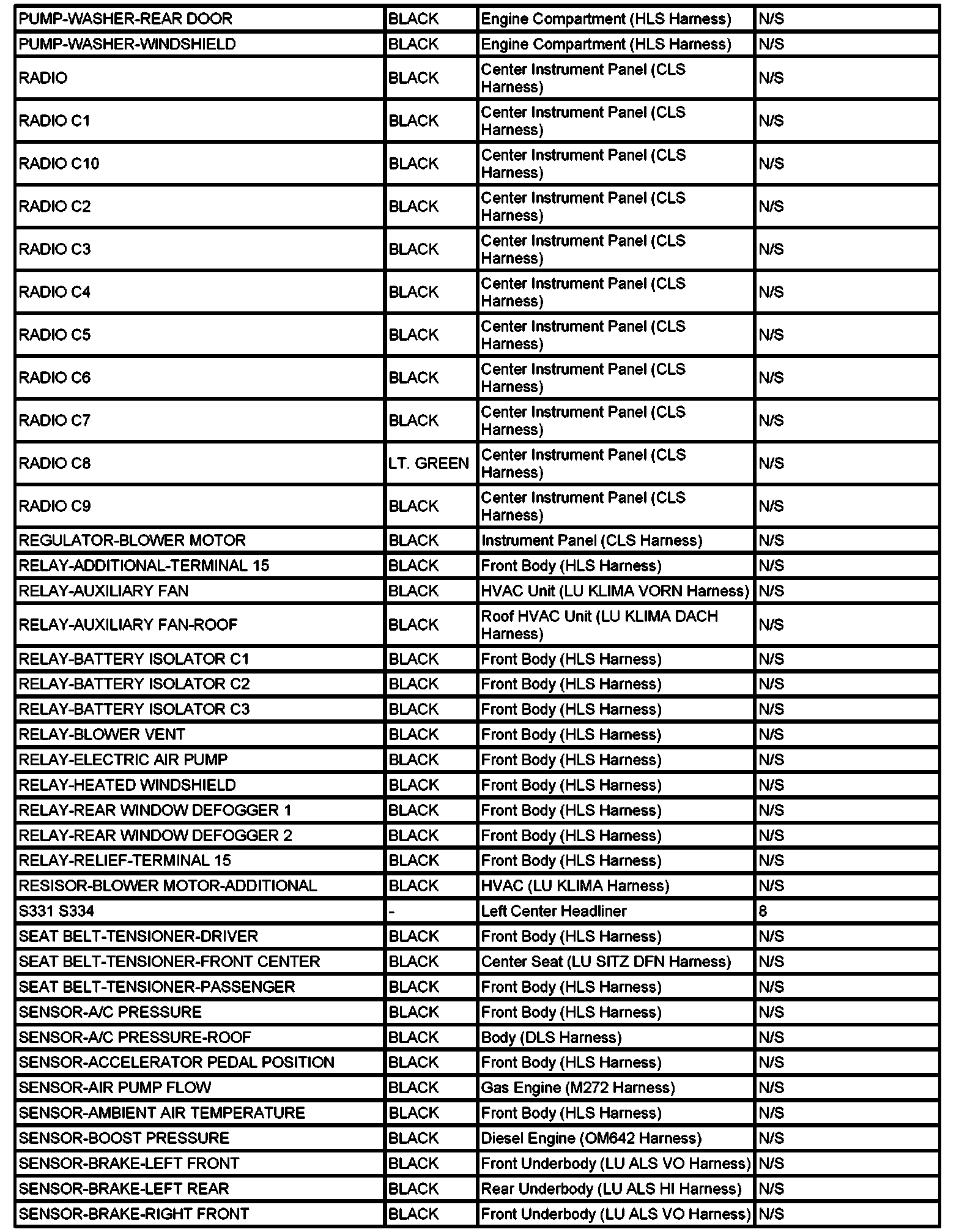

Pu-Se:

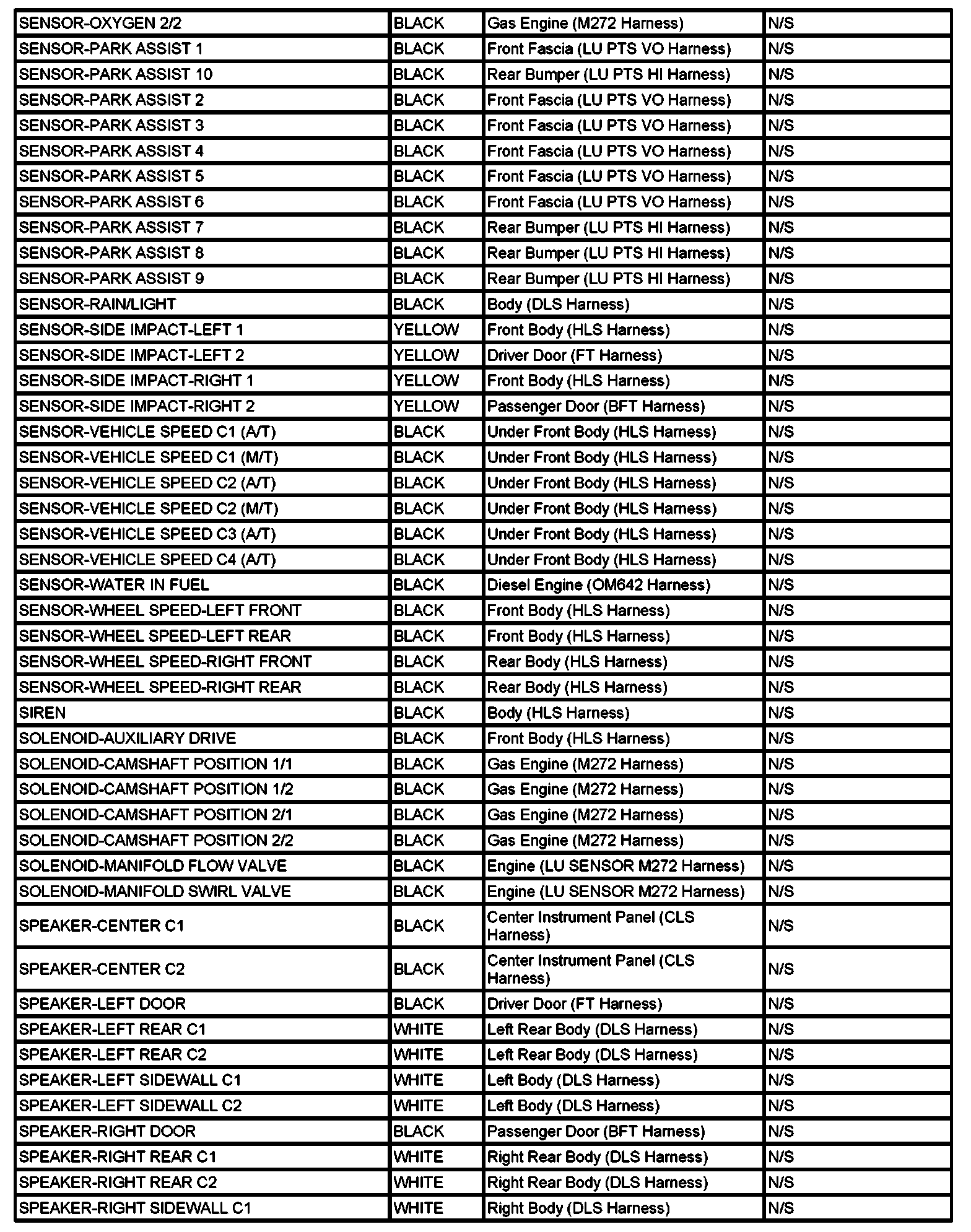

Se-Se:
Se-Sp:
Sp-Va:

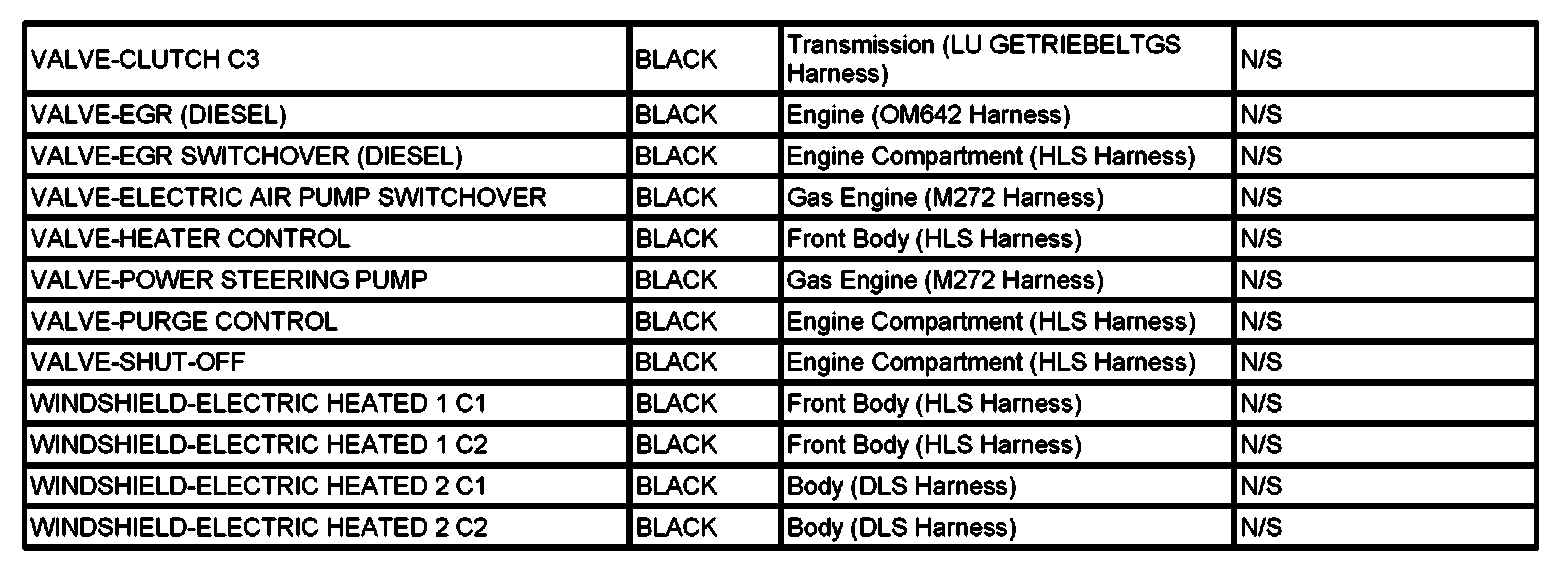

Va-Wi:
