Installation

INSTALLATION




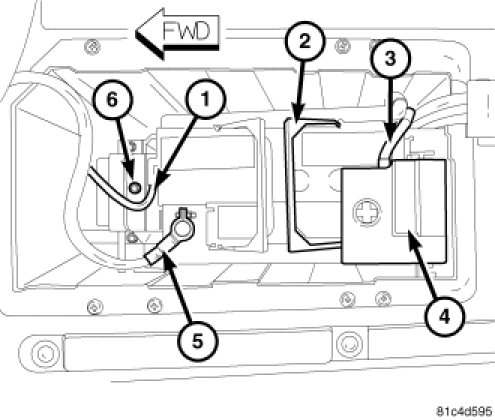

1. Position the Power Distribution Center (PDC) onto the battery positive cable clamp and install the PDC to battery positive cable clamp nut.
2. Install the battery positive cable cover (4).

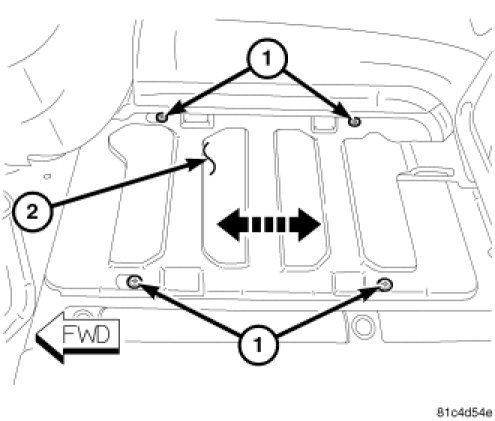

3. Position the battery access cover (2) onto the vehicle floor over the battery compartment and push the cover forward until the screw holes line up.
4. Install the battery access cover screws (1).

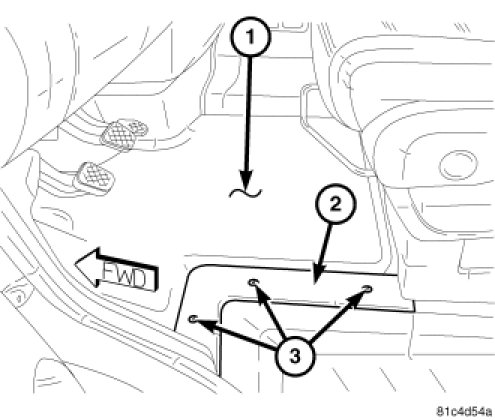

5. Position the front driver floor covering (1) into the vehicle.
6. Position the front door upper sill trim (2) over the floor covering and lower sill trim.
7. Install the front door upper sill trim screws (3).

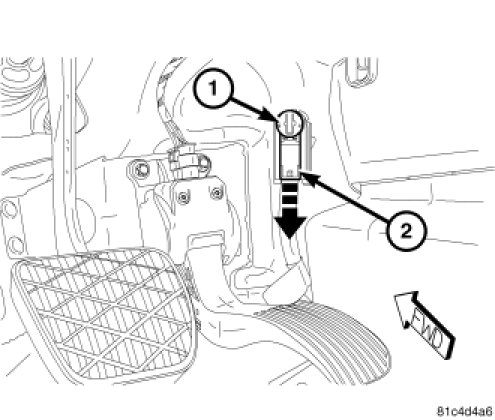

8. Retrieve the isolating connector (1) from under the accelerator pedal and position it onto the grounding stud.
9. Slide the isolating connector locking tab (2) upward to secure the connector to the stud.
