Coolant Temperature Sensor/Switch (For Computer): Diagrams

Component ID: 455
Component : SENSOR-ENGINE COOLANT TEMPERATURE

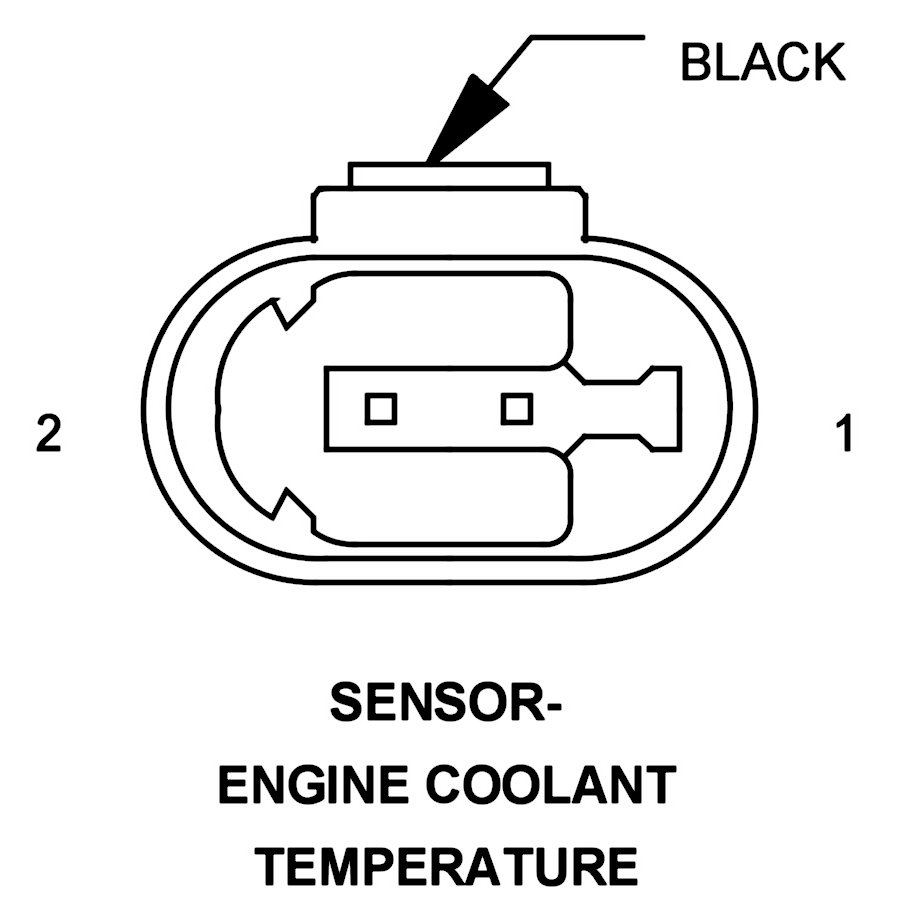

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color : BLACK
# of pins : 2




Pin Description Circuit
1 ENGINE COOLANT TEMPERATURE SENSOR GROUND 1295 20GY/DG
Pin Description Circuit
1 SENSOR GROUND U6102 20BR/DB
2 ENGINE COOLANT TEMPERATURE SENSOR SIGNAL 1294 20DG/RD
2 ECT SIGNAL 1600 20DG/YL
