Park/Neutral Contact






PARK/NEUTRAL CONTACT

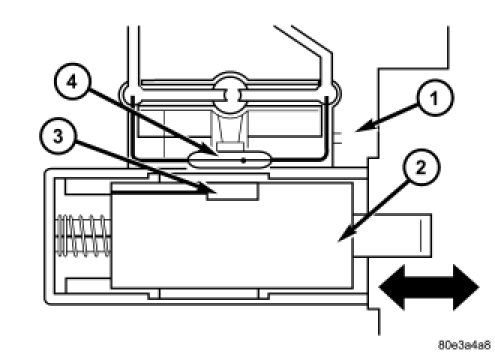

The park/neutral contact (4) is located in the shell of the electric control unit and is fixed to the conductor tracks.


Its purpose is to recognize selector valve and selector lever positions "P" and "N". The park/neutral contact consists of:

- the plunger (2).
- the permanent magnet (3).
- the dry-reed contact (4).
