Service Specifications






BASE BRAKE

NOTE: Do not resurface the disc brake rotors if they are out of specifications. (Sprinter Van Rotors must be replaced with new disc brake rotors only).

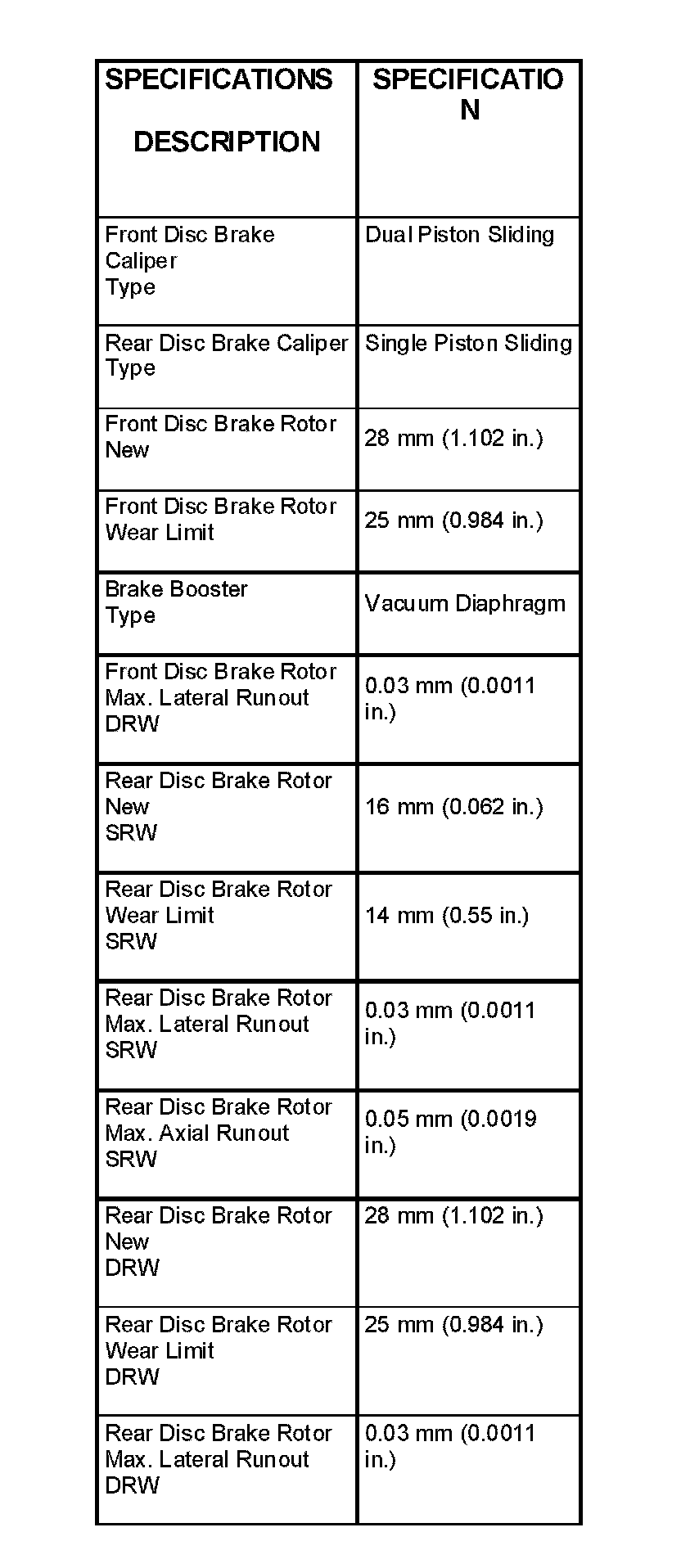

Specifications (Part 1):

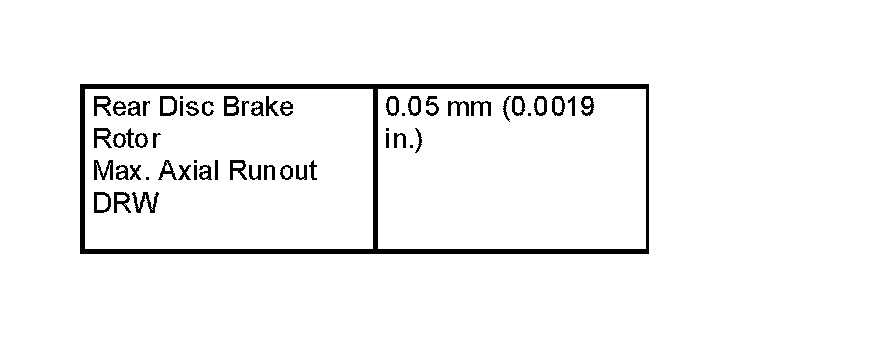

Specifications (Part 2):
